HELLA

Designline LED Module Rear Direction Indicator Lamp

Designline LED Multivolt module designed to update existing bulb type Jumbo or Designline lamps. Features HELLA Ultra Wide Visibility Optics for significantly improved side visibility.

Hella Compatibility Solution HCS
Hella P/N 2146-HCS and 2146-VCS feature HCS Technology, patented indicator failure control technology which allows seamless communication with HELLA HCS control flasher units, or modern European trucks with body controllers compliant with the ISO 13207-1 standard. Please click on HCS above for further information.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

24 LED

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

HELLA Compatibility Solution (HCS)

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

Ultra Wide Visibility Optics

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

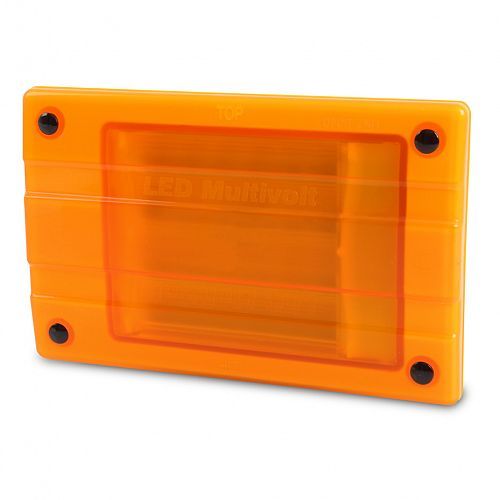

Designline LED Module Rear Direction Indicator Lamp - Horizontal Mount

Designline LED Module Rear Direction Indicator Lamp - Horizontal Mount

2146-H24

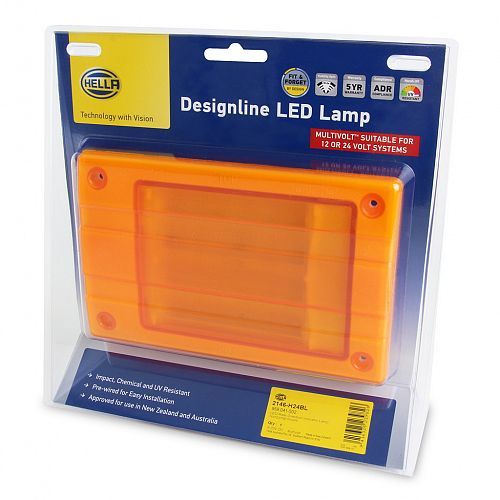

Designline LED Module Rear Direction Indicator Lamp - Horizontal Mount - Blister pack

Designline LED Module Rear Direction Indicator Lamp - Horizontal Mount - Blister pack

2146-H24BL

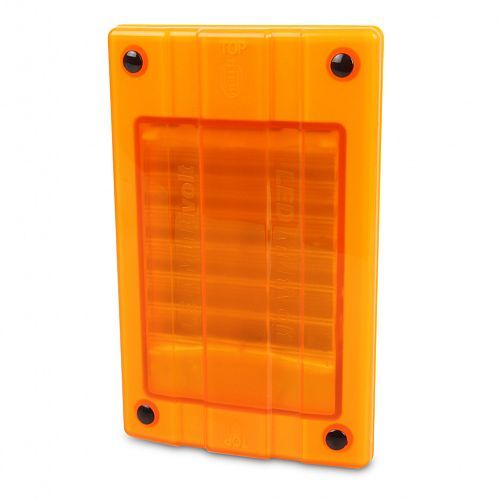

Designline LED Module Rear Direction Indicator Lamp - Vertical Mount

Designline LED Module Rear Direction Indicator Lamp - Vertical Mount

2146-V24
Designline LED Module Rear Direction Indicator Lamp with HCS - Horizontal Mount

Designline LED Module Rear Direction Indicator Lamp with HCS - Horizontal Mount

2146-HCS
Designline LED Module Rear Direction Indicator Lamp with HCS - Vertical Mount

Designline LED Module Rear Direction Indicator Lamp with HCS - Vertical Mount

2146-VCS

Specifications

Mounting

Four point recess mount.

Voltage

Multivolt for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

P/Ns 2146-H24/2146-V24: 6W
P/Ns 2146-HCS/2146-VCS: 4W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS).

Cable Length

Pre-wired with 200mm of cable.

Compliance

ADR 6/00: Cat 2a ISO 13207-1 (2146-HCS or 2146-VCS only)

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2146-H24 2146-V24 Instruction Sheet.pdf 225.37 KB
  2146-HCS 2146-VCS Instruction Sheet.pdf 268.17 KB
