HELLA

Designline LED Module Reversing Lamp

Designline LED Multivolt module designed to update existing Designline lamps.

The high performance module features 36 High Efficacy LEDs that more than triples the raw lumen output over the standard module. High precision optics ensure ADR compliance by focusing the majority of light down ensuring wide illumination and improved safety when reversing.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

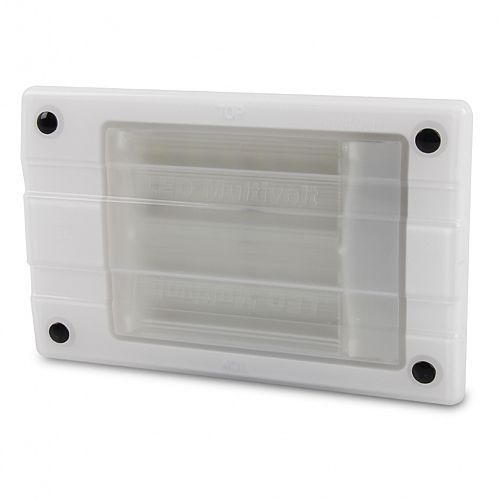

Designline LED Module Reversing Lamp - Horizontal Mount

Designline LED Module Reversing Lamp - Horizontal Mount

1446-H

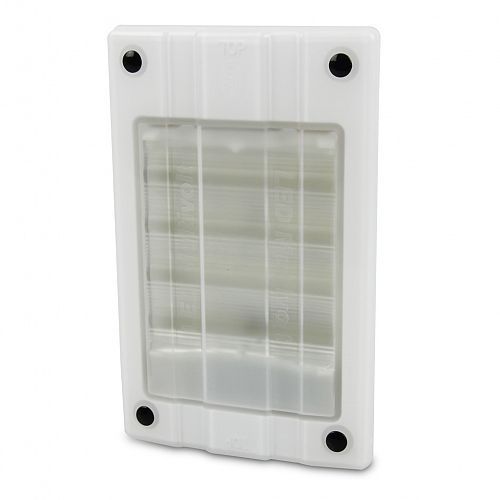

Designline LED Module Reversing Lamp - Vertical Mount

Designline LED Module Reversing Lamp - Vertical Mount

1446-V
Designline LED High Performance 36LED Module Reversing Lamp - Horizontal Mount (Left)

Designline LED High Performance 36LED Module Reversing Lamp - Horizontal Mount (Left)

1447L
Designline LED High Performance 36LED Module Reversing Lamp - Horizontal Mount (Right)

Designline LED High Performance 36LED Module Reversing Lamp - Horizontal Mount (Right)

1447R

Specifications

Mounting

Four point recess mount.

Voltage

Multivolt for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

P/Ns 1446-H/1446-V: 4W
P/Ns 1447L/1447R: 7W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS).

Cable Length

Pre-wired with 200mm of cable.

Compliance

ADR 1/00

Note

Reversing lamps are not designed for continuous operation.

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  1446-H Instruction Sheet.pdf 250.46 KB
  1447L_1447R - Instruction Sheet.pdf 231.27 KB
