HELLA

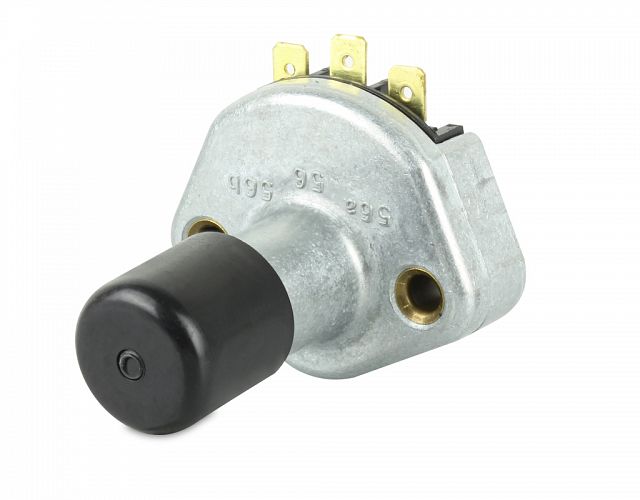

Push Switch On-On Spring Return - Foot Operated Dipper

Push on terminals. Latching spring return mechanism.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Dip Switch - Foot Operated, Spring Return

Dip Switch - Foot Operated, Spring Return

4100

Specifications

Mounting

Surface mounting.

Terminals

3

Maximum load

12V 12A
24V 6A

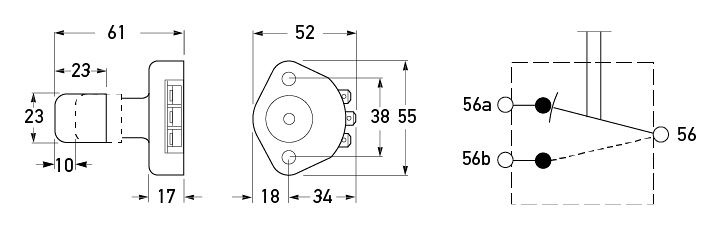

Outline

All dimensions in mm.
All dimensions in mm.

Top
