HELLA

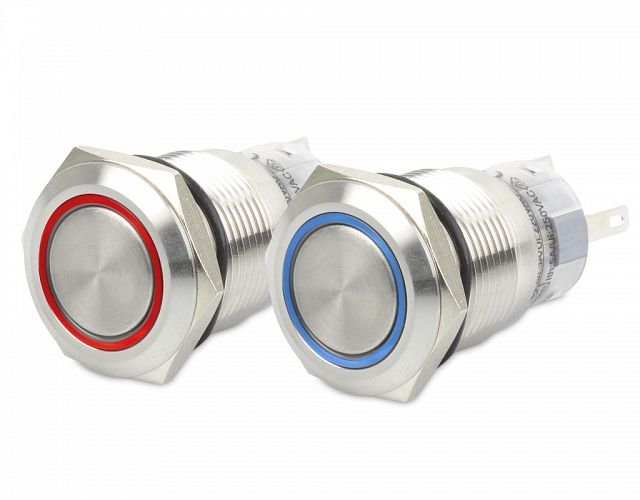

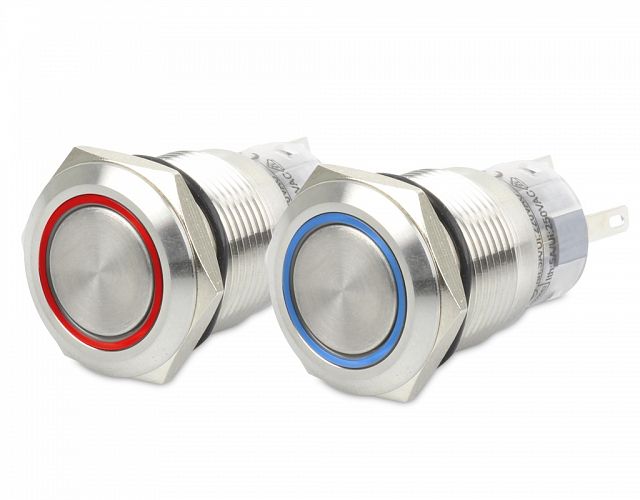

Push Switch Off-(On) Momentary, Stainless Steel - LED Ring

Exterior durable, 304 stainless steel switches featuring a ring of LED light. These through panel mount switches are ideal for switching lighting or installing into custom switch panels. The light rings may be wired to show power to a system or signal circuit activation.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Suitable only for 12VDC applications.

12 Volt

Suitable only for 12VDC applications.

Suitable only for 24VDC applications.

24 Volt

Suitable only for 24VDC applications.

Options

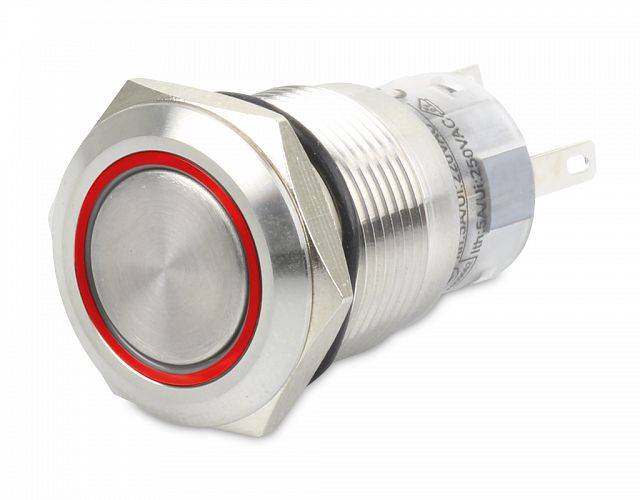

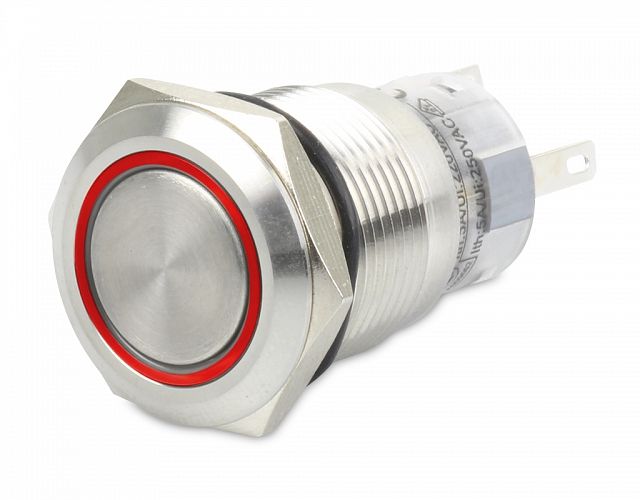

Push Switch Off-(On) Momentary - 12V Red LED Ring

PART NO: 8HG 958 455-201

Push Switch Off-(On) Momentary - 24V Red LED Ring

PART NO: 8HG 958 455-301

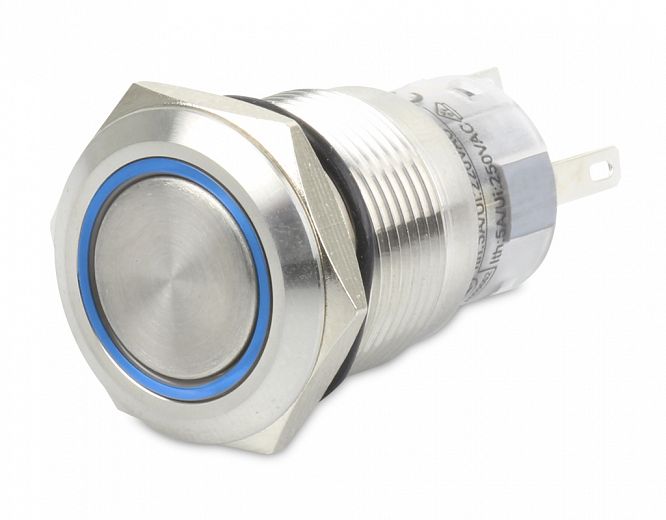

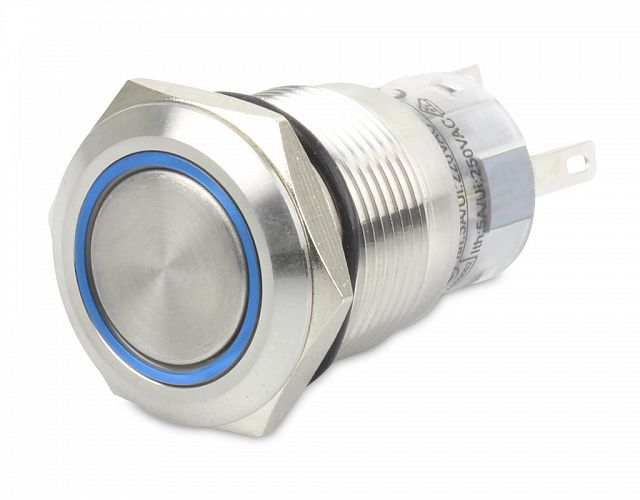

Push Switch Off-(On) Momentary - 12V Blue LED Ring

PART NO: 8HG 958 455-211

Push Switch Off-(On) Momentary - 24V Blue LED Ring

PART NO: 8HG 958 455-311

Specifications

Mounting

19mm diameter opening.

For Panels

1mm to 10mm thick.

Terminals

5 Pin (2.8 x 0.5mm)

Maximum load

5A

Body Material

304 Stainless Steel

Button Material

304 Stainless Steel

Contact Material

Silver Alloy

Operating Temp

-20C to +55C

Insulation Resistance

≥ 1000MΩ

Contact Resistance

≤ 50mΩ

Protection

IP 67 (Protection against dust and temporary water immersion)

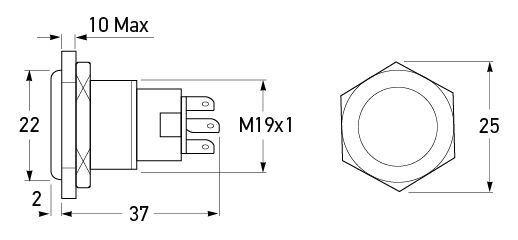

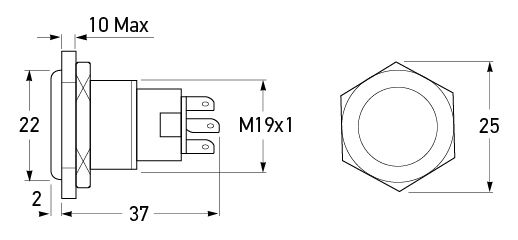

Outline

All dimensions in mm.
All dimensions in mm.
