HELLA

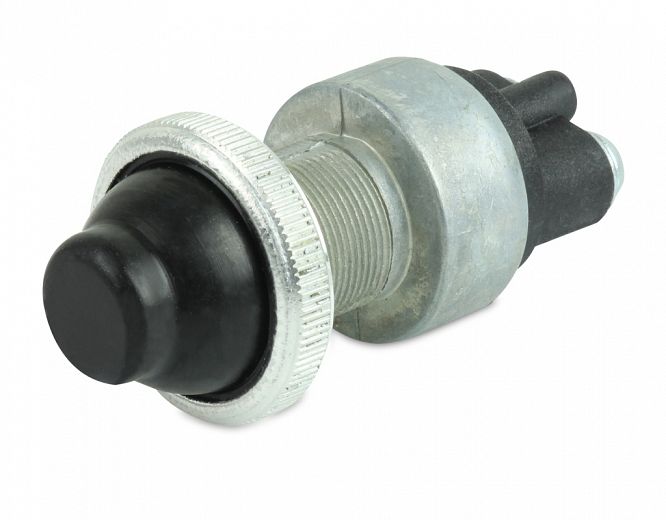

Push Switch Off-(On) Momentary Spring Return - Rubber Cap

Water resistant starter switch. Off-momentary on push button (spring return).

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Push Switch Off-(On) Momentary Spring Return - Rubber Cap

Push Switch Off-(On) Momentary Spring Return - Rubber Cap

4506

Specifications

Mounting

16mm diameter opening.

For panels

Up to 10mm thick.

Terminals

2

Maximum load

12V 60A
24V 40A

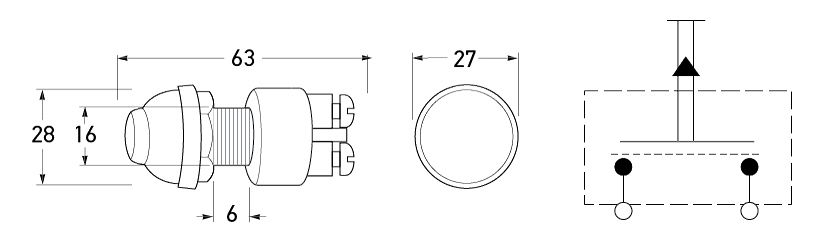

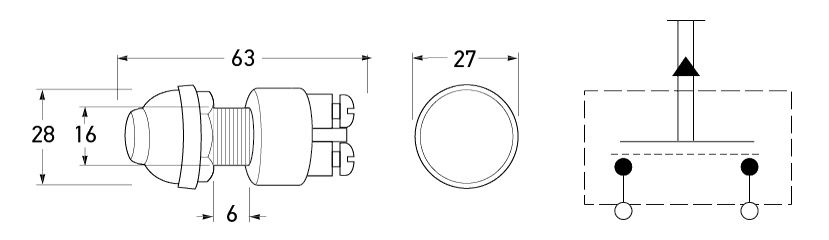

Outline

All dimensions in mm.
All dimensions in mm.
