HELLA

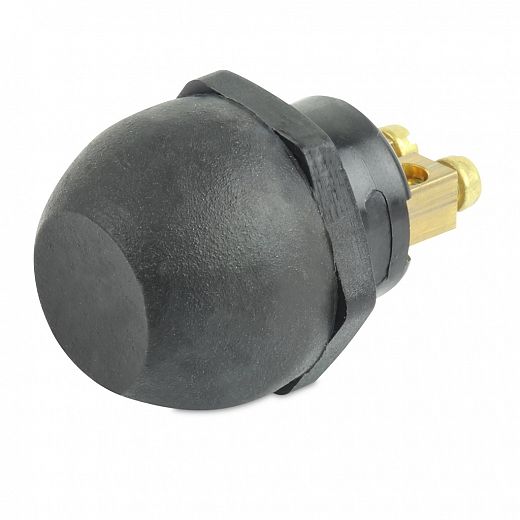

Push Switch Off-(On) Momentary Spring Return - Rubber Top

Water resistant push button type switch with rubber cap. Off-momentary on push button (spring return).

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Push Switch Off-(On) Momentary Spring Return - Rubber Top

Push Switch Off-(On) Momentary Spring Return - Rubber Top

4503

Specifications

Mounting

22.5mm diameter opening.

For panels

Up to 2mm thick.

Terminals

2

Maximum load

12V 16A
24V 8A

Note

Do not remove rubber cap/front face nut when fitting.

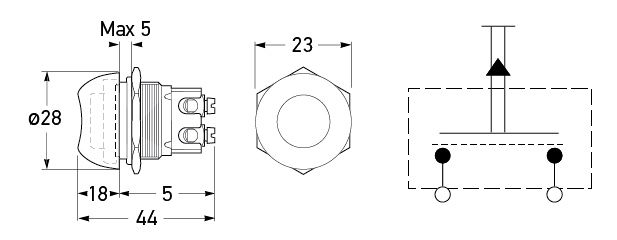

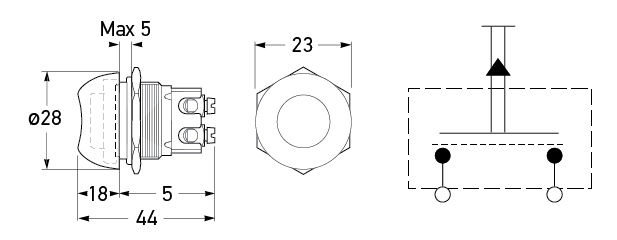

Outline

All dimensions in mm.
All dimensions in mm.
