HELLA

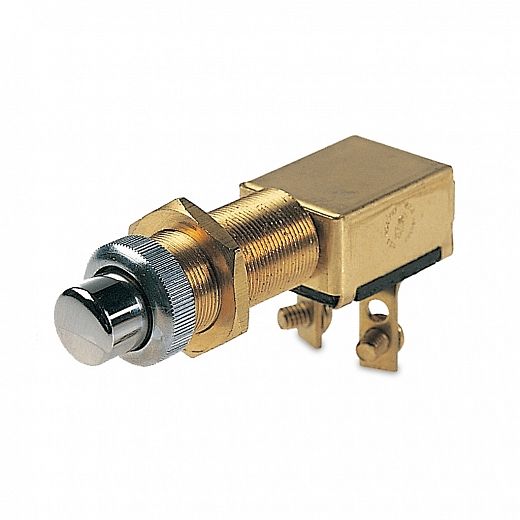

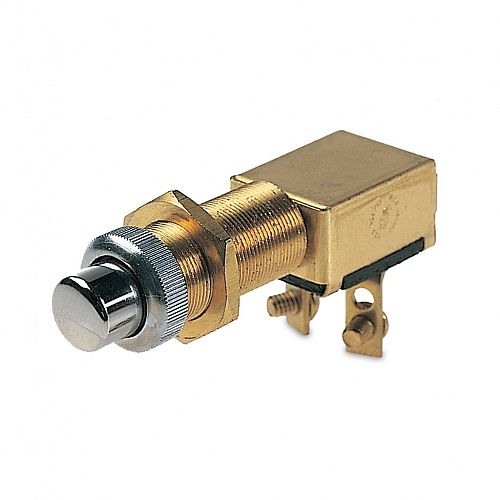

Push Switch Off-(On) Momentary Spring Return - Brass construction

Momentary Spring Return Push Button Starter Switch. Brass construction. Chrome plated face nut and button.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Push Switch Off-(On) Momentary Spring Return - Brass construction

Push Switch Off-(On) Momentary Spring Return - Brass construction

2763

Specifications

Mounting

16mm diameter opening.

For panels

Up to 25mm thick.

Terminals

2

Maximum load

12V 20A
24V 10A

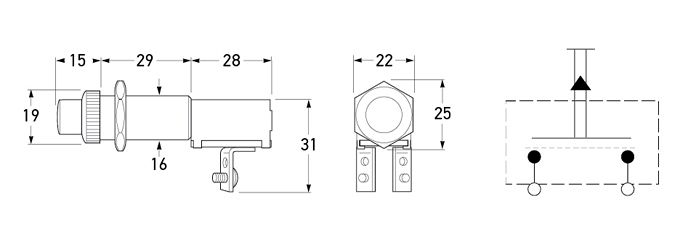

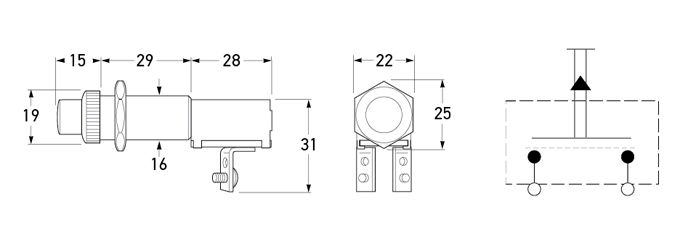

Outline

All dimensions in mm.
All dimensions in mm.

Top
