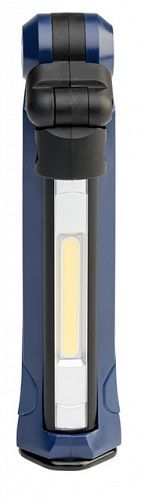

SCANGRIP® Mini Slim LED Inspection Lamp

The SCANGRIP® Mini Slim LED inspection lamp is not only one of the most compact on the market, but it also offers 3 lamps in 1, with two brightness settings for ultimate versatility.

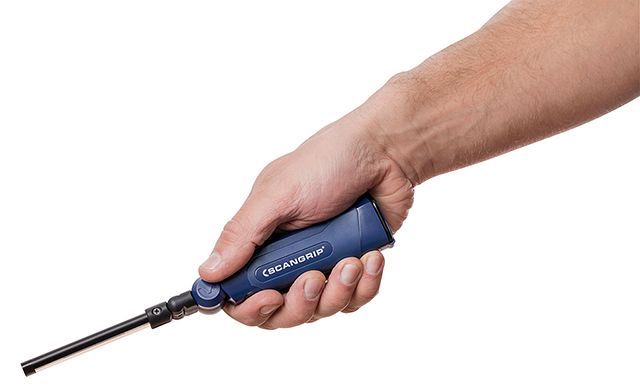

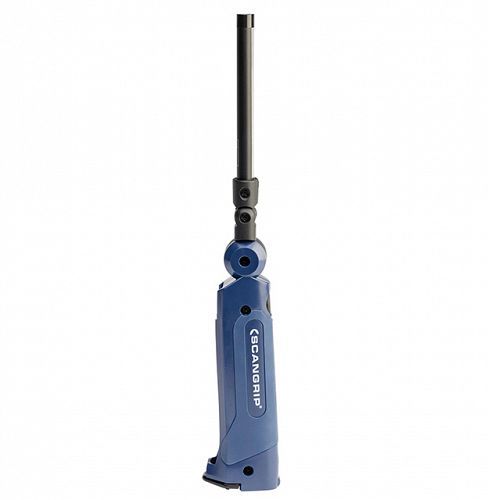

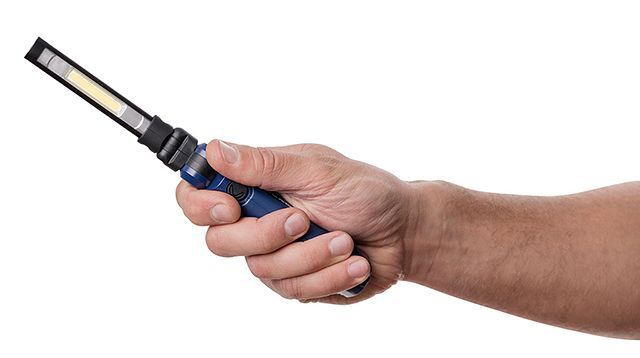

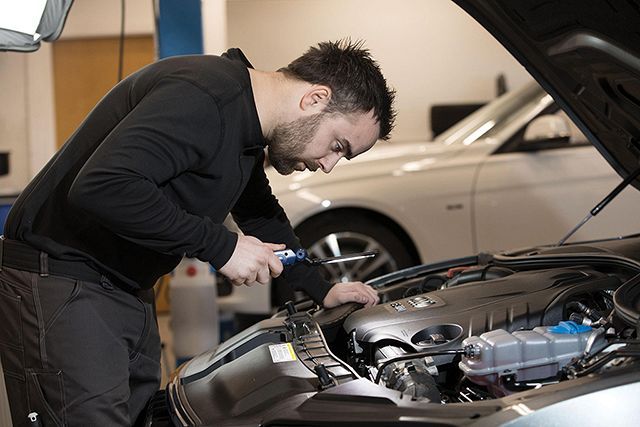

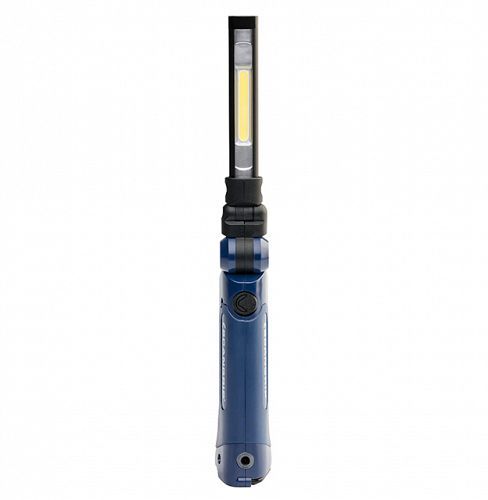

When open, the lamp is an ideal inspection light, perfect for getting into the most inaccessible locations. Folded in half, the lamp can be used as a traditional hand-held work light. When required the inspection lamp can also be used as a powerful flashlight with a handy, comfortable grip. In the folded state, the lamp is reduced to pocket size - compact and portable to take with you everywhere.

This lamp replaces 2XM 910 414-021 LED Inspection Lamp - Mini Slim 3-in-1.

• 3-in-1: inspection light, work light and flashlight
• Rechargeable with up to 5h operating time
• 2 light settings (50% or 100%) to maximise operating time

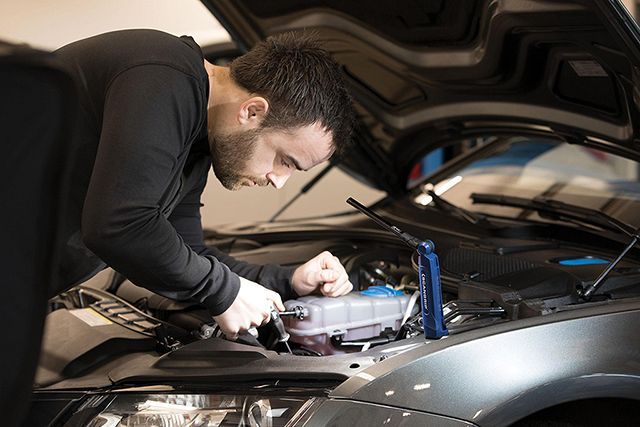

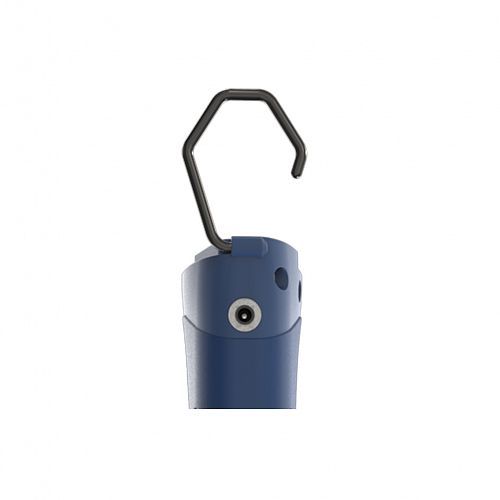

• Strong built-in magnet and hook for flexible positioning

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Battery Powered

Strong Built-in Magnet

Built-in Magnet

Strong Built-in Magnet

2 Year Warranty



PART NO: 035610XX
Legacy PN: 2XM 530 302-229


Light Output

Stage 1: 100 lumen for up to 5 hours
Stage 2: 200 lumen for up to 2.5 hours
Spot: 100 lumen for up to 3 hours

Light Performance

Stage 1: 150 lux @ 0.5m
Stage 2: 400 lux @ 0.5m
Spot: 5200 lux @ 0.5m

Temperature Range

-10° to +40°C


IP 30


132mm x 41mm x 30mm


3.7V/1200 mAh Li-ion rechargeable.
3 hour charging time.

Spare Part

2XM 910 529-141 1m USB charging cable




Includes 1m USB cable
