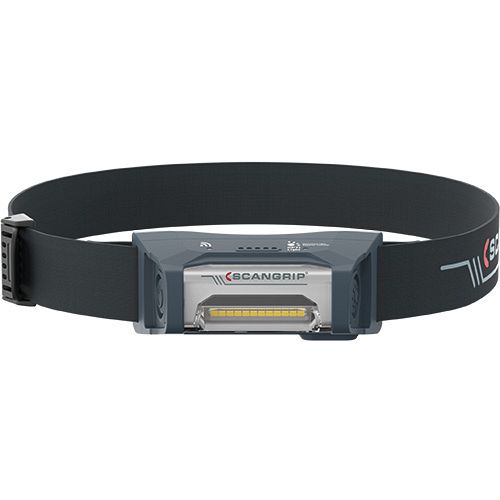

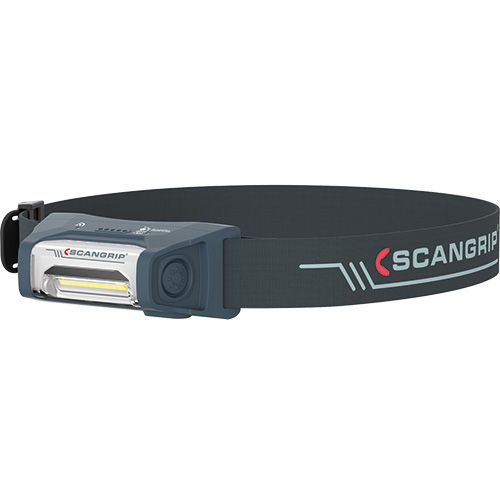

SCANGRIP® I-VIEW 'For Life' LED Inspection Headlamp

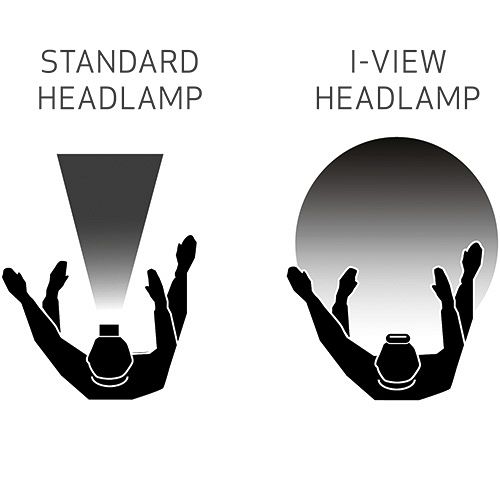

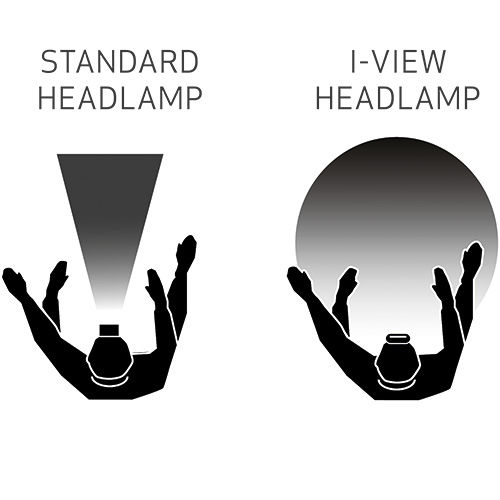

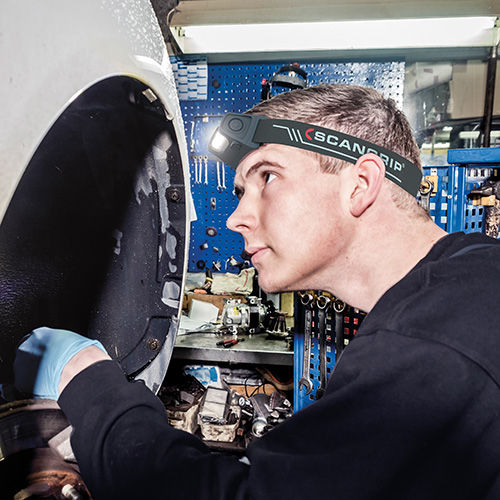

I-VIEW is a powerful USB-C rechargeable LED headlamp designed to provide optimum work light for the professional user, illuminating the entire work area. Once the sensor setting is activated the lamp is turned on and off by simply waving your hand in front of the lamp.

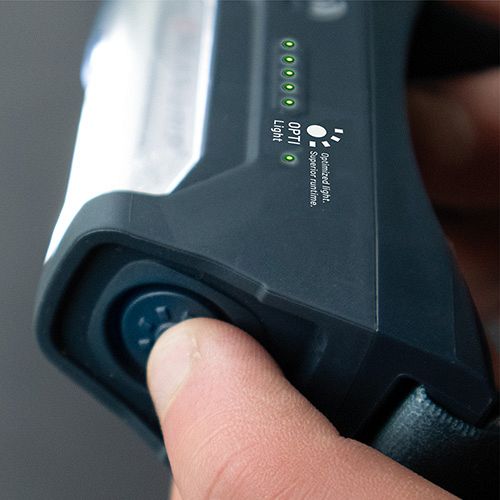

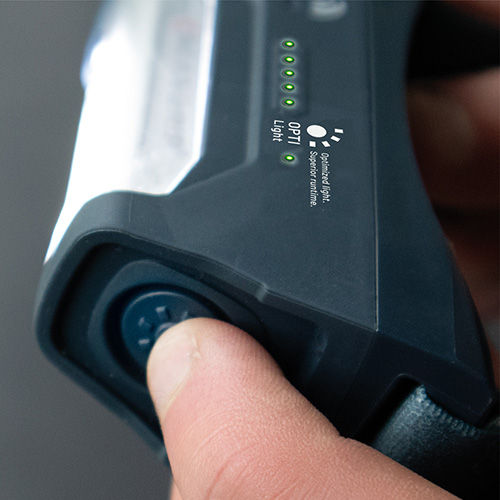

The lightweight (100g) ergonomically designed inspection headlamp features a stepless dimmer function from 10% (40lm) to 100% (400lm) light output. A user-friendly battery indicator provides convenient visibility of the remaining battery life.

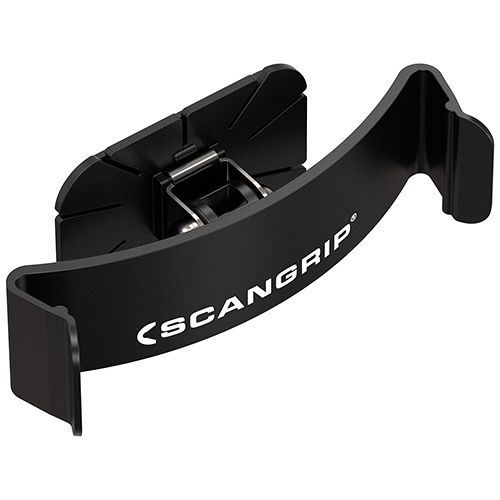

For increased operating time, the optional 035782 4000mAh Powerbank Accessory (Not included) can be connected. Simply attach the Powerbank to the head band via the enclosed flexible clip holder and connect the cable to the headlamp.

This lamp replaces 035626 LED Inspection Lamp - I-VIEW Headlamp.

• Powerful, USB-C rechargeable headlamp
• Stepless dimmer adjustment
• 20% more efficient than previous model
• High power LEDs
• Touchless sensor switch
• Dust and waterproof
• Natural light – colour similar to daylight
• Strong, sturdy and resistant to water, oil and chemicals



Scangrip 'For Life' Design
A pioneering approach that focuses on reinventing the design and functionality of LED work lights and optimizing energy efficiency to the utmost.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Battery Powered

Options

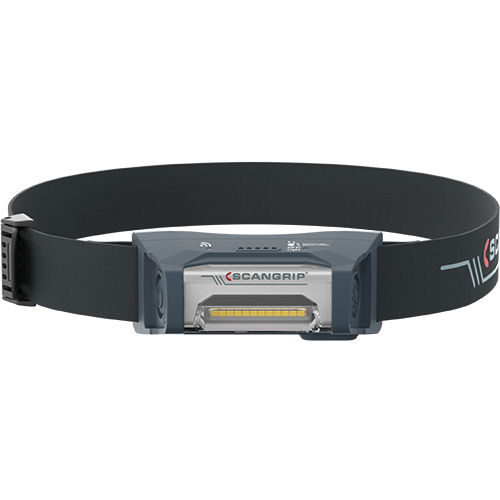

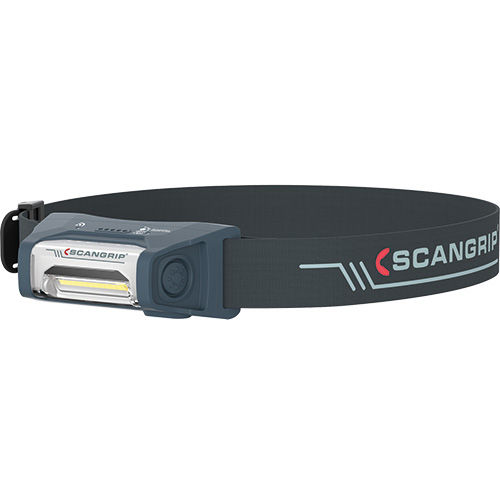

I-VIEW LED Inspection lamp

PART NO: 036212

Specifications

Light Output

LO 40 lumen for up to 21 hours
OPTILight 4 hours
HI 400 lumen for up to 2 hours

Light Performance

LO 100 lux @ 0.5m
OPTILight 500 lux @ 0.5m
HI 1000 lux @ 0.5m

Temperature Range

-10° to +40°C

Protection

IP 65 (Protection against dust and water jets)

Dimensions

99mm x 50mm x 40mm

Battery

3.7V/1400 mAh Li-ion.
4.5 hour charging time

Compliance

CE

Note

Includes 1m USB-A to USB-C cable

Accessory

035782 4000mAh Powerbank
