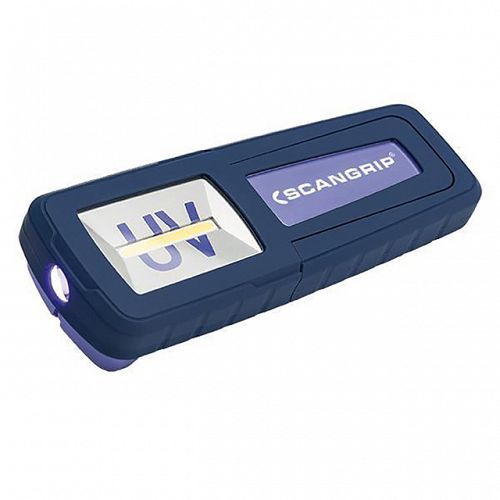

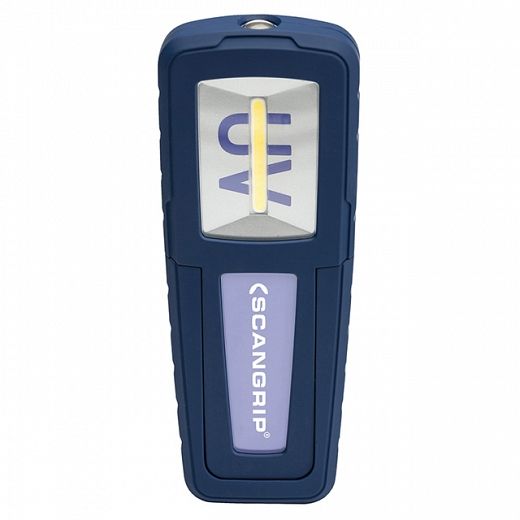

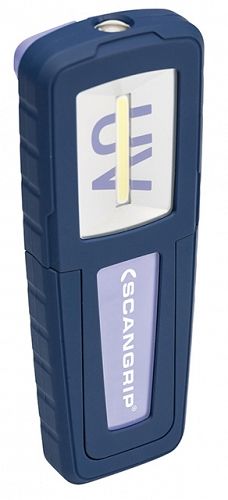

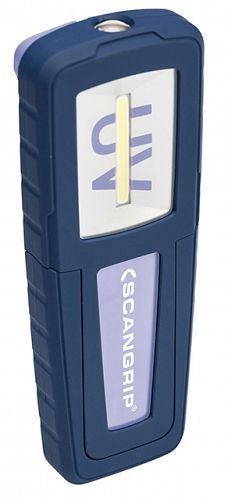

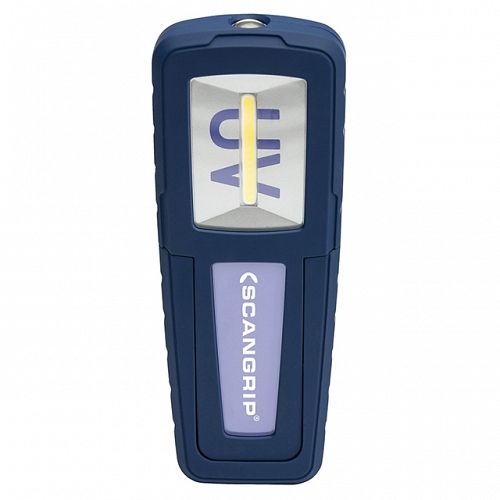

SCANGRIP® UV Form LED Inspection Lamp

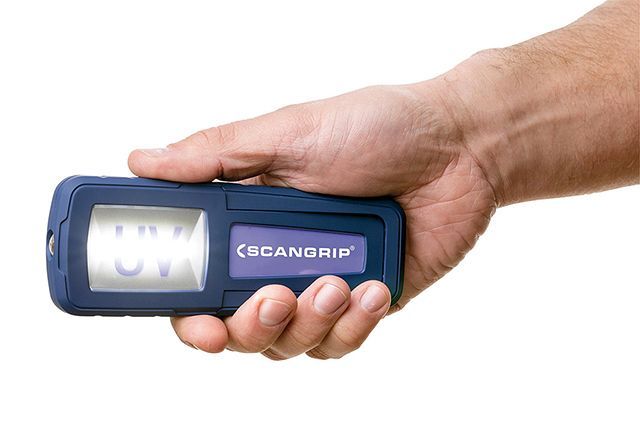

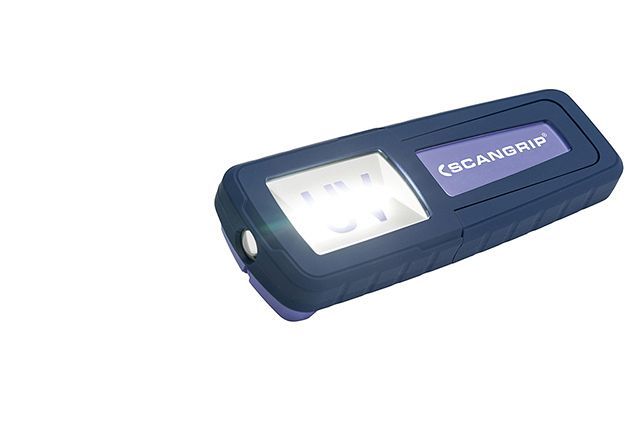

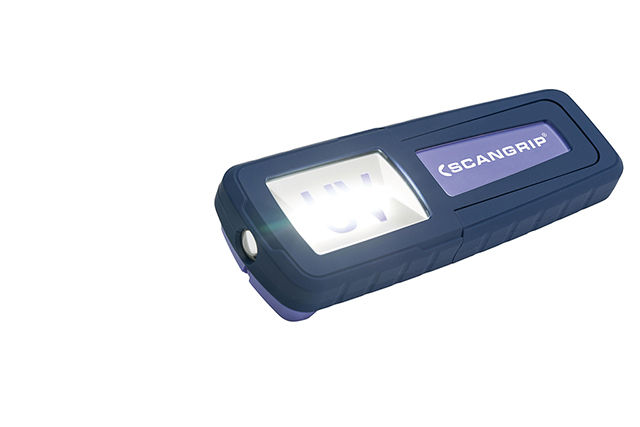

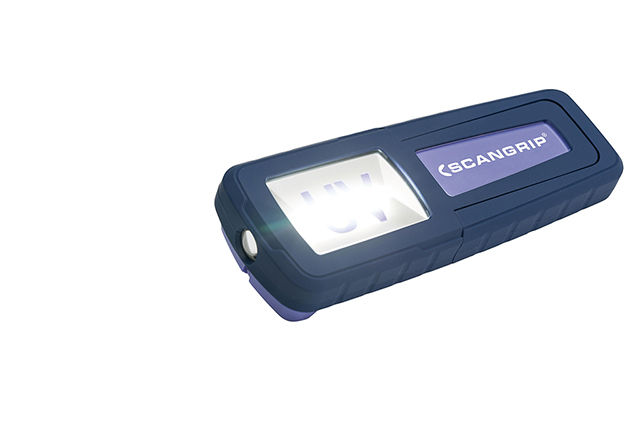

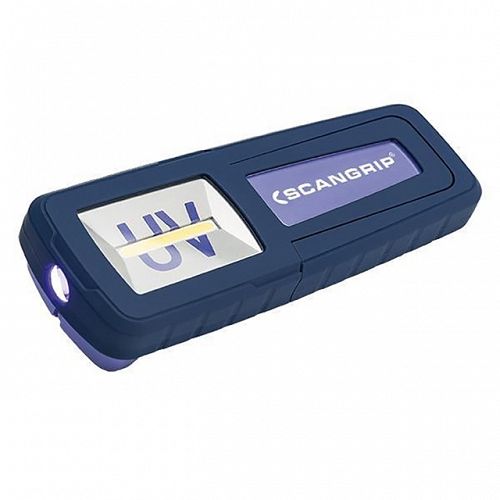

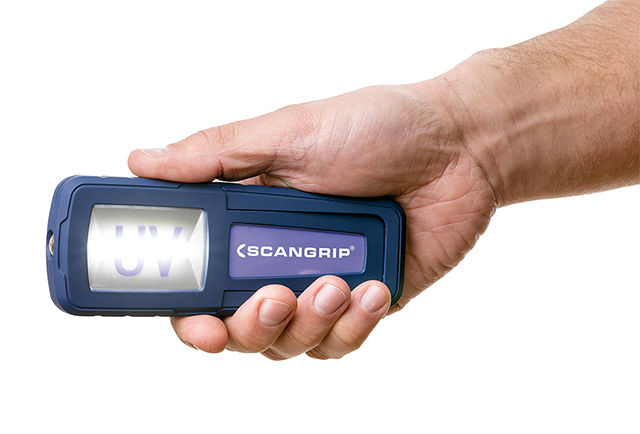

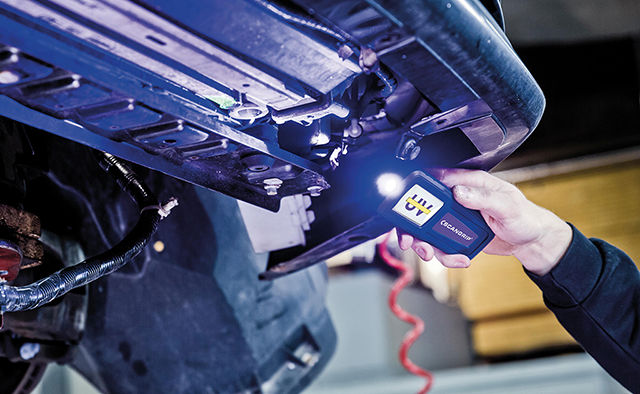

UV-Form is a rechargeable LED inspection lamp with a powerful 3W UV-light on the top. The inspection lamp is also fitted with the new COB LED strip light providing a unique powerful and completely uniform illumination.

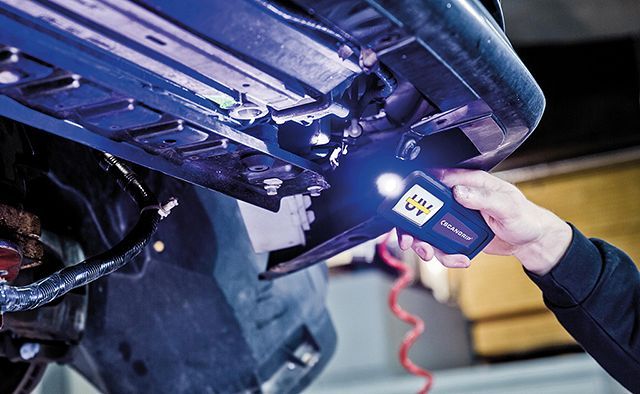

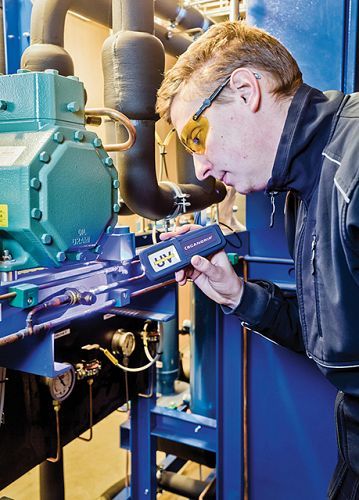

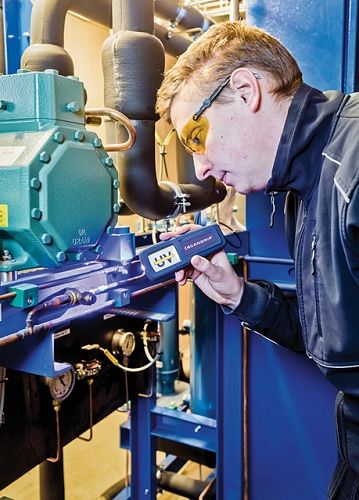

Being a universal work lamp and UV detection in one, the multifunctional tool replaces special UV detection lights. The ultraviolet light is intended for leak detection in air-conditioning systems by means of trace elements but can also be useful in larger, complex refrigeration/freezing appliances, process-cooling systems, heat pumps systems etc.

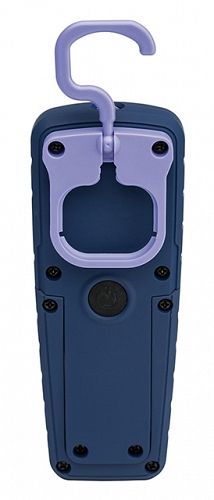

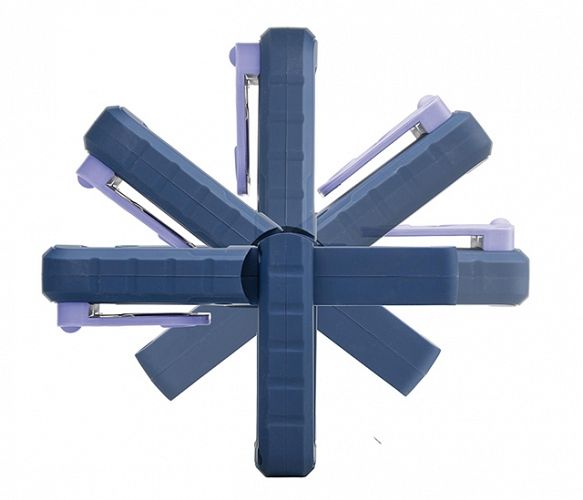

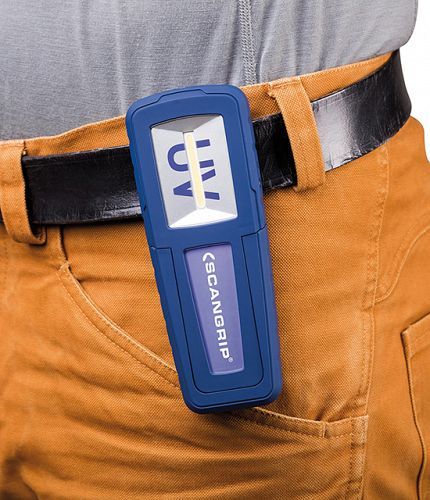

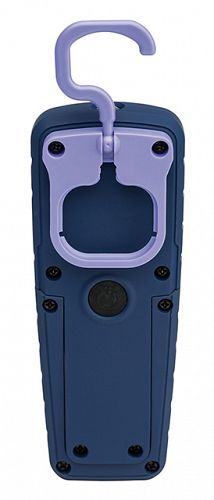

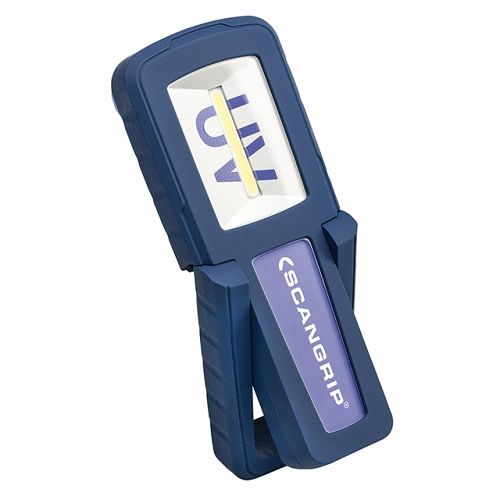

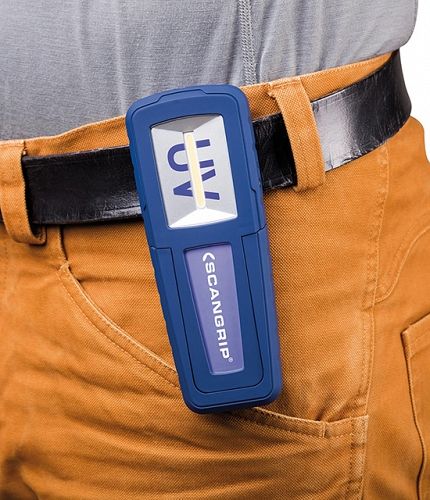

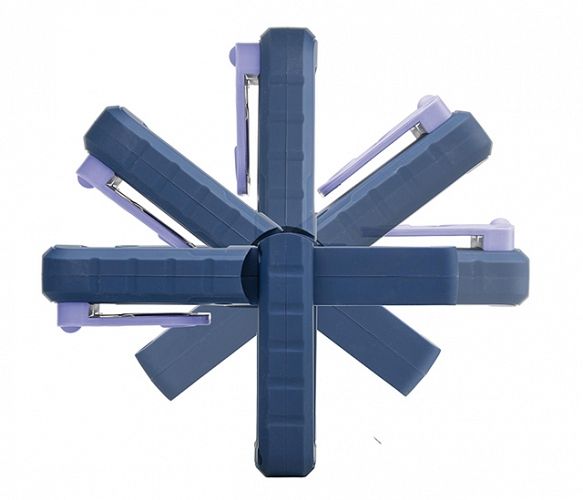

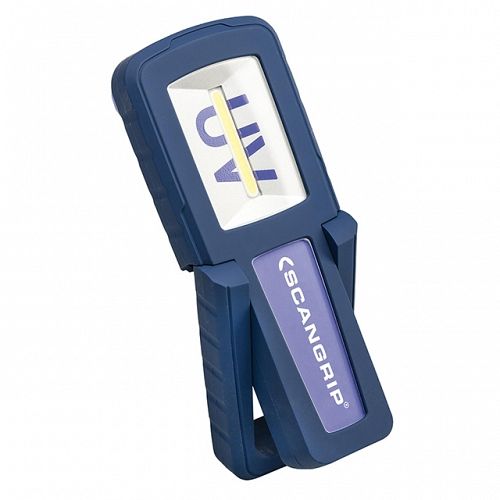

The UV-Form’s flexible lamp head tilts up to 180 degrees. The indispensable multi-tool lamp is supplied with a strong built-in magnet for easy positioning in the work-space and designed to fit a work belt.

This lamp replaces 2XM 910 606-001 LED Inspection Lamp - UV-Form.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Battery Powered

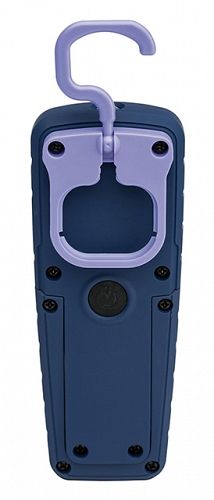

Strong Built-in Magnet

Built-in Magnet

Strong Built-in Magnet

2 Year Warranty

Options

SCANGRIP® UV Form

PART NO: 2XM 530 302-230
Legacy PN: 035408XX

Specifications

Light Output

Stage 1: 125 lumen for up to 5 hours
Stage 2: 250 lumen for up to 5 hours
Spot UV

Light Performance

Stage 1: 200 lux @ 0.5m
Stage 2: 400 lux @ 0.5m
Spot: UV

Temperature Range

-10° to +40°C

Protection

IP 20

Dimensions

157mm x 59mm x 31mm

Battery

3.7V/1600 mAh Li-ion rechargeable.
3 hour charging time.

Compliance

CE

Note

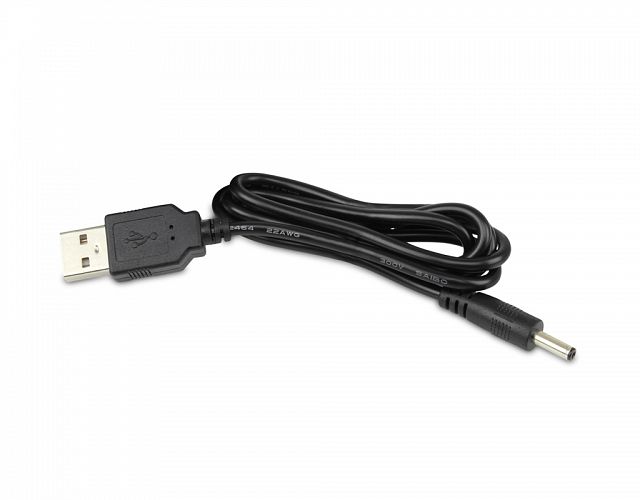

Includes 1m USB cable. Do not operate UV light without eye protection.
