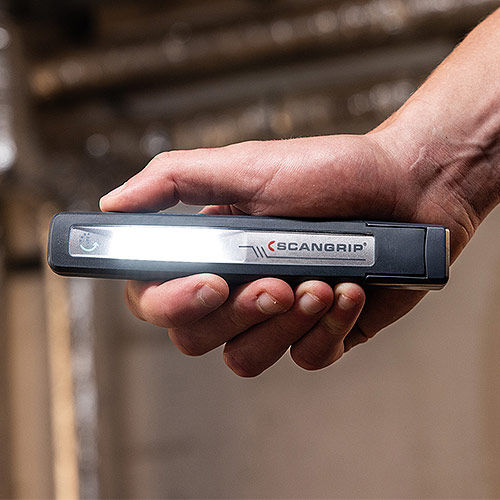

SCANGRIP® UNIPEN LED For Life Inspection Lamp

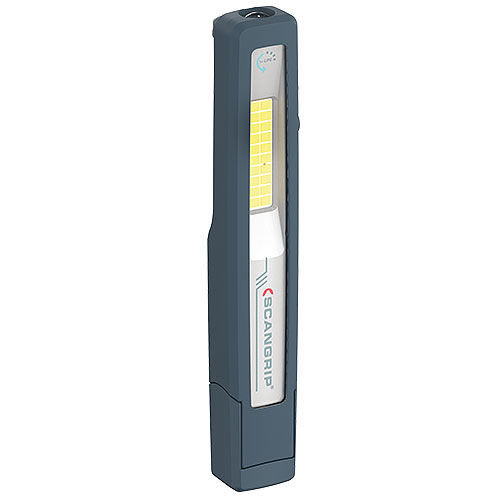

UNIPEN is an energy-efficient, USB-C rechargeable, dual light mini inspection lamp with a top spot light, perfect to always have “on hand”.

UNIPEN main light offers an adjustable output up to 150 lumen. The top spotlight provides a focused beam of 75 lumen — ideal when you need a concentrated light source.

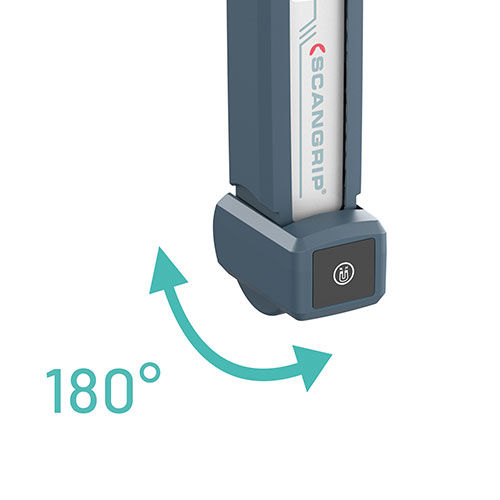

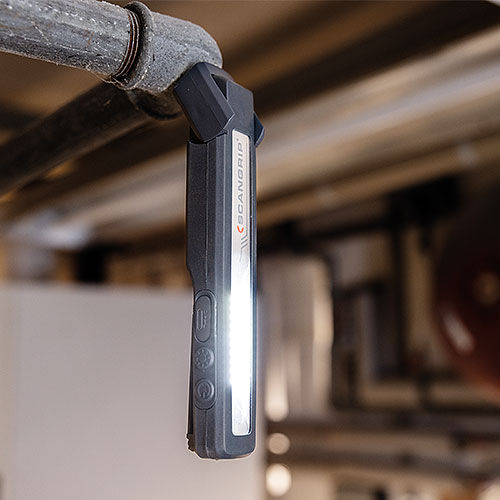

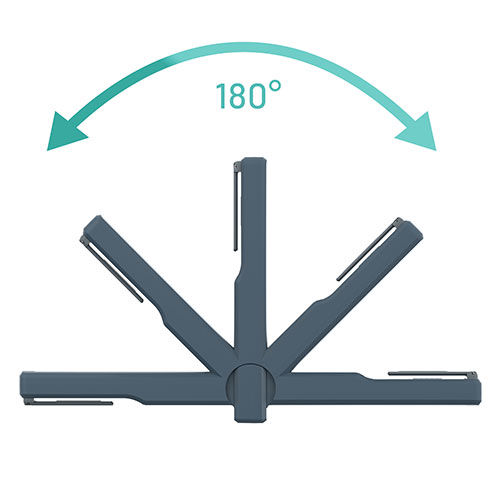

Designed to perform consistently in tough work environments, UNIPEN is durable and resistant to water and dust (IP65). It features a built-in magnet for easy, hands-free positioning and a pocket clip for convenient carrying. In addition, the small flexible bracket enables the lamp head to tilt up to 180 degrees.

A user-friendly battery indicator keeps you informed about the battery level, and charging is via convenient USB‑C.

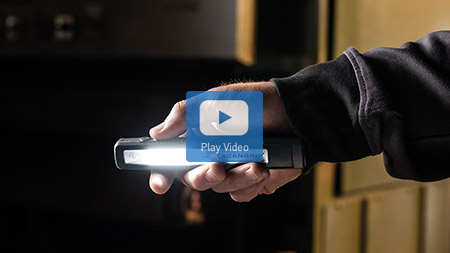

Scangrip UNIPEN Video Image

This lamp replaces 035420 UNIPEN LED Inspection Lamp.

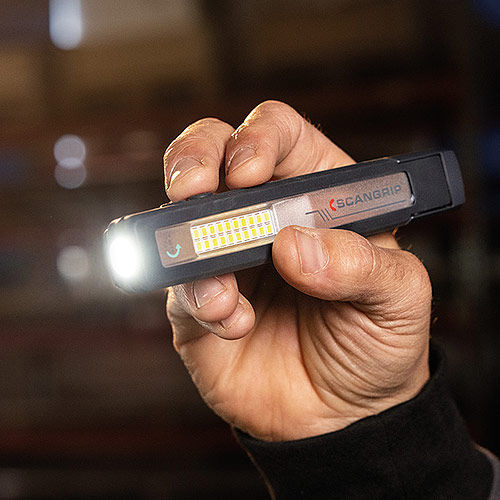

• Two torches in one
• Increased light output

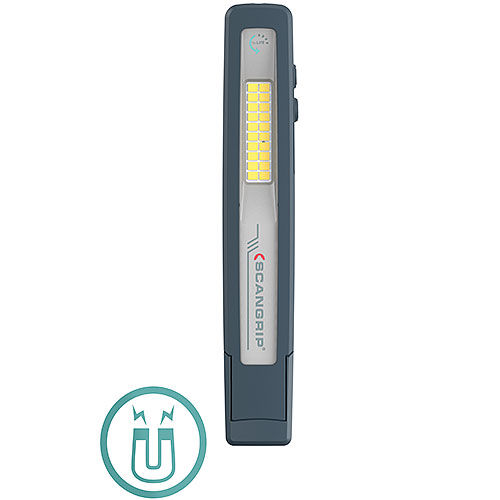

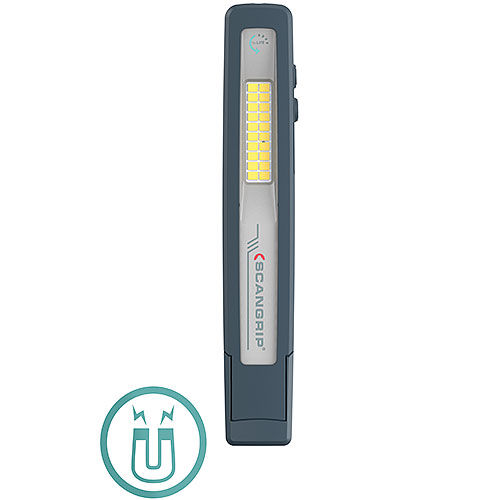

• Strong built-in magnet
• Natural light – colour similar to daylight
• Impact and shock resistant
• Charging via USB-C

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Battery Powered

Strong Built-in Magnet

Built-in Magnet

Strong Built-in Magnet

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

SCANGRIP UNIPEN Inspection Lamp

PART NO: 036209

Specifications

Light Output

Main: 15-150 lumen for up to 22/3 hours.
Spot (Top): 75 lumen.

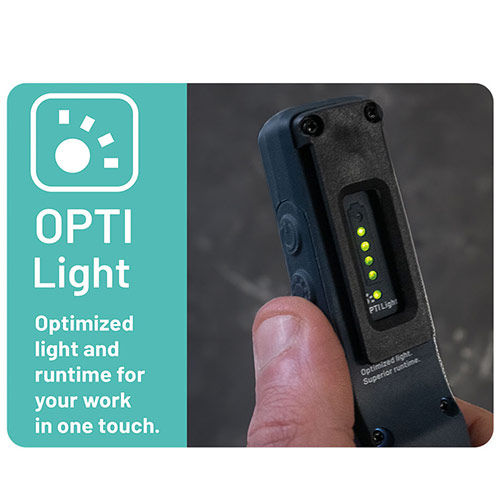

OPTILight setting: Up to 5.5 hours

Light Performance

OPTILight setting: 500 lux @ 0.25 m

Temperature Range

-10° to +40°C

Protection

IP65 (Protection against dust and water jets)

Dimensions

155mm x 27mm x 21mm

Battery

3.7V/800 mAh Li-ion rechargeable.
2.5 hour charging time via USB.

Compliance

CE

Note

Includes 1m USB-A to USB-C cable. Note charger is not included.

Documents

Document File Name File Size
  036209 SCANGRIP UNIPEN For Life Update Release.pdf 453.70 KB
  03.6209-unipen-for-life-manual.pdf 5.51 MB
