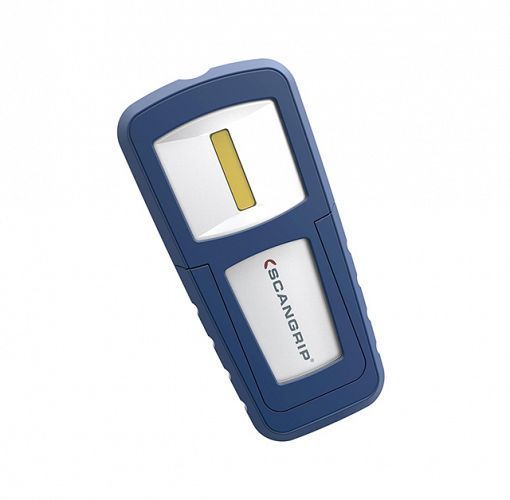

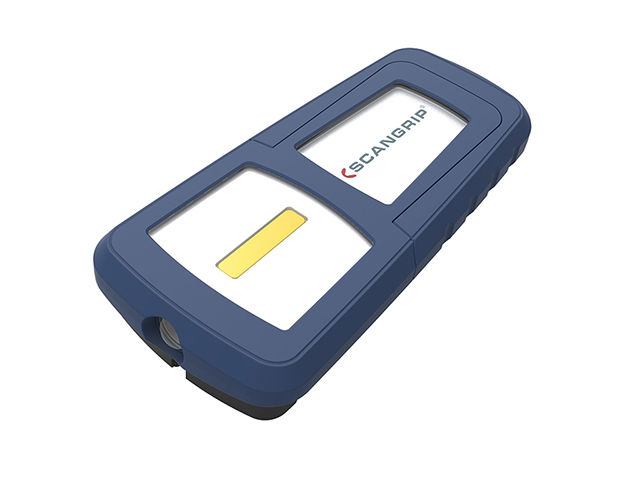

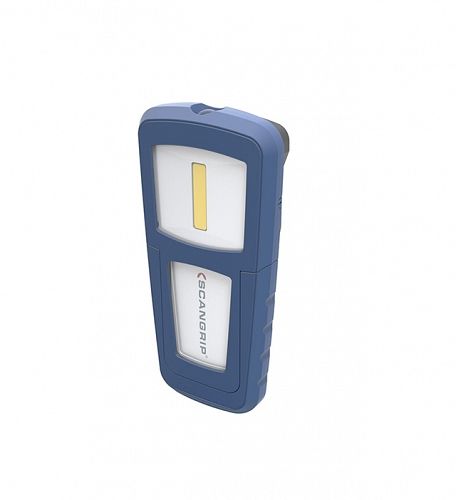

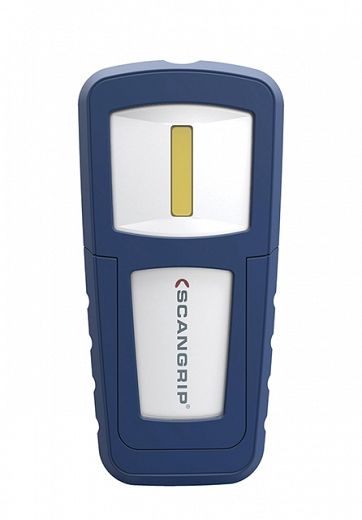

SCANGRIP® Miniform LED Inspection Lamp

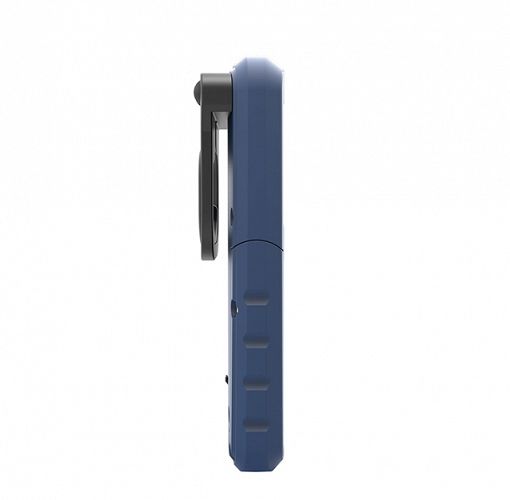

The SCANGRIP® Miniform is a multifunctional pocket sized rechargeable LED inspection lamp. Featuring a dual brightness main light and the addition of a new spot light, the Miniform has a strong magnetic base, retractable swivel hook and a flexible 180° head tilt for powerful uniform lighting at any angle.

SCANGRIP® LED Inspection Lamps have been designed with the workshop in mind. With high power efficient LEDs providing evenly spread natural light; a range of styles designed for a variety of situations; and construction to last – SCANGRIP® Inspection Lamps will be your most valued workplace tool.

This lamp replaces 2XM 910 415-001 LED Inspection Lamp - Miniform Ultra Slim.

• High power LEDs
• 60% brighter
• New top spot light
• Bigger battery
• Strong built-in magnet

• Easy to use
• Impact and shock resistant
• Natural light – colour similar to daylight
• Low current consumption, high efficacy
• Strong, sturdy and resistant to water, oil and chemicals

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Battery Powered

Strong Built-in Magnet

Built-in Magnet

Strong Built-in Magnet

2 Year Warranty


SCANGRIP® Miniform

PART NO: 035404XX
Legacy PN: 2XM 530 302-232


Light Output

Stage 1: 100 lumen for up to 6 hours
Stage 2: 200 lumen for up to 2.5 hours
Spot: 75 lumen for up to 6 hours

Light Performance

Stage 1: 100 lux @ 0.5m
Stage 2: 200 lux @ 0.5m
Spot: 800 lux @ 0.5m

Temperature Range

-10° to +40°C


IP 65


121mm x 59mm x 27mm


3.7V/1600 mAh Li-ion rechargeable.
3 hour charging time.
