HELLA

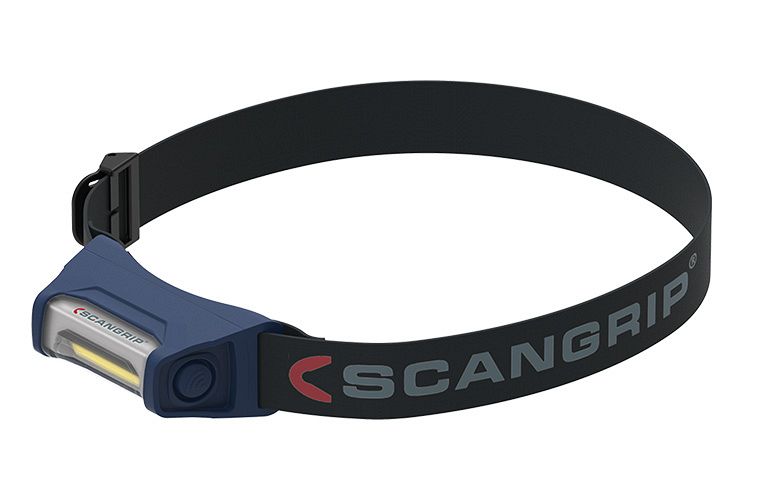

SCANGRIP® I-VIEW LED Inspection Headlamp

The latest I-View Inspection Headlamp offers superior hands-free illumination, now with 60% more light. This inspection lamp is designed for professional users, illuminating the entire work space and not just the area the lamp is pointed at. Once the sensor setting is activated the lamp is turned on and off by simply waving your hand in front of the lamp.

The lightweight (100g) ergonomically designed inspection headlamp features a stepless dimmer function from 10% (40lm) to 100% (400lm) light output.

For increased operating time, the optional 035782 4000mAh Powerbank Accessory (Not included) can be connected. Simply attach the Powerbank to the head band via the enclosed flexible clip holder and connect the cable to the headlamp.

This lamp replaces 2XM 530 302-222 LED Inspection Lamp - I-VIEW Headlamp.

• Powerful, USB rechargeable headlamp
• Stepless dimmer adjustment
• High power LEDs
• Touchless sensor switch
• Dust and waterproof
• Natural light – colour similar to daylight
• Strong, sturdy and resistant to water, oil and chemicals

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Battery Powered

Options

SCANGRIP® I-VIEW LED Inspection Headlamp

PART NO: 035626
Legacy PN: 2XM 530 302-853

Specifications

Light Output

LO 40 lumen for up to 15 hours
HI 400 lumen for up to 1.5 hours

Light Performance

LO 100 lux @ 0.5m
HI 1000 lux @ 0.5m

Temperature Range

-10° to +40°C

Protection

IP 65 (Protection against dust and water jets)

Dimensions

100mm x 50mm x 38mm

Battery

3.8V/1600 mAh Li-ion.
3.5 hour charging time

Compliance

CE

Note

Includes 1m USB cable

Accessory

035782 4000mAh Powerbank
