DuraLED® WL1300 LED Work Lamp

The WL1300 LED Work Lamp incorporates the latest technology to offer a powerful, durable lighting solution for a multitude of applications. Featuring an integrated dual intensity light output circuit, a high level of spike protection, and energy efficient Multivolt™ technology, this work lamp will appeal to applications where energy efficiency and reliability are a must.

• 14 high performance LEDs.
• Luminaire Performance* 1300 lumen.
• Low power consumption of 18W.
• Dust and waterproof.

* Luminaire Performance refers to the real performance of the lamp, not the much higher theoretical performance of the LEDs, as is often used.

These lamps offer a formidable net light output of 1300 lumen. Designed with Fit and Forget durability in mind, the WL1300 features a highly impact resistant Grilamid® lens; a crystal clear polyamide with superior tolerance to chemical and long term harsh UV exposure as well as a technologically advanced thermally conductive non-metal housing.

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Corrosion Proof

Benefits include strength and corrosion resistance.

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Light intensity can be switched between 100% and a lower level factory pre-set value, usually via
an additional cable input supplied with the lamp using a positive feed from the DC power supply within the lamps operating voltage range.

Dual Intensity Switch Control

Light intensity can be switched between 100% and a lower level factory pre-set value, usually via an additional cable input supplied with the lamp using a positive feed from the DC power supply within the lamps operating voltage range.

Made in New Zealand

Options

DuraLED® WL1300 LED Work Lamp - Close Range

DuraLED® WL1300 LED Work Lamp - Close Range

1GA 980 740-321
DuraLED® WL1300 LED Work Lamp - Long Range

DuraLED® WL1300 LED Work Lamp - Long Range

1GA 980 740-221
DuraLED® WL1300 LED Work Lamp - Flood

DuraLED® WL1300 LED Work Lamp - Flood

1GA 980 740-021

Specifications

Mounting

Upright or pendant.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

High intensity mode: 18W
Low intensity mode: 2W

Max. Light Output

1300 lumen

Protection

Reverse polarity and voltage spike protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable

Lens Material7

Grilamid®

Approval Markings

CE

Outline

All dimensions in mm.
All dimensions in mm.

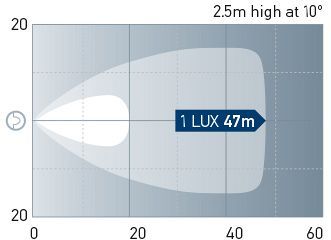

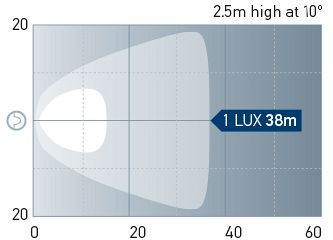

Light Output

Beam pattern: Close Range
Beam pattern: Close Range
Beam pattern: Long Range
Beam pattern: Long Range
Beam pattern: Flood
Beam pattern: Flood
