HELLA

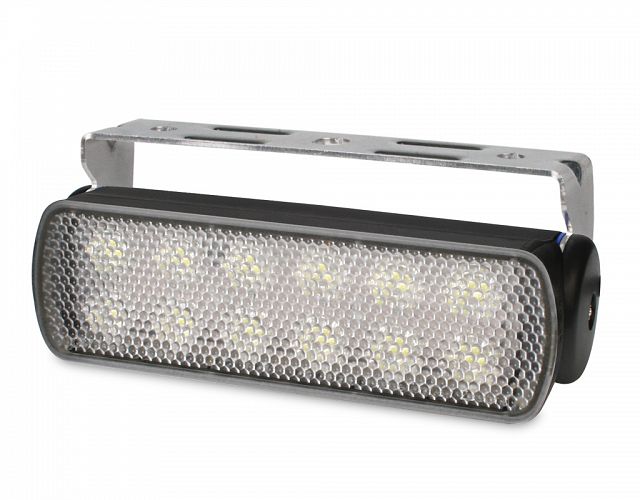

DuraLED® WL200 Work Lamp

DuraLED® WL200 universal work lamp with low profile stainless steel bracket. Lamp may be mounted upright or pendant, and adjusted vertically up or down. Lens manufactured from Grilamid® clear nylon which features high UV and chemical resistance, and high impact strength. The lamp is fully sealed against dust and moisture ingress. Option of two light patterns, long range or close range.

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Corrosion Proof

Benefits include strength and corrosion resistance.

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

DuraLED® WL200 Work Lamp - Close Range - Black Housing

DuraLED® WL200 Work Lamp - Close Range - Black Housing

1GA 980 670-331
DuraLED® WL200 Work Lamp - Close Range - White Housing

DuraLED® WL200 Work Lamp - Close Range - White Housing

1GA 980 670-411
DuraLED® WL200 Work Lamp - Long Range - Black Housing

DuraLED® WL200 Work Lamp - Long Range - Black Housing

1GA 980 670-231
DuraLED® WL200 Work Lamp - Long Range - White Housing

DuraLED® WL200 Work Lamp - Long Range - White Housing

1GA 980 670-251

Specifications

Mounting

Upright or pendant.

Voltage

Multivolt™ for optimum brightness at input voltage from 9 to 33 volts.

Power Consumption

3W

Max. Light Ouput

200 lumen

Protection

Reverse polarity protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of cable.

Lens Material

Grilamid®

Approval Markings

CE

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

Beam pattern: Close Range
Beam pattern: Close Range

Documents

Document File Name File Size
  1GA 980 670-xxx - Instruction Sheet.pdf 911.89 KB
