HELLA

DuraLED® WL750 Work Lamp

Featuring an integrated dual intensity circuit, a high level of spike protection and energy efficient Multivolt technology, the innovative DuraLED WL750 will appeal for applications where energy efficiency and reliability is a must. Features a tough, chemical resistant Grilamid® lens, a highly impact resistant Swiss-made crystal clear polyamide with superior tolerance to chemical and long term harsh UV exposure, as well as technologically advanced thermally conductive non-metal housing.

Technologically advanced thermally conductive non-metal housing

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

30 LED

Corrosion Proof

Benefits include strength and corrosion resistance.

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Light intensity can be switched between 100% and a lower level factory pre-set value, usually via
an additional cable input supplied with the lamp using a positive feed from the DC power supply within the lamps operating voltage range.

Dual Intensity Switch Control

Light intensity can be switched between 100% and a lower level factory pre-set value, usually via an additional cable input supplied with the lamp using a positive feed from the DC power supply within the lamps operating voltage range.

Made in New Zealand

Options

DuraLED<sup>®</sup> WL750 Work Lamp - Close Range - White

DuraLED® WL750 Work Lamp - Close Range - White

1GA 980 950-031
DuraLED<sup>®</sup> WL750 Work Lamp - Close Range - Warm White

DuraLED® WL750 Work Lamp - Close Range - Warm White

1GA 980 950-041
DuraLED<sup>®</sup> WL750 Work Lamp - Long Range - White

DuraLED® WL750 Work Lamp - Long Range - White

1GA 980 950-231
DuraLED<sup>®</sup> WL750 Work Lamp - Long Range - Warm White

DuraLED® WL750 Work Lamp - Long Range - Warm White

1GA 980 950-331

Specifications

Mounting

Upright or pendant.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

High intensity mode: 12W
Low intensity mode: 2W

Max. Light Output

White: 750 lumens
Warm white: 650 lumens

Protection

Reverse polarity and voltage spike protection.
IP 6K7     (Protection against dust and temporary water immersion)
IP 6K9K   (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Lens Material

Grilamid®

Approval Markings

CE

Outline

All dimensions in mm.
All dimensions in mm.

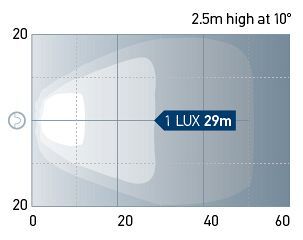

Light Output

Beam pattern: Close Range
Beam pattern: Close Range
Beam pattern: Long Range
Beam pattern: Long Range
