12V 4 Pin Normally Open Micro Relay - 20A - Resistor

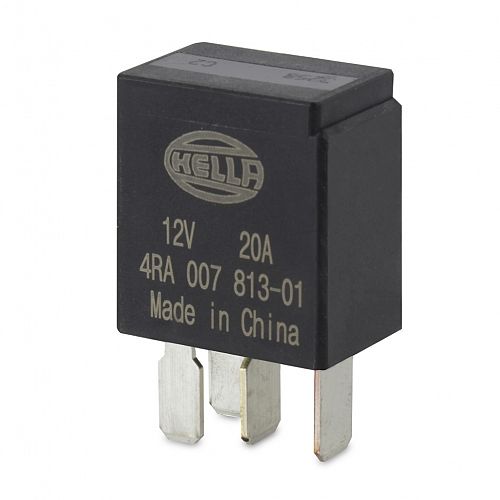

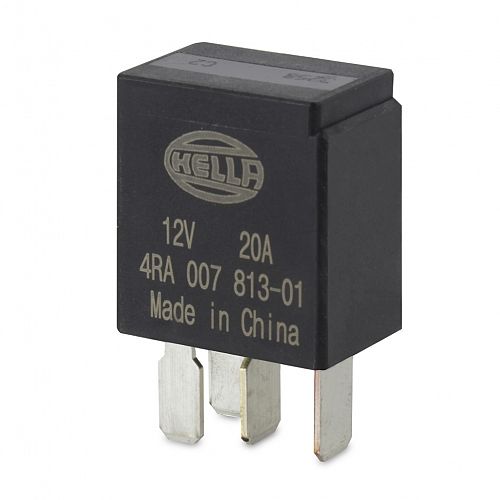

Micro relay with parallel resistor. Features two 4.8mm and two 6.3mm blade terminal contacts.

Trust in our Quality Relays

Production expertise: HELLA produces more than 100 million relays per year. Thanks to optimised production we can offer a competitive price for customers. HELLA relays have an extremely low failure rate.

OEM customers: HELLA develops and produces relays for AGCO, Claas, Daimler AG, Ford, VW, GM, JCB, Opel, Nissan, John Deere, Chrysler and Jaguar/Land Rover among others. We have been working with many customers for decades.

To find a HELLA reseller near you, click here.



Rollover/tap the icons below for further details:

Options

12V 4 Pin Normally Open Micro Relay - 20A - Resistor

12V 4 Pin Normally Open Micro Relay - 20A - Resistor

3064

Specifications

Voltage

12V

Pins

4 Pin

Function

Normally Open

Protection

Resistor

Pin Designations

Terminal Number Connect to
85/2 Earth (end of winding to ground or negative).
86/1 Positive.
87/5 Output (to consumer e.g. driving lamp).
30/3 Positive supply (Input from + battery terminal, direct).

Maximum Load

20A

Current Draw

140mA

Bracket

No

Note

Features two 4.8mm blade terminals (85 and 86) and two 6.3mm blade terminals

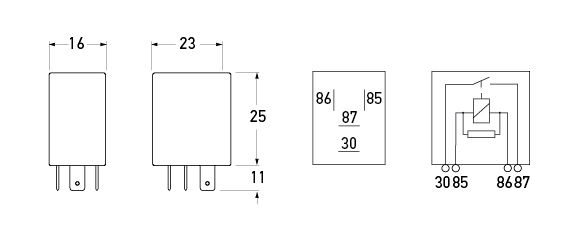

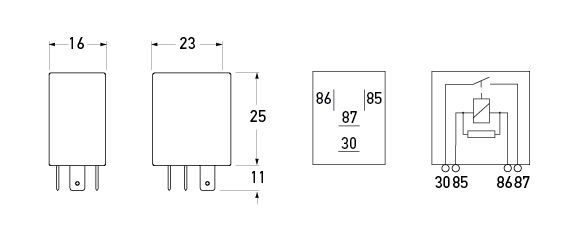

Outline

All dimensions in mm.
All dimensions in mm.

Top
