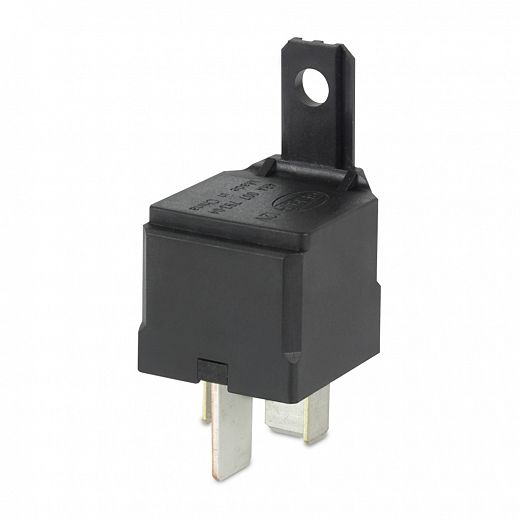

12V 4 Pin Normally Open Mini Relay - 50A - Resistor

PART NO: 4RA 007 791-023
Legacy PN: 3078R

Specifications

Voltage

12V

Pins

4 Pin

Function

Normally Open

Protection

Resistor

Pin Designations

Terminal Number Connect to
85/2 Earth (end of winding to ground or negative).
86/1 Positive.
87/5 Output (to consumer e.g. driving lamp).
30/3 Positive supply (Input from + battery terminal, direct).

Maximum Load

50A

Current Draw

140mA

Bracket

Yes

Note

Terminals 30 and 87 are 9.5mm terminals

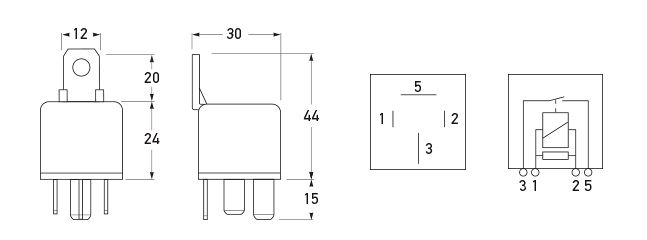

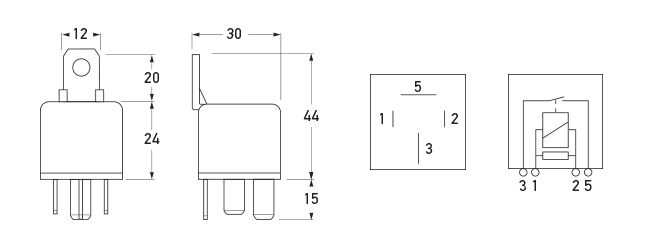

Outline

All dimensions in mm.
All dimensions in mm.

Top
