12V 4 Pin Normally Open High Capacity Relay - 180A

Trust in our Quality Relays

Production expertise: HELLA produces more than 100 million relays per year. Thanks to optimised production we can offer a competitive price for customers. HELLA relays have an extremely low failure rate.

OEM customers: HELLA develops and produces relays for AGCO, Claas, Daimler AG, Ford, VW, GM, JCB, Opel, Nissan, John Deere, Chrysler and Jaguar/Land Rover among others. We have been working with many customers for decades.

To find a HELLA reseller near you, click here.



Rollover/tap the icons below for further details:

Options

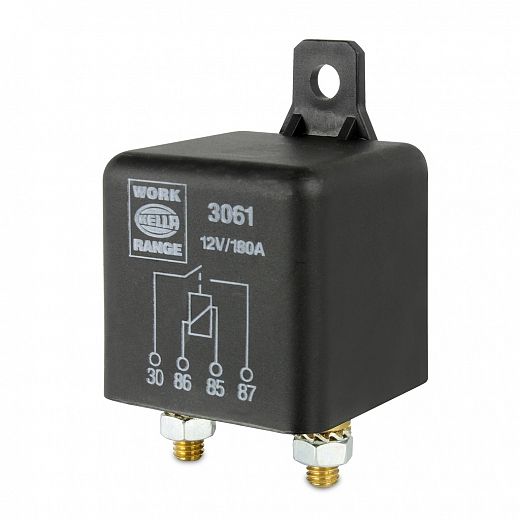

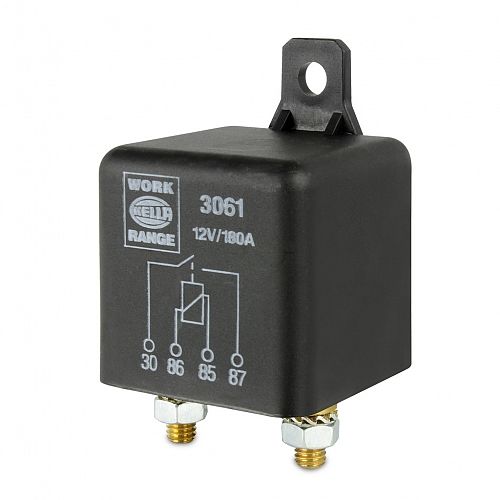

12V 4 Pin Normally Open High Capacity Relay - 180A

PART NO: 4RA 905 330-041
Legacy PN: 3061

Specifications

Voltage

12V

Pins

4 Pin

Function

Normally Open

Pin Designations

Terminal Number Connect to
85/2 Earth (end of winding to ground or negative).
86/1 Positive.
87/5 Output (to consumer e.g. driving lamp).
30/3 Positive supply (Input from + battery terminal, direct).

Maximum Load

180A peak current (100A continuous)

Current Draw

380mA

Bracket

Yes

Note

Terminals 30 and 87 are 6mm studs

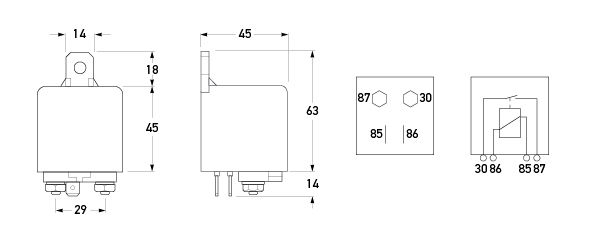

Outline

All dimensions in mm.
All dimensions in mm.
