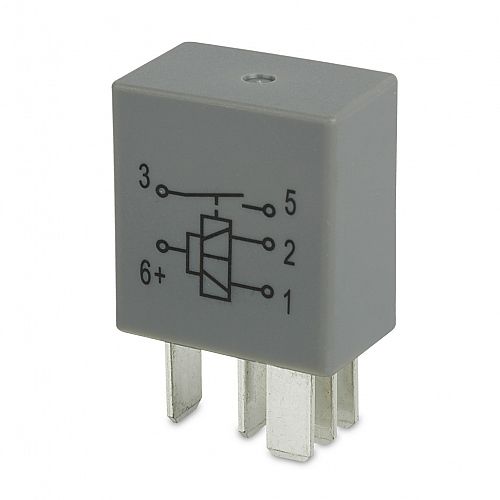

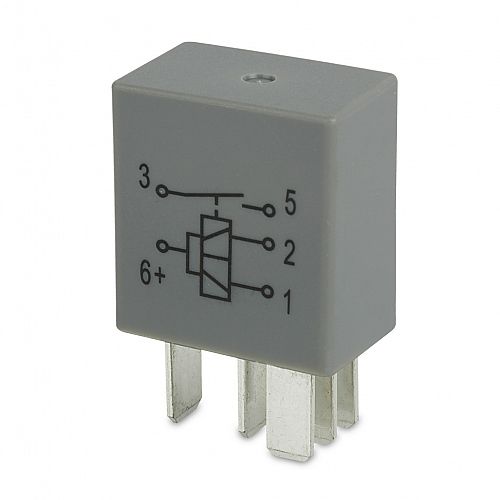

12V 5 Pin On/Off Latching Micro Relay - 20A

Latching relay that will remain in its open or closed state when power is removed, i.e. it will remain on or off and not automatically return to off. A negative (-) voltage pulse is required on either terminal 1 or 2 to switch on or off.

Trust in our Quality Relays

Production expertise: HELLA produces more than 100 million relays per year. Thanks to optimised production we can offer a competitive price for customers. HELLA relays have an extremely low failure rate.

OEM customers: HELLA develops and produces relays for AGCO, Claas, Daimler AG, Ford, VW, GM, JCB, Opel, Nissan, John Deere, Chrysler and Jaguar/Land Rover among others. We have been working with many customers for decades.

To find a HELLA reseller near you, click here.



Rollover/tap the icons below for further details:

Options

12V 5 Pin On/Off Latching Micro Relay - 20A

12V 5 Pin On/Off Latching Micro Relay - 20A

3064L

Specifications

Voltage

12V

Pins

5 Pin

Function

On/Off Latching

Maximum Load

20A

Current Draw

140mA

Bracket

No

Note

Features three 4.8mm blade terminals (1, 2 and 6) and two 6.3mm blade terminals

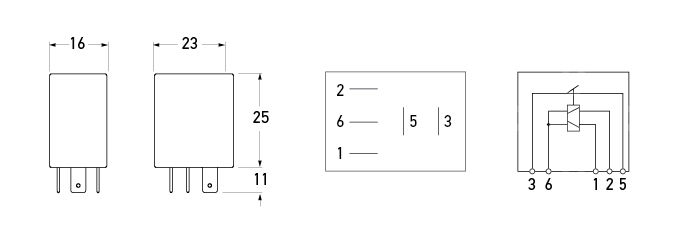

Outline

All dimensions in mm.
All dimensions in mm.
