CircLED 90 LED Combination lamp - Daytime Running Light/Position/Direction Indicator
The new CircLED 90 combination lamp from HELLA combines three LED light functions in one module: daytime running light, position light and direction indicator light.

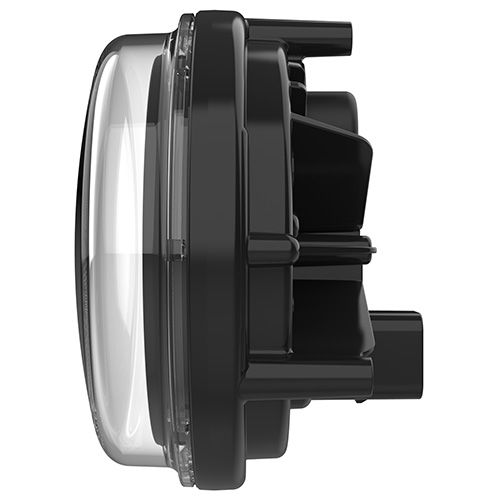

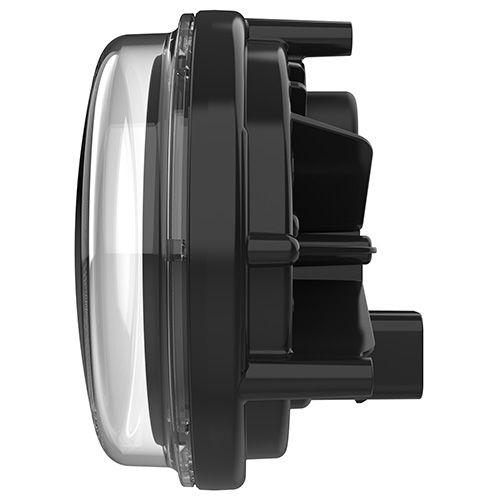

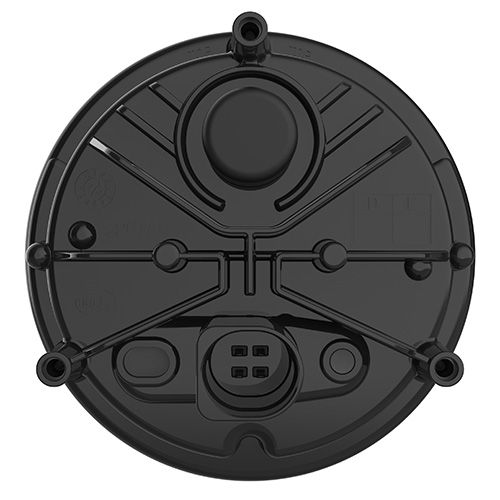

Thanks to the compact design (90 mm) and low installation depth, the multi-function lamp can be easily mounted in the vehicle environment using an integrated screw dome. As required, it can also be combined with any HELLA front lighting product.

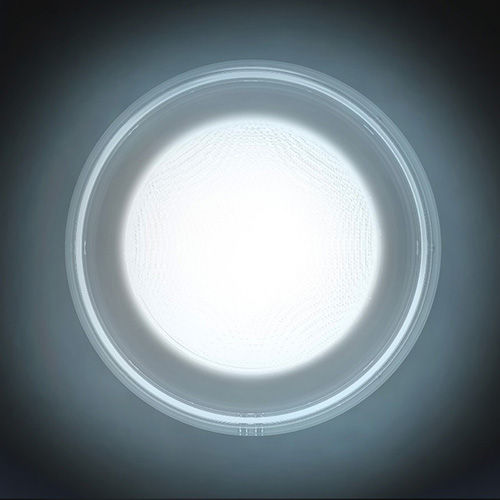

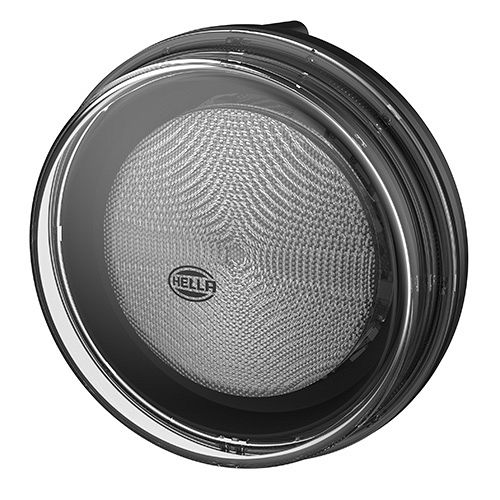

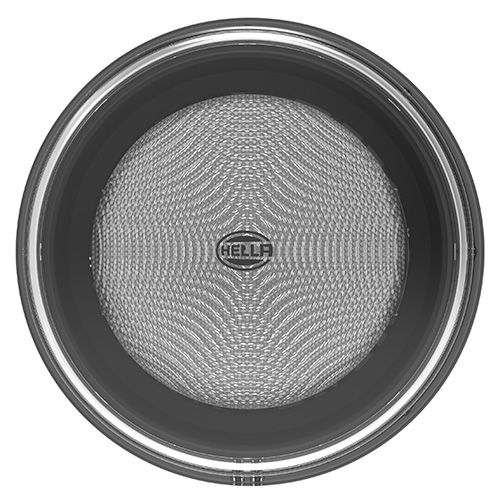

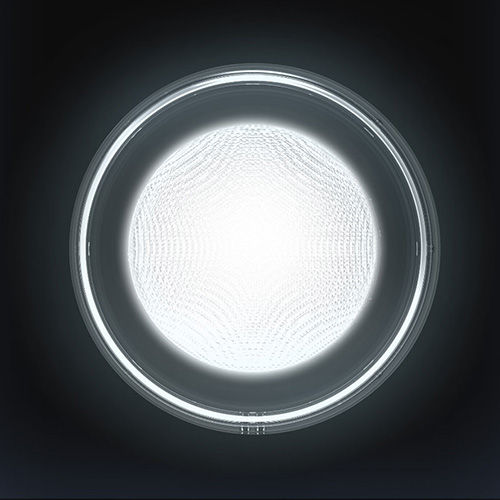

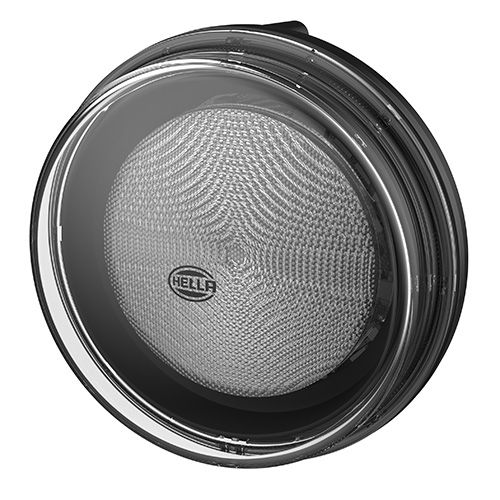

The optically floating lens embedded in a black ring gives the module a unique appearance. At the same time, the homogeneous light signature creates a modern and elegant front design.
The CircLED 90 is suitable for a wide range of applications with different requirements. The four integrated LEDs deliver maximum efficiency in a small space and offer a long service life.
Rated IP 5K4K and IP 5K9K, the robust and lightweight module is waterproof, dustproof and resistant to high-pressure jet cleaning.
To find a HELLA reseller near you, click here.
Rollover/tap the icons below for further details:
LED Technology
ECE Certified
Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.
12 Volt
Suitable only for 12VDC applications.
24 Volt
Suitable only for 24VDC applications.
UV Resistant
HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.
5 Year Warranty
This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.
Specifications
Light Function |
Daytime running light, Position light, Direction indicator light |
||||||
Mounting |
Screw mounting |
||||||
Operating Voltage |
Multi-voltage (9–32 V). 12V or 24V DC Nominal |
||||||
Power Consumption |
|
||||||
Material |
Housing: Polycarbonate |
||||||
Temperature range |
-40°C to +60°C |
||||||
Connection |
DT Connector |
||||||
Protection |
|
||||||
Compliance |
|

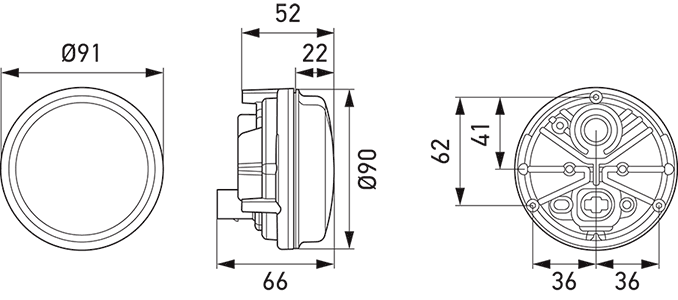

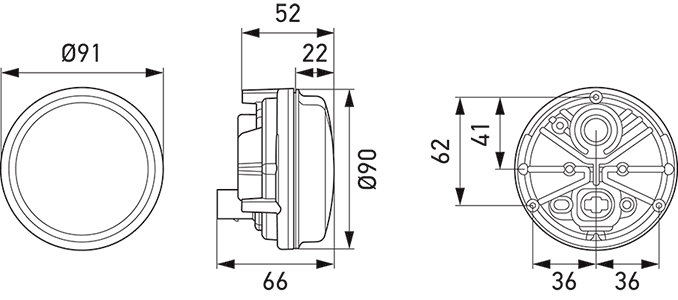

Outline
Documents
Document | File Name | File Size |
---|---|---|
Product Release CircLED-90_FORVIA_HELLA_EN.pdf | 886.40 KB |
