HELLA

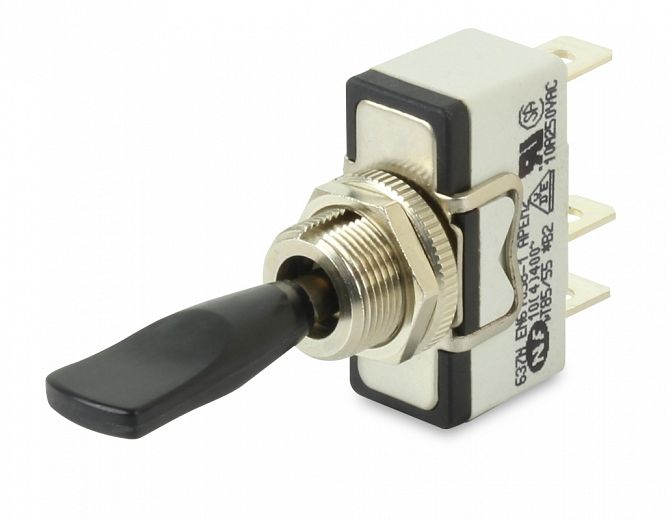

Toggle Switch (On)-Off-(On) Momentary Spring Return

Momentary on-off-on, spring return aerial switch. Flick toggle with spring return to centre.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Toggle Switch (On)-Off-(On) Momentary Spring Return

Toggle Switch (On)-Off-(On) Momentary Spring Return

4460

Specifications

Mounting

13mm diameter opening.

For panels

Up to 6mm thick.

Terminals

3

Maximum load

12V 15A
24V 7.5A

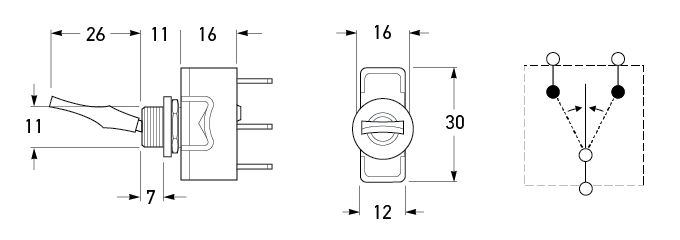

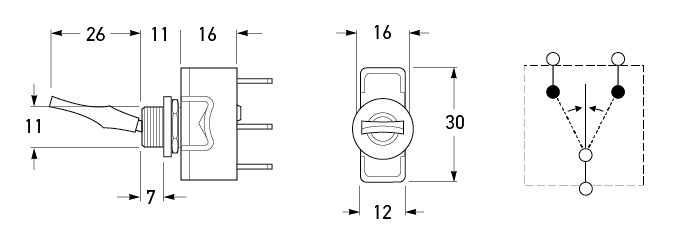

Outline

All dimensions in mm.
All dimensions in mm.

Top
