HELLA

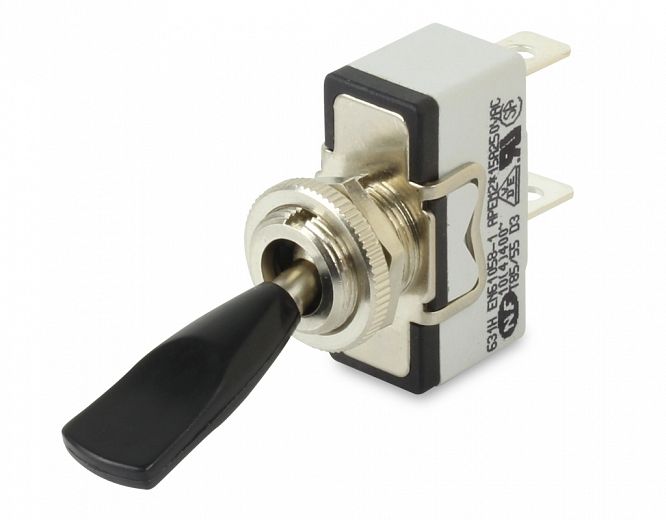

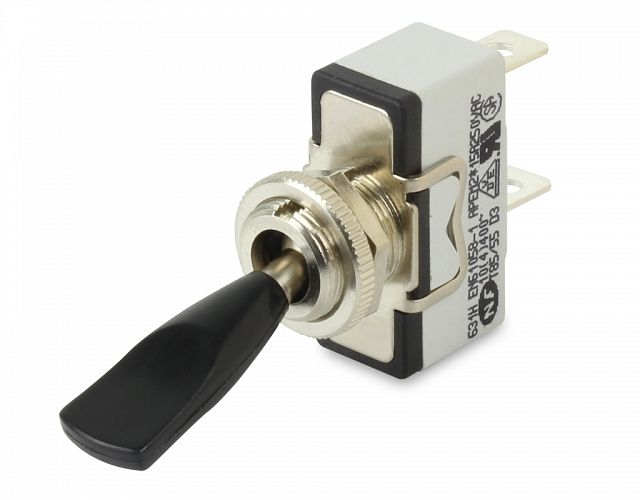

Toggle Switch Off-On

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Toggle Switch Off-On

Toggle Switch Off-On

4456

Specifications

Mounting

13mm diameter opening.

For panels

Up to 6mm thick.

Terminals

2

Maximum load

12V 15A
24V 7.5A

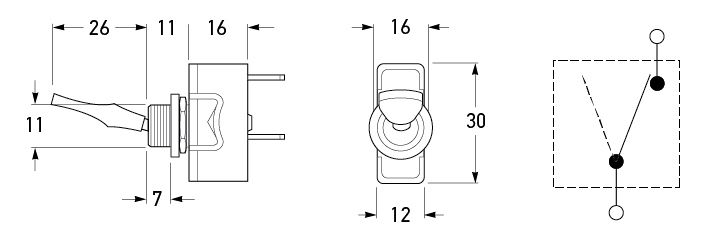

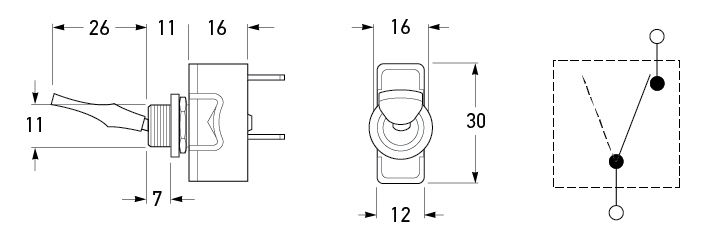

Outline

All dimensions in mm.
All dimensions in mm.
