Toggle Switch On-Off-On Metal Shaft

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Toggle Switch On-Off-On Metal Shaft

Toggle Switch On-Off-On Metal Shaft

4302

Specifications

Mounting

12mm diameter opening.

For panels

Up to 5mm thick.

Terminals

3

Maximum load

12V 20A
24V 10A

Notes

HELLA Rubber boot P/N 4452 also available as an optional extra

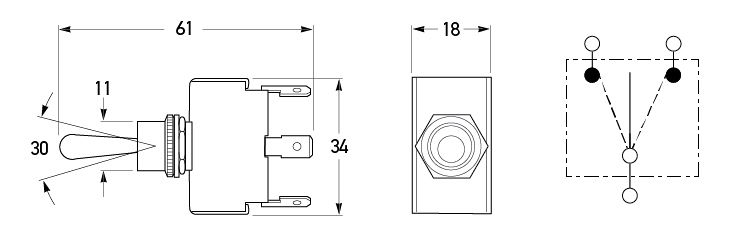

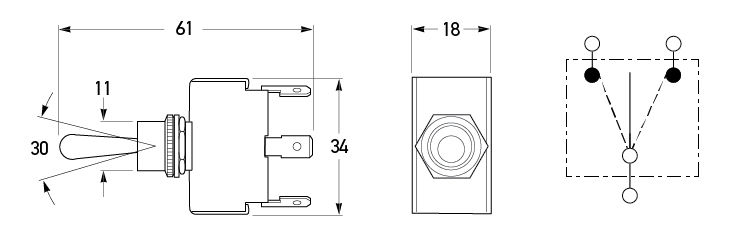

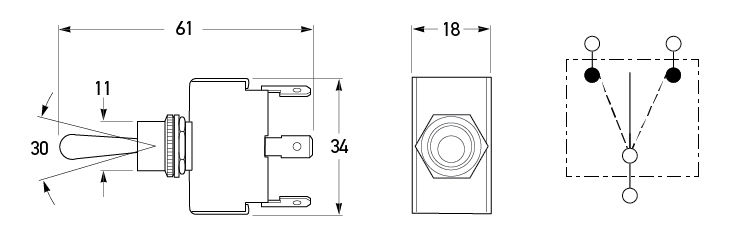

Outline

All dimensions in mm.
All dimensions in mm.

Top
