HELLA

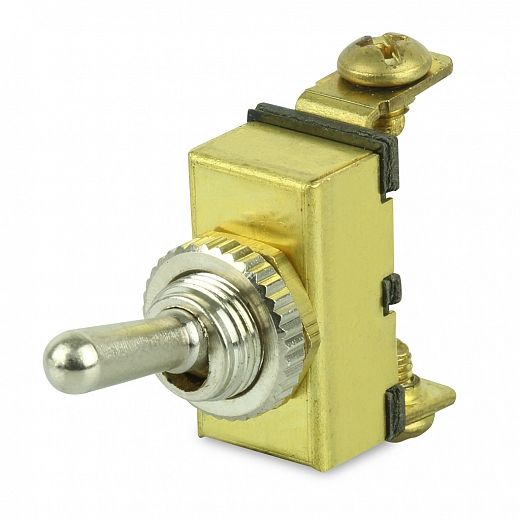

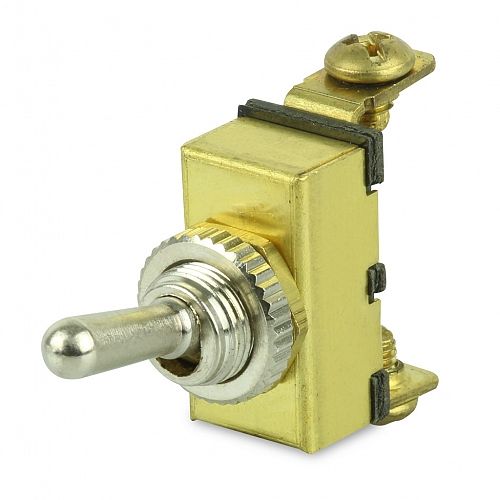

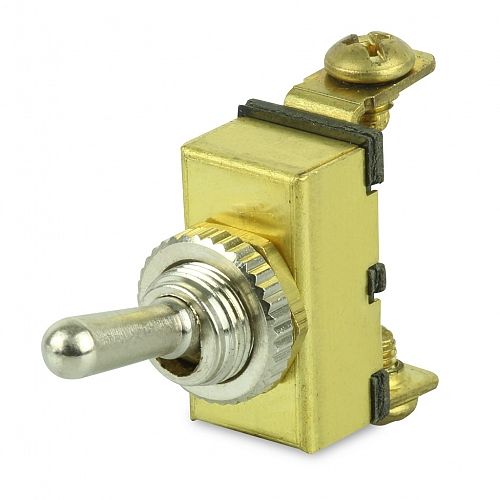

Toggle Switch Off-On Brass

Chrome toggle and face nut. Brass construction.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Toggle Switch Off-On Brass

Toggle Switch Off-On Brass

2762

Specifications

Mounting

11mm diameter opening.

For panels

Up to 6mm thick.

Terminals

2

Maximum load

12V 15A
24V 7.5A

Note

Toggle boot P/N 4452 does not fit this switch.

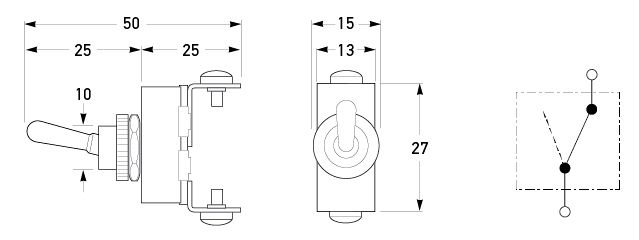

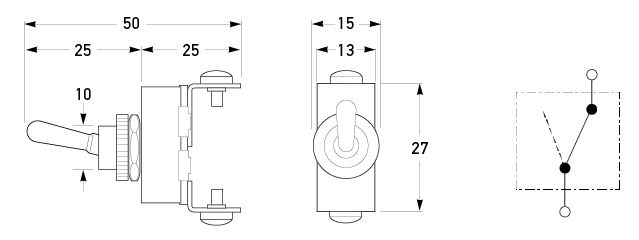

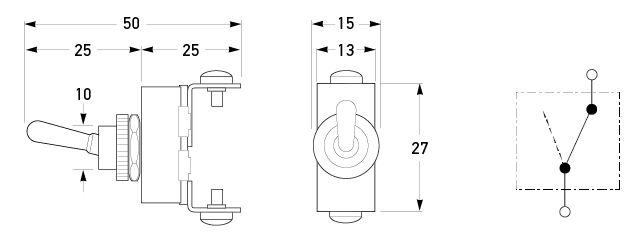

Outline

All dimensions in mm.
All dimensions in mm.

Top
