HELLA

Toggle Switch (On)-Off-(On) Momentary Spring Return - Metal Shaft

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Toggle Switch (On)-Off-(On) Momentary - Metal Shaft

PART NO: 6EH 905 362-002
Legacy PN: 4461

Specifications

Mounting

12mm diameter opening.

For panels

Up to 5mm thick.

Terminals

3

Maximum load

12V 20A
24V 10A

Notes

HELLA Rubber boot P/N 4452 also available as an optional extra

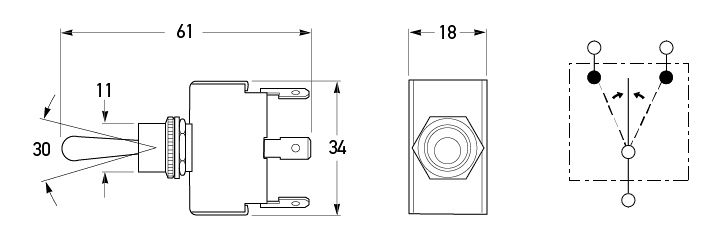

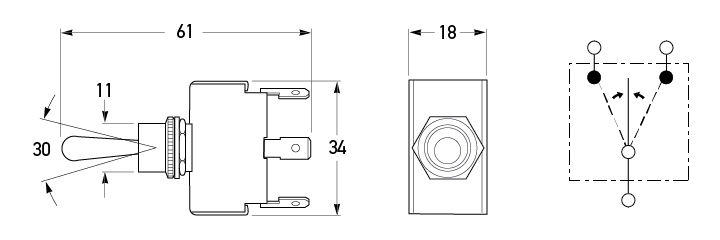

Outline

All dimensions in mm.
All dimensions in mm.

Top
