HELLA

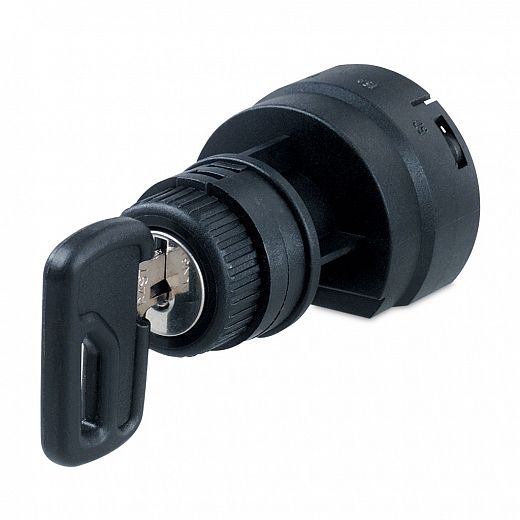

Starter and Ignition Switch - Heavy Duty

Heavy duty ignition and starter switch, featuring plastic outer construction for maximum protection against damage. Supplied with two keys.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Starter and Ignition Switch - Heavy Duty

Starter and Ignition Switch - Heavy Duty

4008HD

Specifications

Mounting

19mm diameter mounting opening.

For Panels

Up to 10mm thick.

Maximum Load

Current @12V Ignition 20A Start 25A Park 2A

Function

Four position switch (park, off, ignition, start). Key removes in park and off.

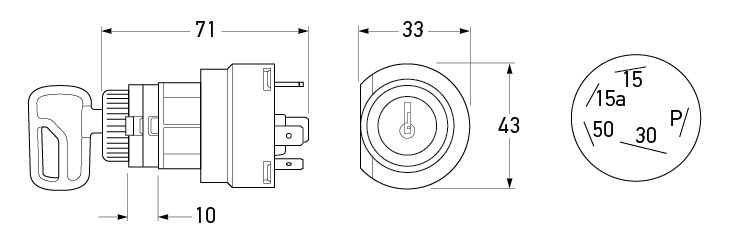

Outline

All dimensions in mm.
All dimensions in mm.
