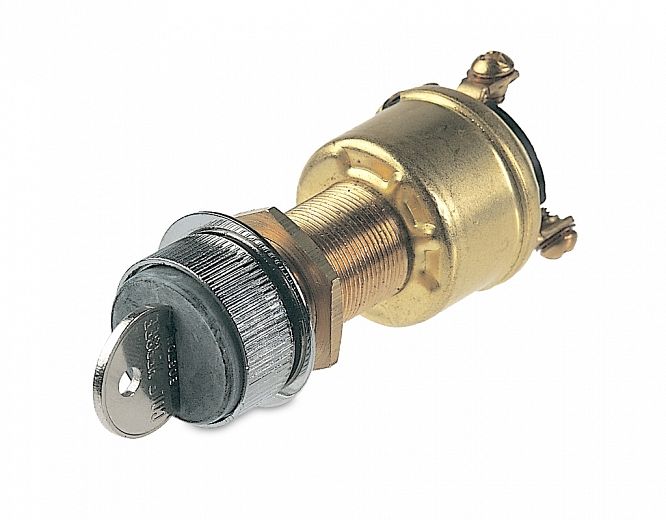

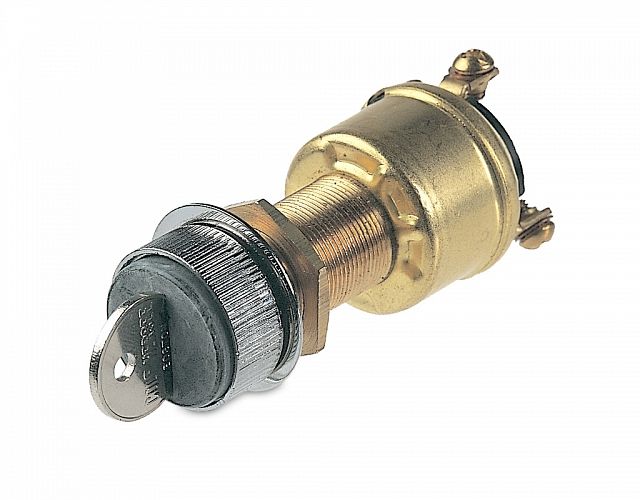

Starter and Ignition Switch - Brass Construction

Weather resistant rubber boot and mounting nut assembly protects against moisture and dirt with or without key engaged. Brass construction. Switch with spring loaded return. 4 screw terminals

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Starter and Ignition Switch - Brass Construction

Starter and Ignition Switch - Brass Construction

PART NO: 6JB 905 313-002
Legacy PN: 2766

Add to favourites

Specifications

Mounting

21mm diameter opening.

For Panels

Up to 25mm thick.

Maximum Load
Current @12V Ignition 5A Start 5A Accessory 10A

Function

Four position switch (Accessory, off, ignition, start)

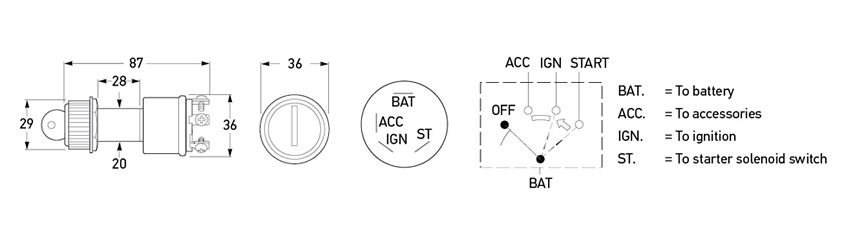

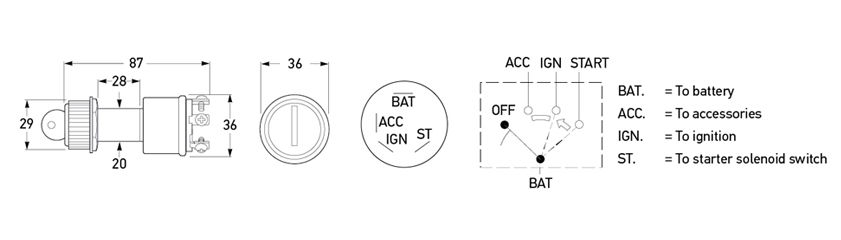

Outline

All dimensions in mm.
All dimensions in mm.
