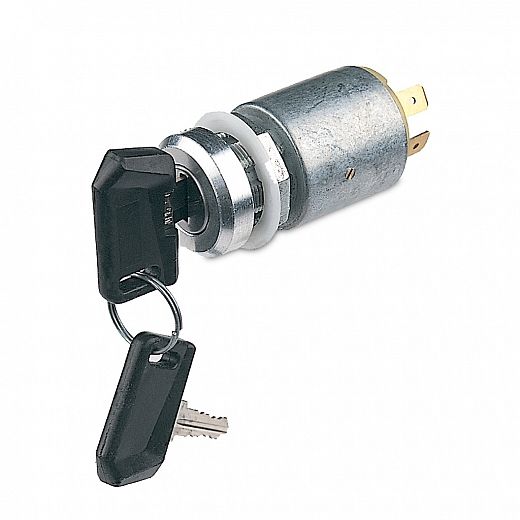

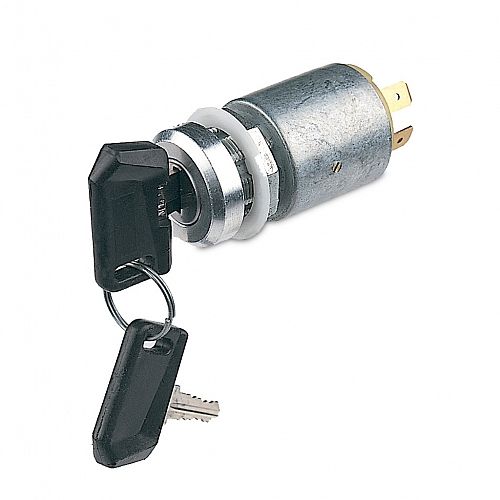

Starter and Ignition Switch - Start-lockout

Two keys supplied. Start-lockout mechanism to prevent accidental engagement of starter.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Starter and Ignition Switch - 22mm Shaft

Starter and Ignition Switch - 22mm Shaft

4009
Starter and Ignition Switch - 18mm Shaft

Starter and Ignition Switch - 18mm Shaft

4010

Specifications

Mounting

4009 22.5mm diameter opening
4010 18.5mm diameter opening

For Panels

Up to 19mm thick.

Maximum Load

Current @12V Ignition 25A Start 50A Accessory 20A

Function

Four position switch (Accessory, off, ignition, start).

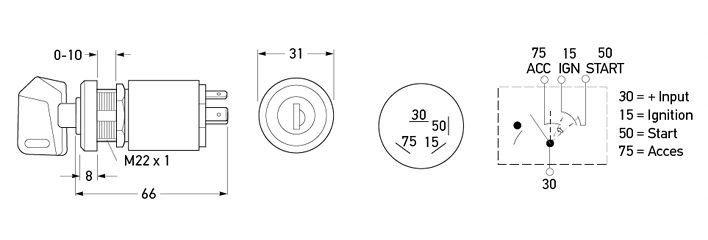

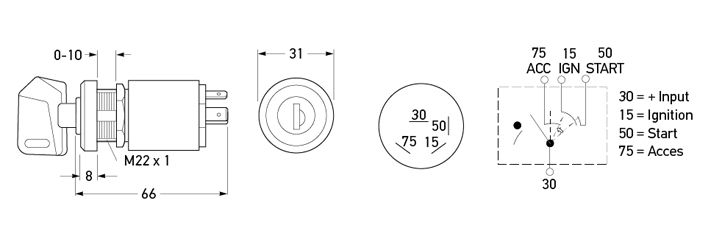

Outline

All dimensions in mm.
All dimensions in mm.
