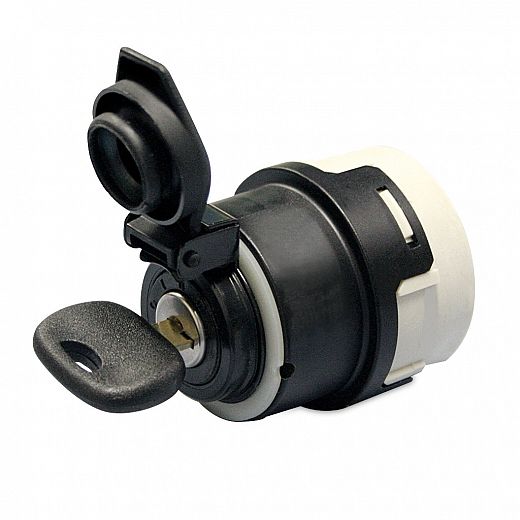

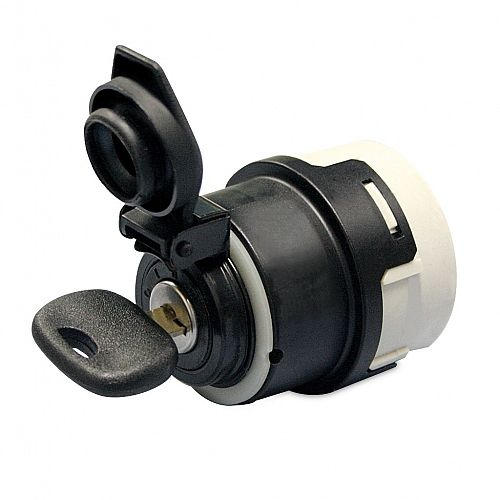

Starter Switch - Diesel Pre-heating

Pre-heating starter switch supplied with two keys. Key removes in park and off.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Starter Switch - Diesel Pre-heating

Starter Switch - Diesel Pre-heating

4005

Specifications

Mounting

26.5mm diameter opening.

For Panels

Up to 3.5mm thick.

Function

5 position switch (park, off, driving, pre-heat, start).

Termination

Terminal Position Function Current @ 24V
30-58 P Park Lamps 4A
30-15/54 1 Driving 18A
30-19 2 Preheat 35A
30-50a/17 3 Start 5A/35A

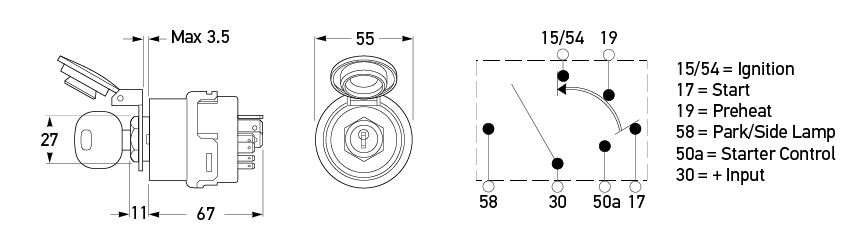

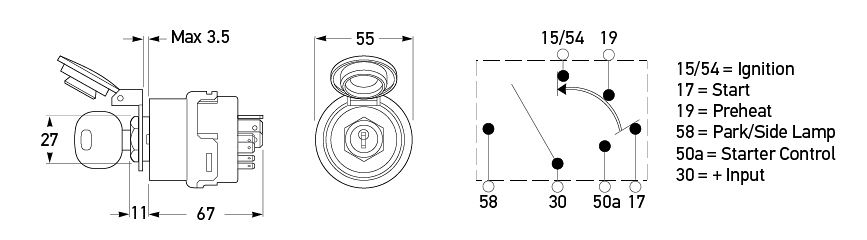

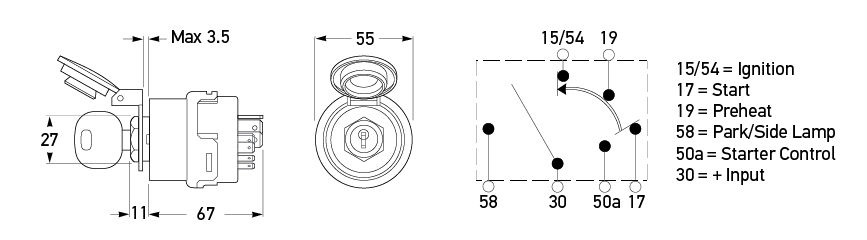

Outline

All dimensions in mm.
All dimensions in mm.

Top
