HELLA

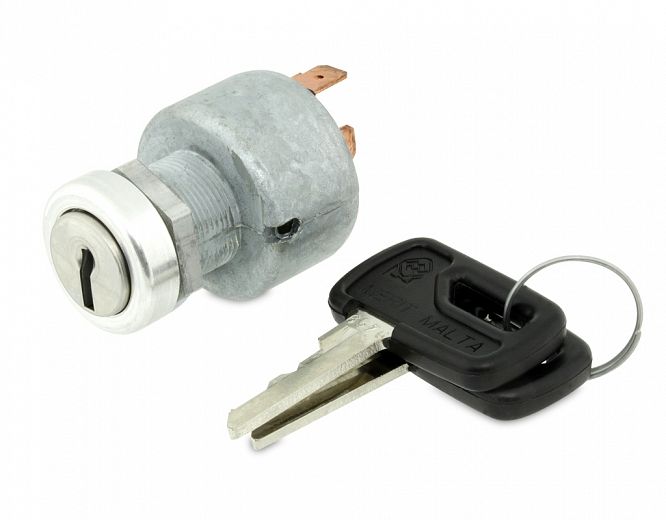

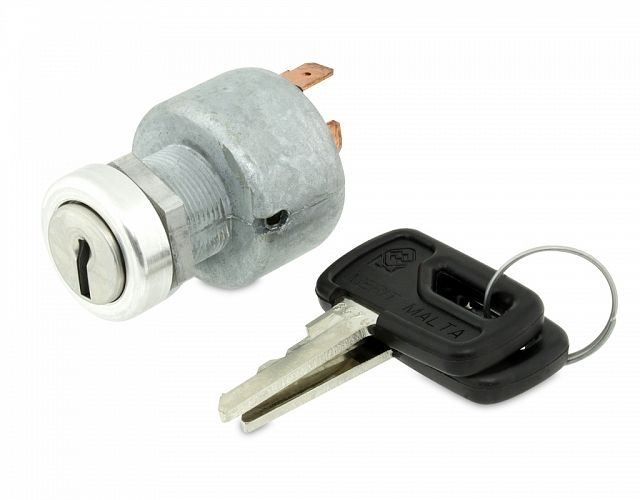

Starter and Ignition Switch

Switch with spring loaded return. Supplied with two keys.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Starter and Ignition Switch

Starter and Ignition Switch

4008

Specifications

Mounting

19mm diameter opening.

For Panels

Up to 19mm thick.

Maximum load

Current @12V Ignition 25A Start 12A Accessory 15A

Spare Part

Blank key number Silica BH4.

Function

Four position switch (Accessory, off, ignition, start).

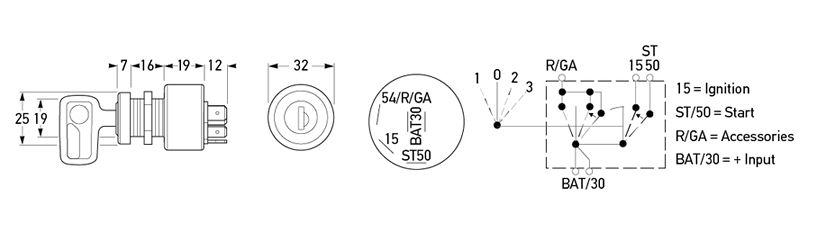

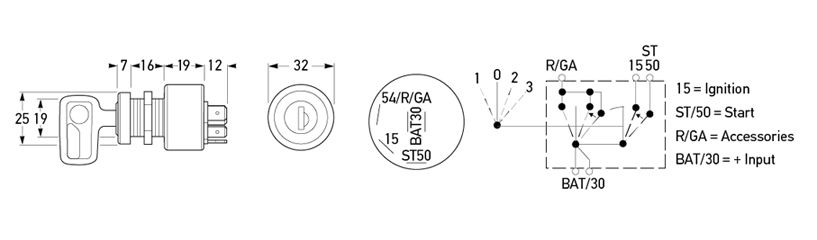

Outline

All dimensions in mm.
All dimensions in mm.
