HELLA

DuraLED® WL550 Work Lamp

The now iconic DuraLED® range revolutionised safety of the New Zealand and Australian transport fleets. First conceived and field trialled by HELLA New Zealand in 1998, our radical pursuit to create a range of ‘Fit and Forget’, highly visible LED Marker and Signal Lamps, permanently lowered the cost of ownership for our fleets and made our roads safer.

‘Fit & Forget’ by Design is a HELLA no compromise philosophy and commitment to design for long-term durability and safety. Products that carry the DuraLED® name will outlast the life of the vehicle.

Whilst keeping its design heritage and appearance the DuraLED® range has been continuously upgraded to the latest material and electronic component technology.

Universal work lamp – can be mounted upright or pendant

3 light patterns: spread, wide spread or narrow

Reliable – durable – ultra long service life
Completely sealed, maintenance free. Superior materials feature impact, shock, vibration, UV and corrosion resistance ensuring an ultra long service life.

Technologically advanced thermally conductive non-metal housing

To find a HELLA reseller near you, click here.

    DuraLED® Lifetime Warranty
All HELLA DuraLED® products carry a Lifetime Warranty.
Note: Lifetime means the economic life of the vehicle these products were first installed on.





Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

4 LED

Benefits include strength and corrosion resistance.

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Light intensity can be switched between 100% and a lower level factory pre-set value, usually via
an additional cable input supplied with the lamp using a positive feed from the DC power supply within the lamps operating voltage range.

Dual Intensity Switch Control

Light intensity can be switched between 100% and a lower level factory pre-set value, usually via an additional cable input supplied with the lamp using a positive feed from the DC power supply within the lamps operating voltage range.

Made in New Zealand

Options

DuraLED<sup>®</sup> WL550 Work Lamp - Spread Beam - White

DuraLED® WL550 Work Lamp - Spread Beam - White

98057310
DuraLED<sup>®</sup> WL550 Work Lamp - Wide Spread Beam - White

DuraLED® WL550 Work Lamp - Wide Spread Beam - White

98057300
DuraLED<sup>®</sup> WL550 Work Lamp - Narrow - White

DuraLED® WL550 Work Lamp - Narrow - White

98057330

Specifications

Mounting

Upright or pendant.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

7W

Max. Light Output

550lm

Protection

Reverse polarity and voltage spike protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Lens Material

Grilamid®

Compliance

CE CE

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

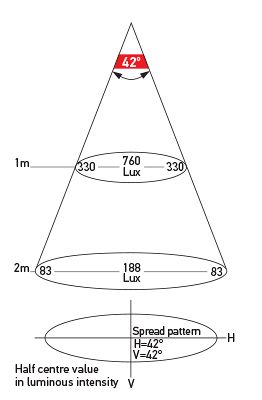

Beam pattern: WL550 - Spread.
Beam pattern: WL550 - Spread.
Beam pattern: WL550 -Flood
Beam pattern: WL550 -Flood
Beam pattern: WL550 - Long Range <br>One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
Beam pattern: WL550 - Long Range
One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
Illumination Chart: Close Range
Illumination Chart: Close Range
Illumination Chart: Flood
Illumination Chart: Flood

Documents

Document File Name File Size
  980573xx Instruction Sheet.pdf 449.02 KB
