LED Reversing Lamp - Surface Mount

Surface mount LED reversing lamp. Featuring a low profile, ultra durable Grilamid® nylon lens for extreme impact, UV, chemical and stress resistance. Optic appears clear until illuminated.

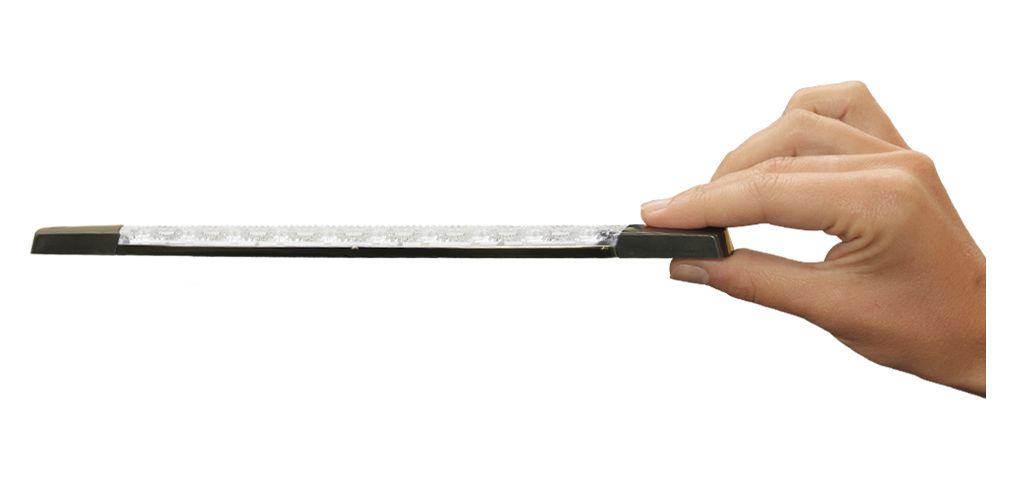

• Ultra slim with a profile height of only 11mm.
• Low power consumption.
• Grilamid® lens.
• Ultra long service life.
• Surface mount.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

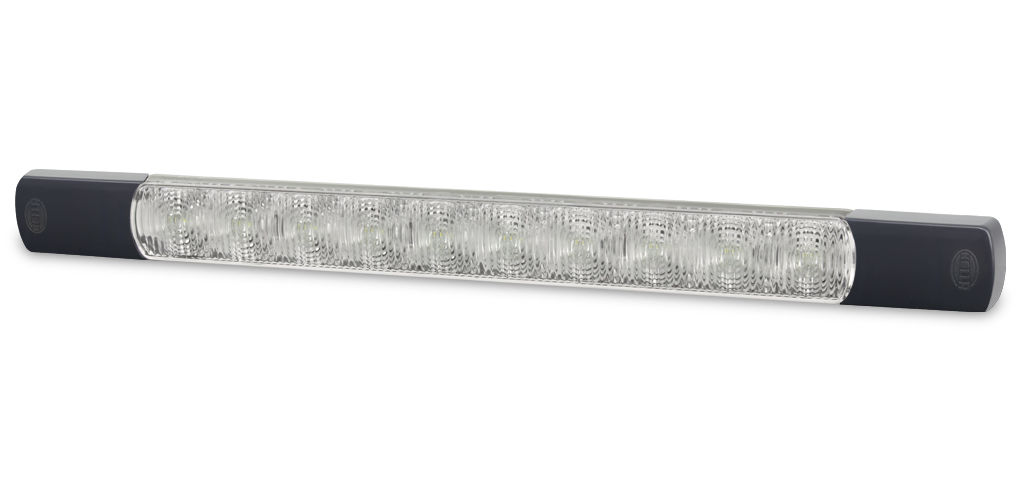

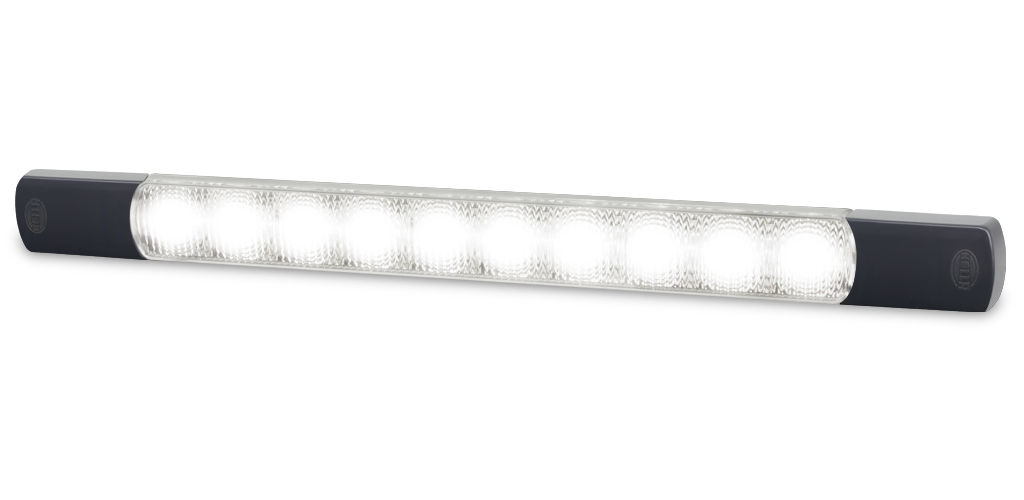

LED Reversing Lamp - Horizontal Mount - 12 Volt

LED Reversing Lamp - Horizontal Mount - 12 Volt

1468
LED Reversing Lamp - Horizontal Mount - 12 Volt - Blister pack

LED Reversing Lamp - Horizontal Mount - 12 Volt - Blister pack

1468-BL
LED Reversing Lamp - Horizontal Mount - 24 Volt

LED Reversing Lamp - Horizontal Mount - 24 Volt

1468-24V
LED Reversing Lamp - Horizontal Mount - 24 Volt - Blister pack

LED Reversing Lamp - Horizontal Mount - 24 Volt - Blister pack

1468-24VBL

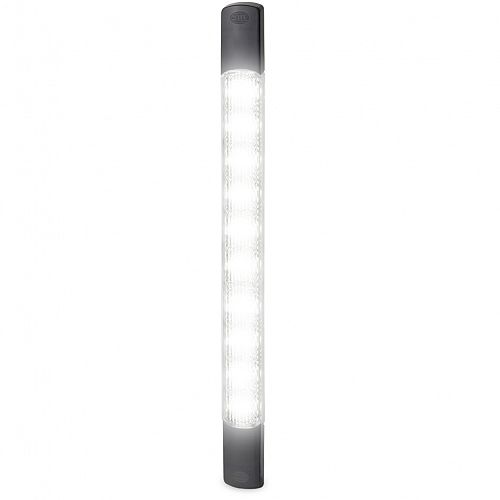

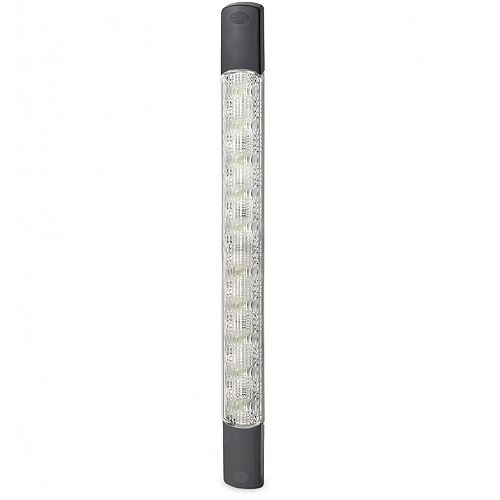

LED Reversing Lamp - Vertical Mount - 12 Volt

LED Reversing Lamp - Vertical Mount - 12 Volt

1468V
LED Reversing Lamp - Vertical Mount - 24 Volt

LED Reversing Lamp - Vertical Mount - 24 Volt

1468V-24V

Specifications

Optics

Optic appears clear until illuminated

Mounting

Suitable for horizontal or vertical mounting with tolerance. See diagram.

Power Consumption

3W

Protection

Reverse polarity protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Box pack Pre-wired with 2.5m of multi-core cable.
Blister pack Pre-wired with 0.5m of multi-core cable.

Lens Material

Grilamid®

Spare Parts

9.2652.09 White screw caps (Pack of 4)
9.1009.09 Charcoal screw caps (Pack of 4)
9.1009.10 Chrome plated screw caps (Pack of 4)

Compliance

ADR 1/00 Horizontal E24 0027    Vertical E24 0028 ECE R23/00

Note

Includes mounting screws and charcoal screw caps.

Outline

All dimensions in mm.
All dimensions in mm.
Hole Pattern - All dimensions in mm.
Hole Pattern - All dimensions in mm.
Mounting Diagram - Horizontal Mount (+/- 10° rotation around lamp (and vehicle) axis)
Mounting Diagram - Horizontal Mount (+/- 10° rotation around lamp (and vehicle) axis)

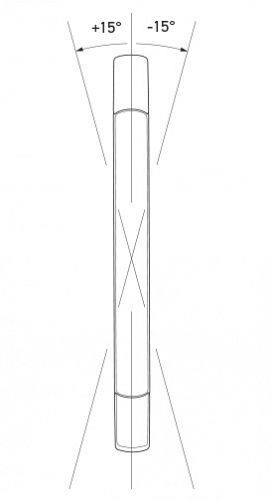

Mounting Diagram - Vertical Mount (+/- 15° rotation around lamp (and vehicle) axis)
Mounting Diagram - Vertical Mount (+/- 15° rotation around lamp (and vehicle) axis)

Documents

Document File Name File Size
  1468 Instruction Sheet.pdf 1.08 MB
  1468V Instruction Sheet.pdf 1.05 MB
