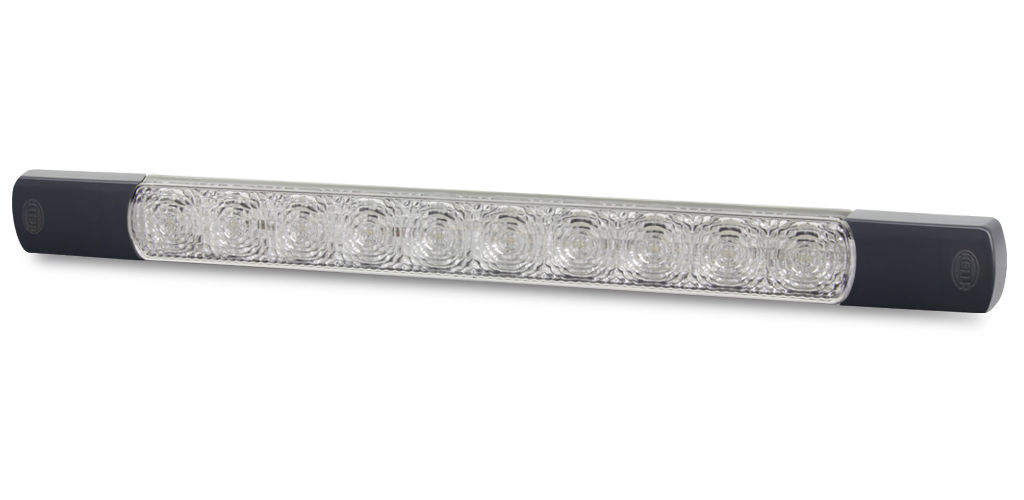

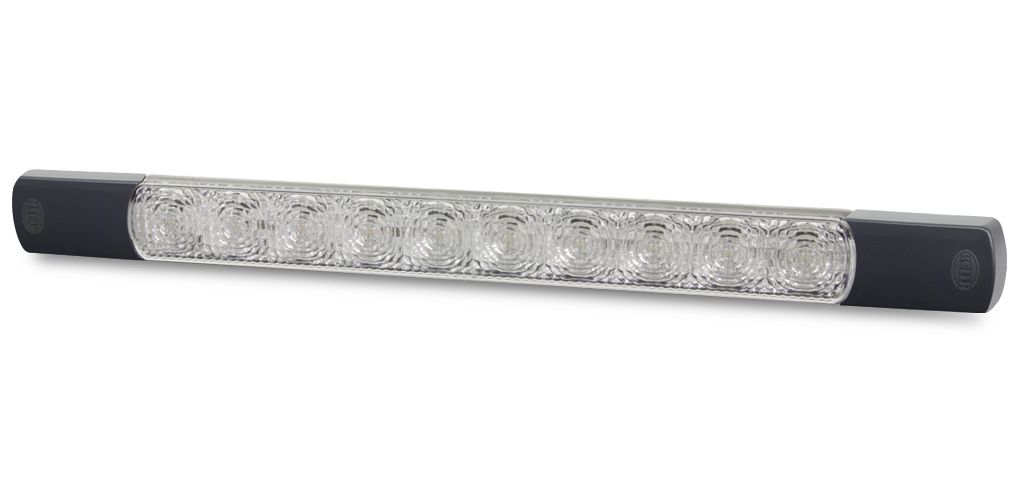

LED Rear Direction Indicator Lamp - Surface Mount

Surface mount LED rear direction indicator lamp that is designed with an ultra wide visibility optic for significantly improved side visibility.

Featuring a low profile, ultra durable Grilamid® nylon lens for extreme impact, UV, chemical and stress resistance. Optic appears clear until illuminated.

• Ultra slim with a profile height of only 11mm.
• Low power consumption.
• Grilamid® lens.
• Ultra long service life.
• Surface mount.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

Ultra Wide Visibility Optics

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED Rear Direction Indicator Lamp - Surface Mount - 12 Volt

LED Rear Direction Indicator Lamp - Surface Mount - 12 Volt

2168

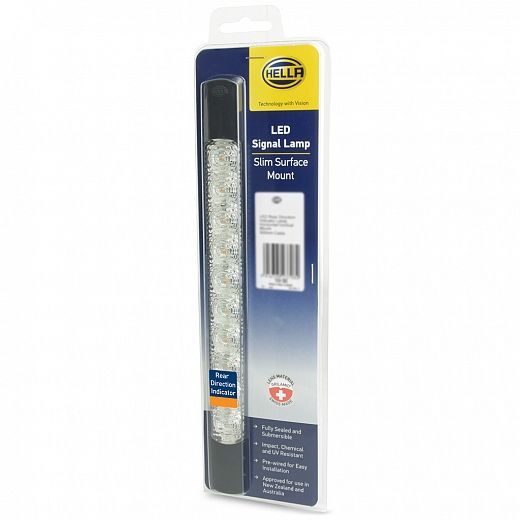

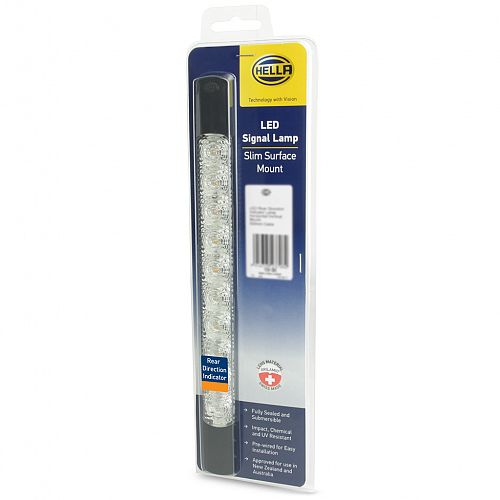

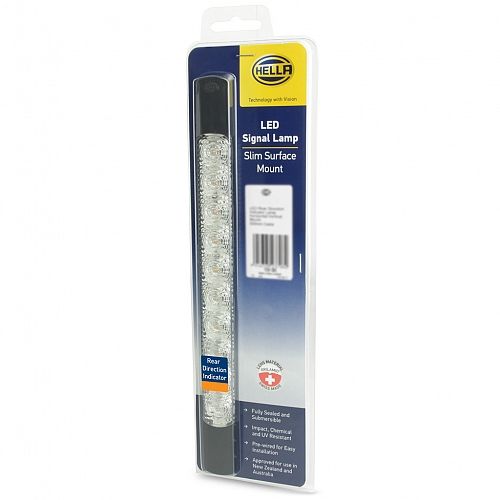

LED Rear Direction Indicator Lamp - Surface Mount - 12 Volt - Blister pack

LED Rear Direction Indicator Lamp - Surface Mount - 12 Volt - Blister pack

2168-BL
LED Rear Direction Indicator Lamp - Surface Mount - 24 Volt

LED Rear Direction Indicator Lamp - Surface Mount - 24 Volt

2168-24V
LED Rear Direction Indicator Lamp - Surface Mount - 24 Volt - Blister pack

LED Rear Direction Indicator Lamp - Surface Mount - 24 Volt - Blister pack

2168-24VBL

Specifications

Optics

Optic appears clear until illuminated

Mounting

Suitable for horizontal and vertical mounting with tolerance. See diagram.

Power Consumption

3W

Protection

Reverse polarity protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Box pack Pre-wired with 2.5m of multi-core cable.
Blister pack Pre-wired with 0.5m of multi-core cable.

Lens Material

Grilamid®

Spare Parts

9.2652.09 White screw caps (Pack of 4)
9.1009.09 Charcoal screw caps (Pack of 4)
9.1009.10 Chrome plated screw caps (Pack of 4)

Compliance

ADR 6/00: Cat 2a  E24 5891 ECE R6/01

Note

Includes mounting screws and charcoal screw caps.

Outline

All dimensions in mm.
All dimensions in mm.
Hole Pattern - All dimensions in mm.
Hole Pattern - All dimensions in mm.

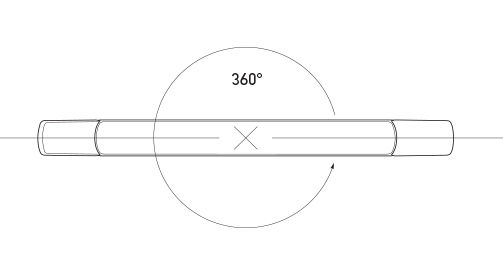

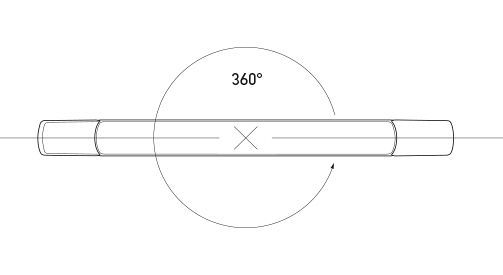

Mounting Diagram - Horizontal and Vertical Mount (360° rotation around lamp (and vehicle) axis)
Mounting Diagram - Horizontal and Vertical Mount (360° rotation around lamp (and vehicle) axis)
