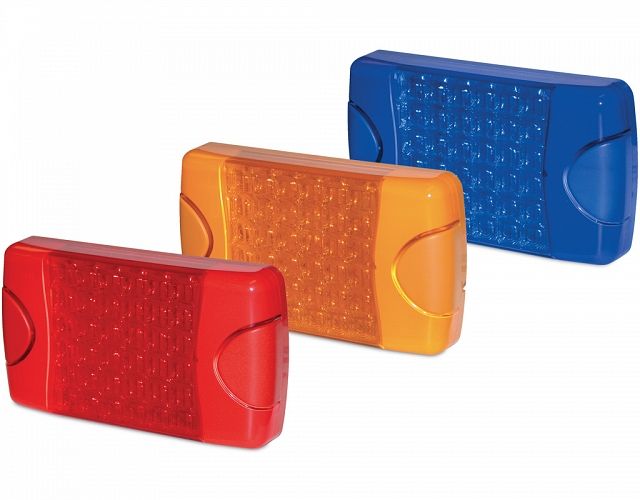

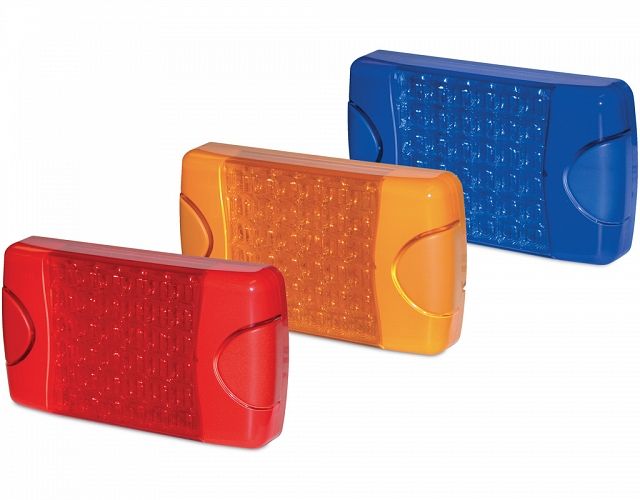

DuraLED® Multi-flash Signal Lamp

Multivolt™ warning lamps for emergency vehicles. The HELLA multi-flash range of warning lamps have 10 programmable flash modes and can be synchronised to flash alternately or in unison.

To find a HELLA reseller near you, click here.

    DuraLED® Lifetime Warranty
All HELLA DuraLED® products carry a Lifetime Warranty.
Note: Lifetime means the economic life of the vehicle these products were first installed on.





Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

The HELLA multi-flash range of warning lamps have 10 programmable flash modes and can be synchronised to flash alternately or in unison.

Multi-flash

The HELLA multi-flash range of warning lamps have 10 programmable flash modes and can be synchronised to flash alternately or in unison.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Made in New Zealand

Options

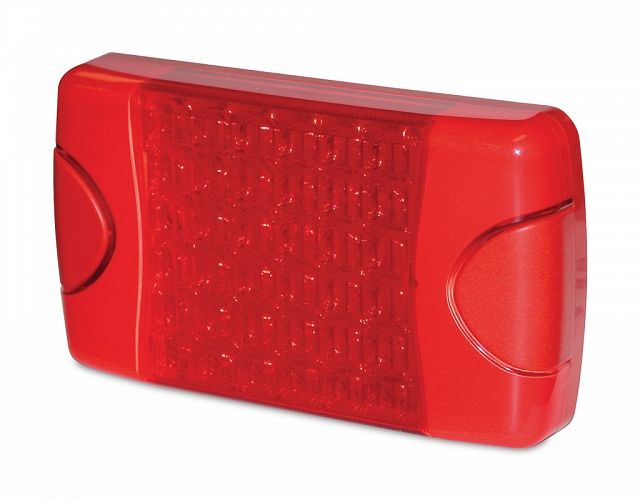

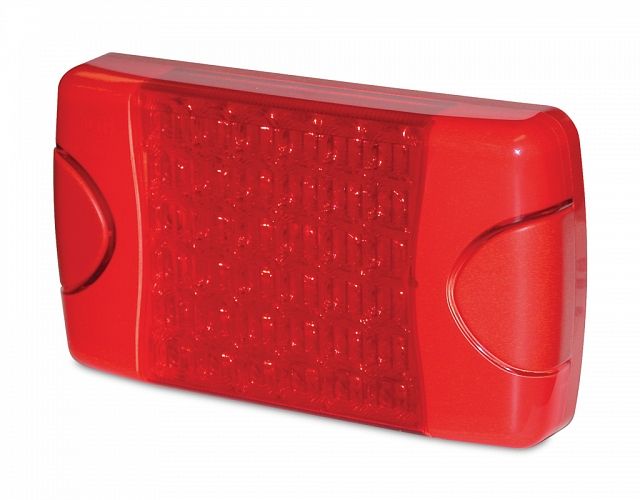

DuraLED<sup>®</sup> Multi-flash Signal Warning Lamp - Red

DuraLED® Multi-flash Signal Warning Lamp - Red

95903701

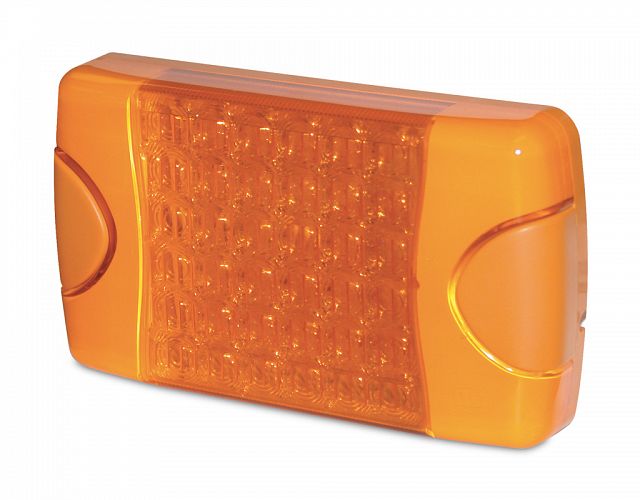

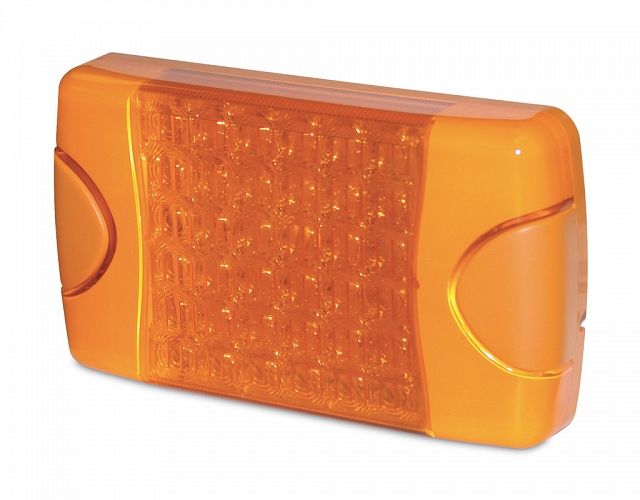

DuraLED<sup>®</sup> Multi-flash Signal Warning Lamp - Amber

DuraLED® Multi-flash Signal Warning Lamp - Amber

95903711

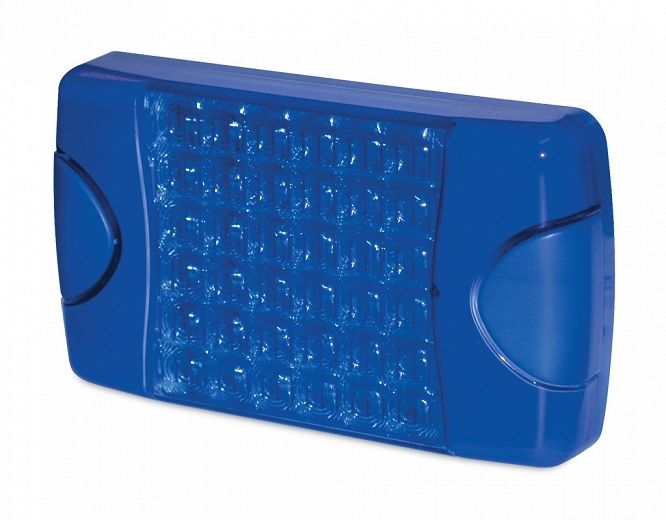

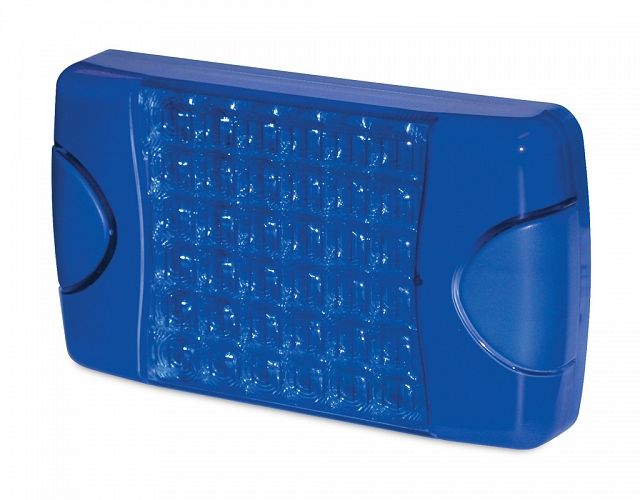

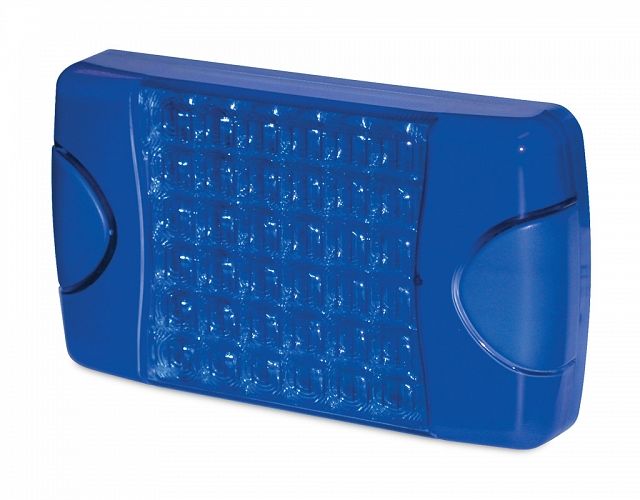

DuraLED<sup>®</sup> Multi-flash Signal Warning Lamp - Blue

DuraLED® Multi-flash Signal Warning Lamp - Blue

95903761

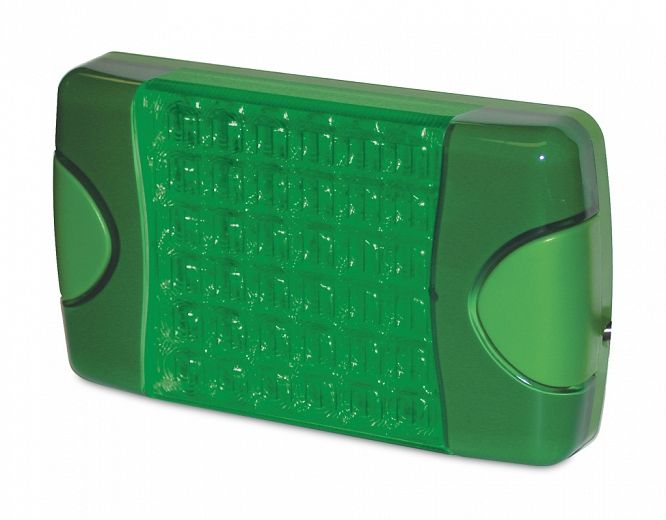

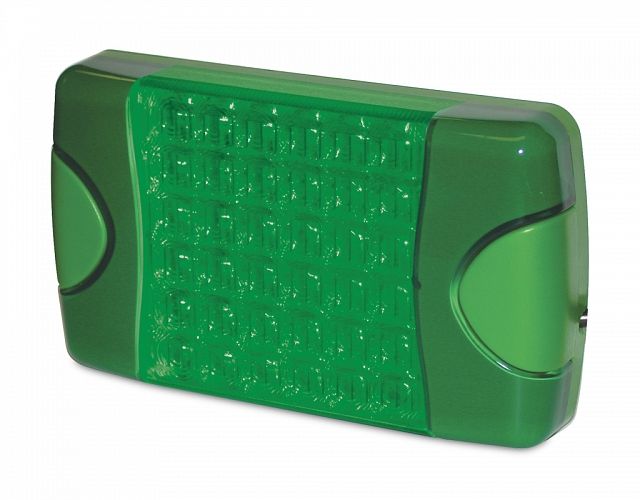

DuraLED<sup>®</sup> Multi-flash Signal Warning Lamp - Green

DuraLED® Multi-flash Signal Warning Lamp - Green

95903781
DuraLED<sup>®</sup> Multi-flash Signal Warning Lamp - White

DuraLED® Multi-flash Signal Warning Lamp - White

95903791

Specifications

Mounting

Two hole surface mount with mounting bushes supplied.

Voltage

Multivolt for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

9W continuous (less in flashing modes).

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS).
IP 6K6   (Protection against dust and high pressure water jets)
IP 6K7   (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Compliance

SAE J595 Class 1 (Red and amber versions) EMC e4 03 1925

Flashing Options

Steady state Lamp operates as a continuous ON signal
Independent flash Lamp operates from an external flashing system
Flash state Lamp operates in the flash mode preselected by the user
Blitz state Lamp operates in a burst of quad flashes (pattern 4)

The blitz mode overrides the other operating modes and is triggered by switching the blue cable to negative (-).

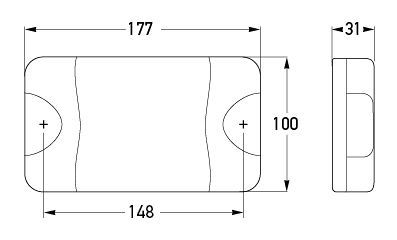

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  959037XX Instruction Sheet.pdf 479.00 KB
