HELLA

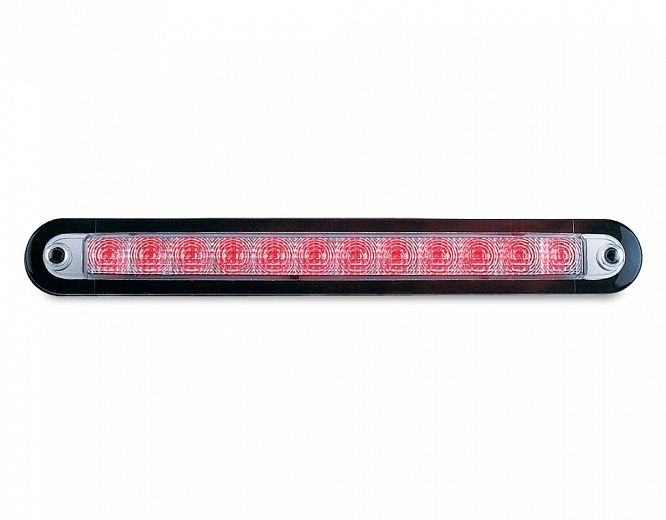

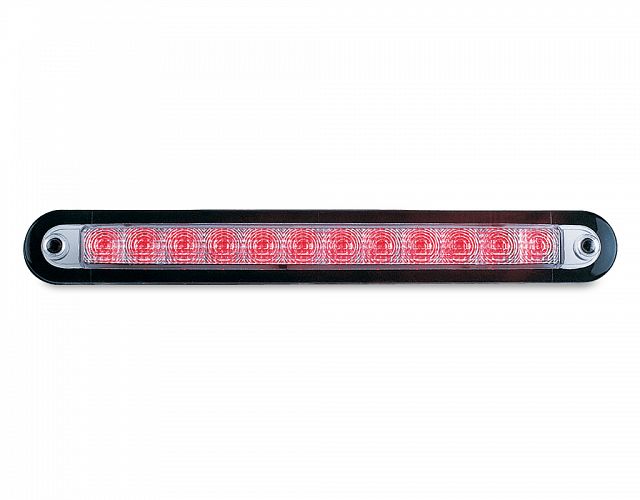

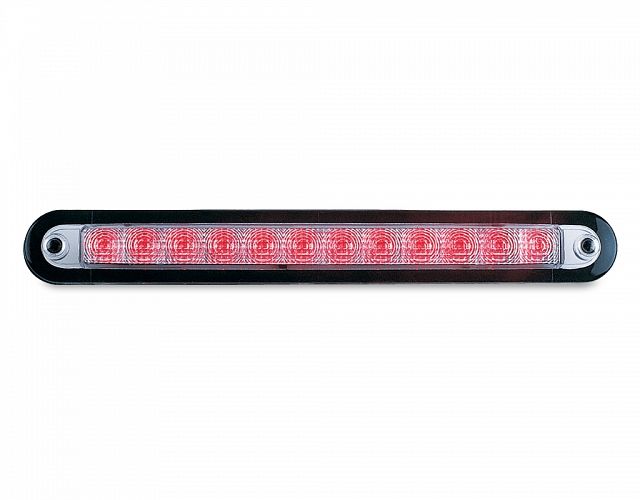

LED Wide Rim Strip Warning Lamp

Covert wide rim strip LED signal warning lamp available in red and blue colour variants. Optic appears clear until illuminated. Includes gasket, screws and screw caps.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED Wide Rim Strip Warning Lamp - 12 Volt - Blue

PART NO: 2XD 959 073-602
Legacy PN: 95907360

LED Wide Rim Strip Warning Lamp - 24 Volt - Blue

PART NO: 2XD 959 073-652
Legacy PN: 95907365

LED Wide Rim Strip Warning Lamp - 12 Volt - Red

PART NO: 2XD 959 073-702
Legacy PN: 95907370

LED Wide Rim Strip Warning Lamp - 24 Volt - Red

PART NO: 2XD 959 073-752
Legacy PN: 95907375

Specifications

Optics

Optic appears clear until illuminated.

Mounting

Two hole recess mount. May be mounted horizontally or vertically.

Power Consumption

2W

Operating Temperature

-40°C to +60°C

Protection

Reverse polarity protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of multi-core cable.

Note

This lamp requires an external flasher unit such as P/N 3040.

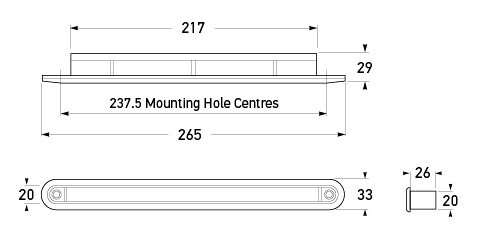

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  9590736X 9590737X Instruction Sheet.pdf 266.18 KB
