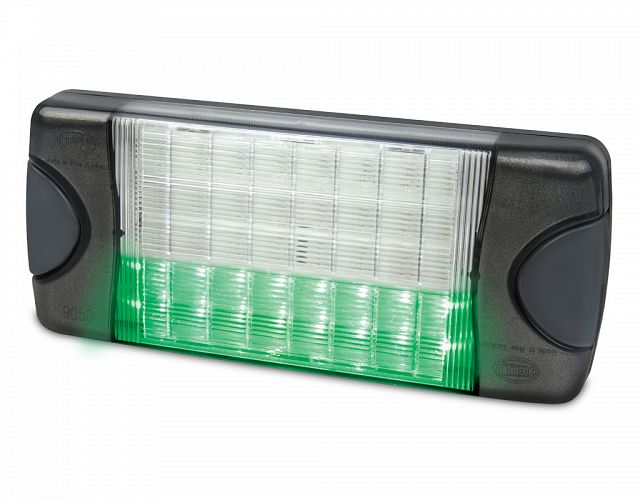

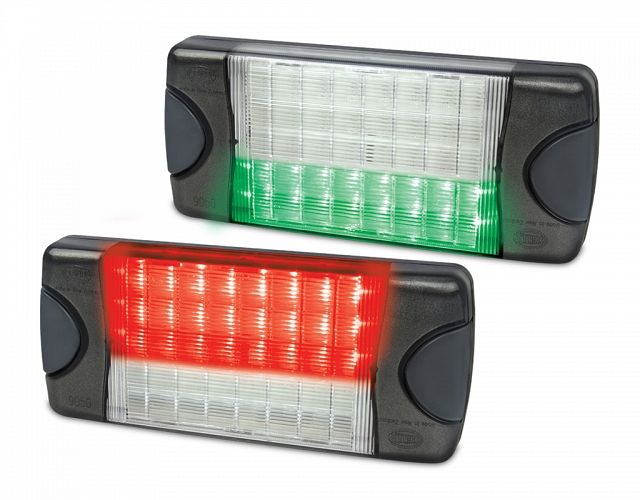

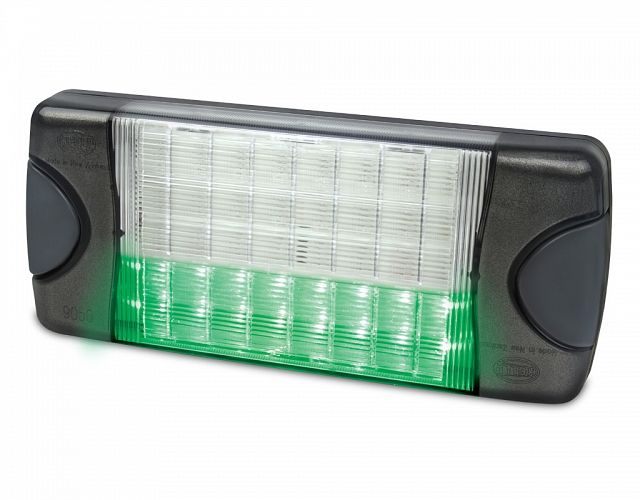

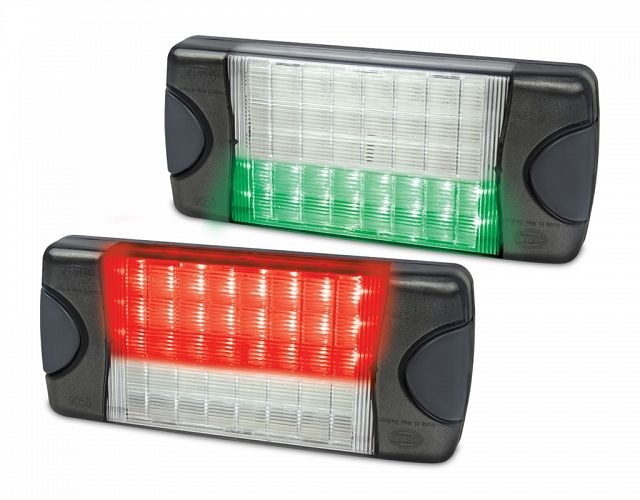

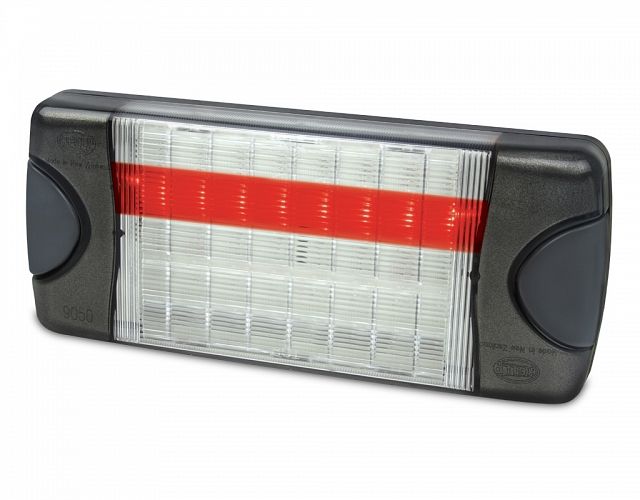

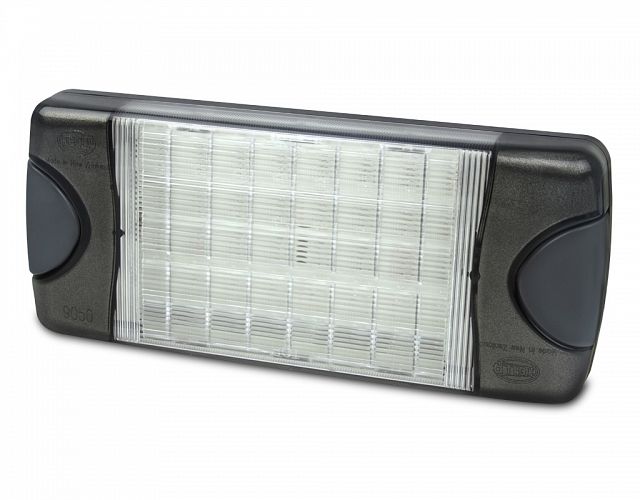

DuraLED® Combi Red/Green Warning Lamp

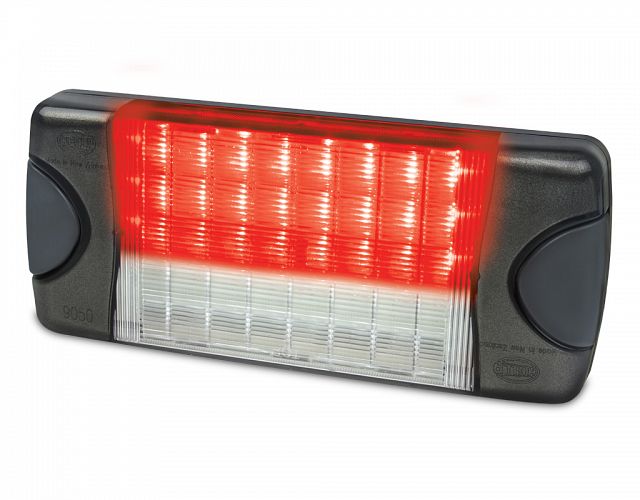

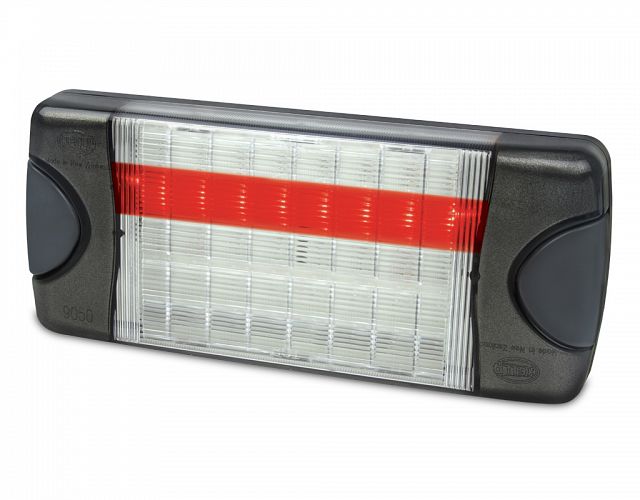

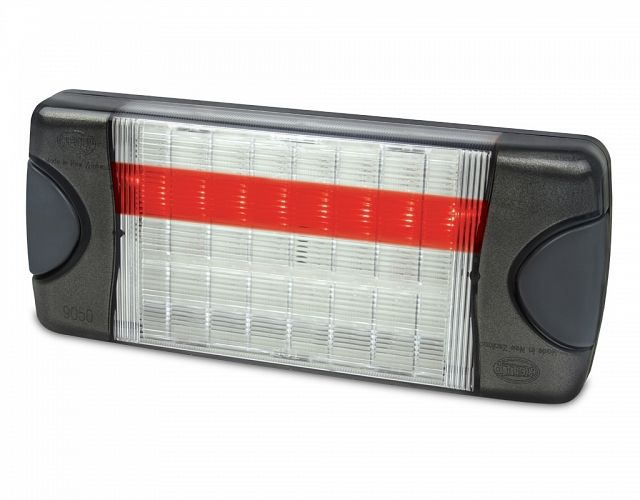

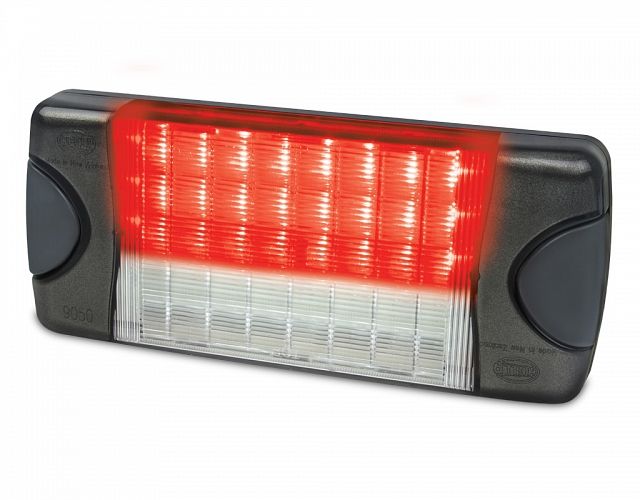

This DuraLED® red/green warning lamp is designed as a stop/go lamp to signal when it is safe or dangerous to approach and/or work on a vehicle. The red signal has two outputs, either 1.5W or 6W, allowing the lamp to function even for long periods (e.g. overnight) without draining batteries. It may also be used as a signal when it is safe/not safe to pass a slow vehicle (e.g. on a closed road).

Featuring a high performance impact resistance Grilamid® lens, it is completely sealed, UV, impact and shock resistant, ensuring an ultra-long service life. Multivolt™ circuitry provides constant illumination and circuit protection from 9-33V DC, even under severe voltage fluctuations.

DuraLED® Combi LED lamps offer class leading energy efficiency and unmatched durability. HELLA’s ‘Fit and Forget’ by Design-Philosophy ensures the service life of this lamp is aimed to outlast the life of your vehicle.

To find a HELLA reseller near you, click here.

    DuraLED® Lifetime Warranty
All HELLA DuraLED® products carry a Lifetime Warranty.
Note: Lifetime means the economic life of the vehicle these products were first installed on.





Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Made in New Zealand

Options

DuraLED® Combi Red/Green Warning Lamp

DuraLED® Combi Red/Green Warning Lamp

2XA 959 050-321

Specifications

Mounting

Surface mount with mounting bushes supplied.

Voltage

Multivolt for optimum brightness in 12 and 24 volt systems.

Power Consumption

Red:       1.5W/6W
Green:   3W

Protection

Reverse polarity and transient spike circuit protection.
IP 6K6   (Protection against dust and high-pressure water jets)
IP 6K7   (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 6.0m of sheathed multi-core cable.

Lens Material

Grilamid®

Compliance

CE

Note

Light output suitability is at the discretion of the installer.

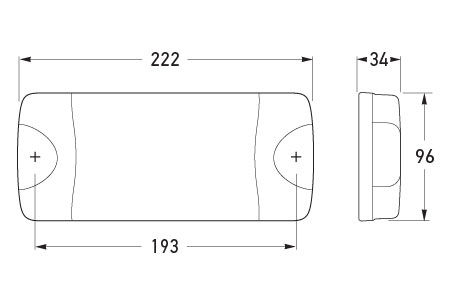

Outline

All dimensions in mm.
All dimensions in mm.
