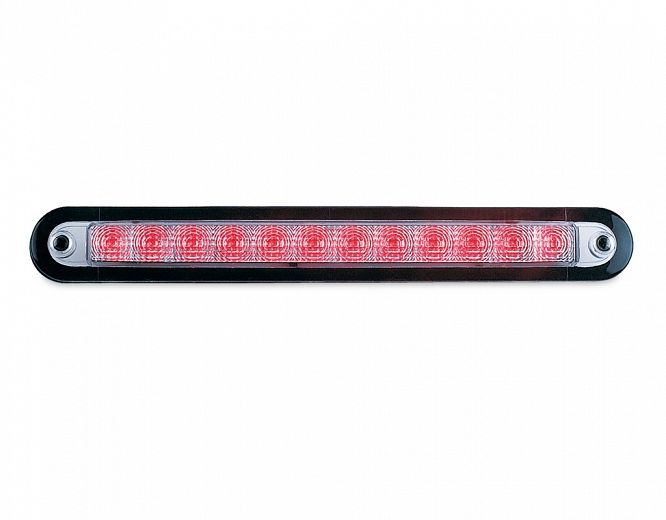

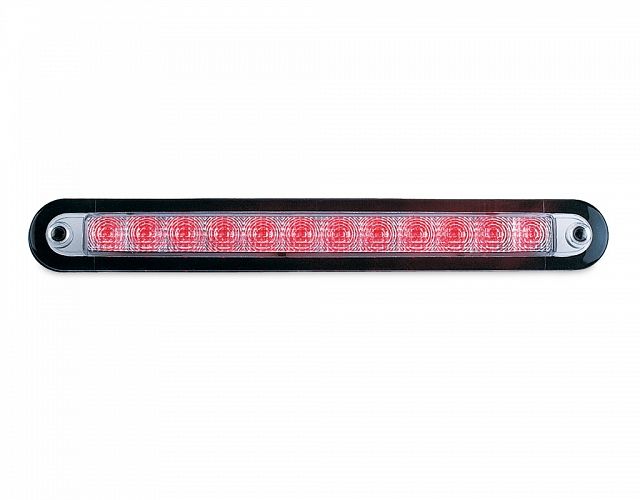

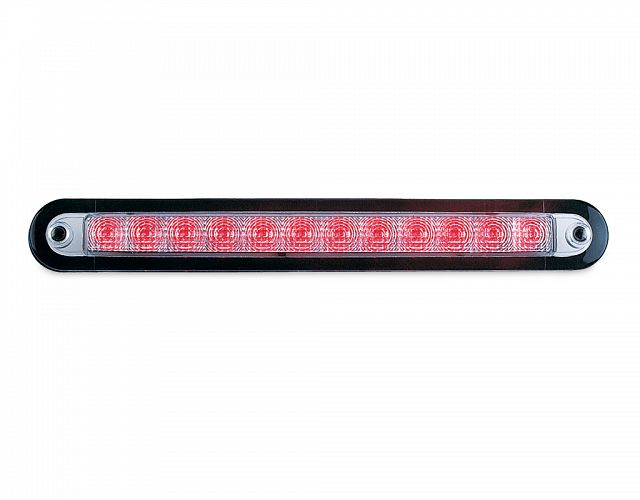

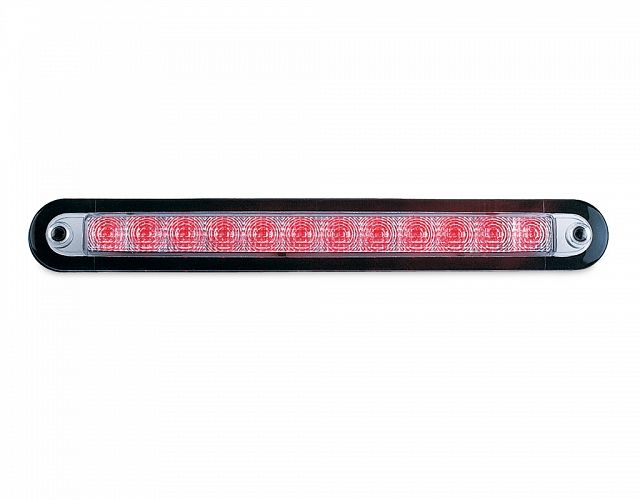

LED Wide Rim Strip Lamp

Covert wide rim strip LED signal warning lamps available in red and blue colour variants. Optic appears clear until illuminated.

Features RFCommSafe™
To view and download more information please click here

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED Wide Rim Strip Lamp - 12 Volt - Red

LED Wide Rim Strip Lamp - 12 Volt - Red

2XD 959 073-701
LED Wide Rim Strip Lamp - 24 Volt - Red

LED Wide Rim Strip Lamp - 24 Volt - Red

2XD 959 073-751
LED Wide Rim Strip Lamp - 12 Volt - Blue

LED Wide Rim Strip Lamp - 12 Volt - Blue

2XD 959 073-601
LED Wide Rim Strip Lamp - 24 Volt - Blue

LED Wide Rim Strip Lamp - 24 Volt - Blue

2XD 959 073-651

Specifications

Mounting

Two hole recess mount.

Power Consumption

2W

Protection

Reverse polarity protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Lens Material

PMMA

Note

Includes gasket, screws and screw caps.

Spare Part

9GD 959 155-507 Seal

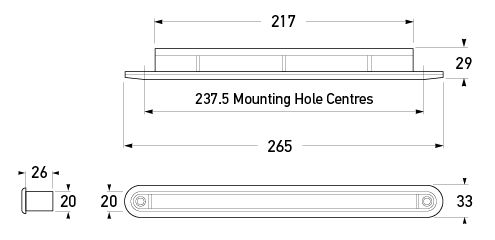

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2XD 959 073-xxx Instruction Sheet.pdf 234.67 KB
