HELLA

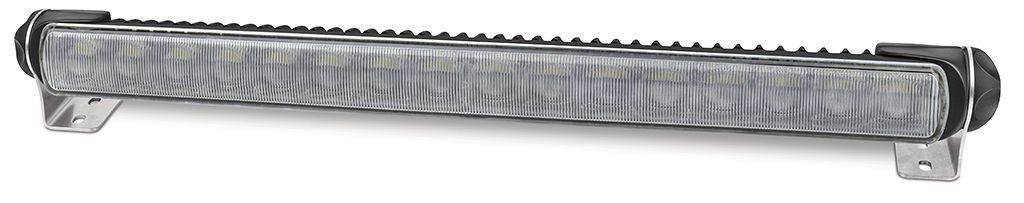

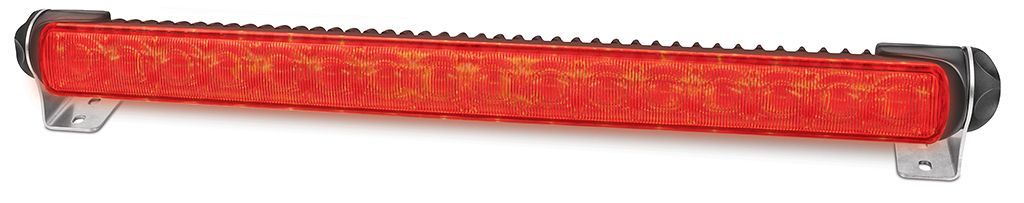

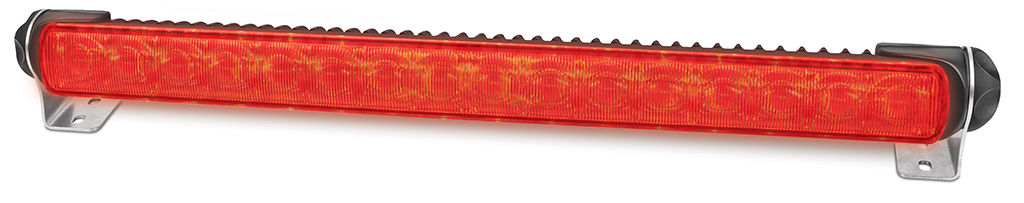

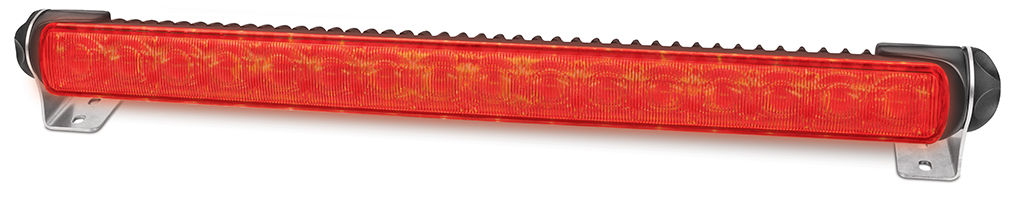

BL470 RED LED WARNING LAMP

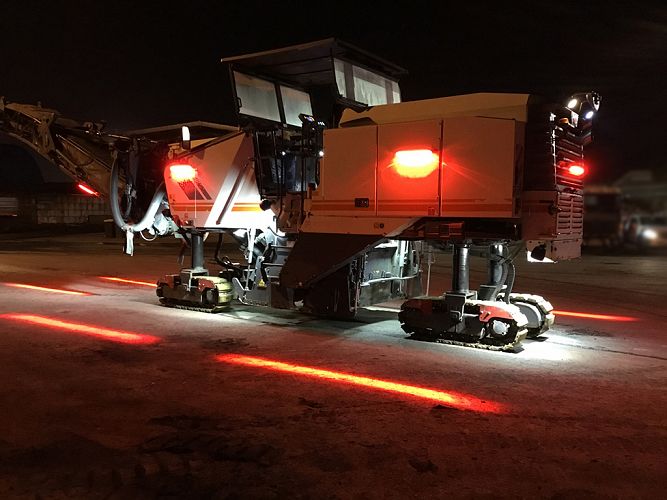

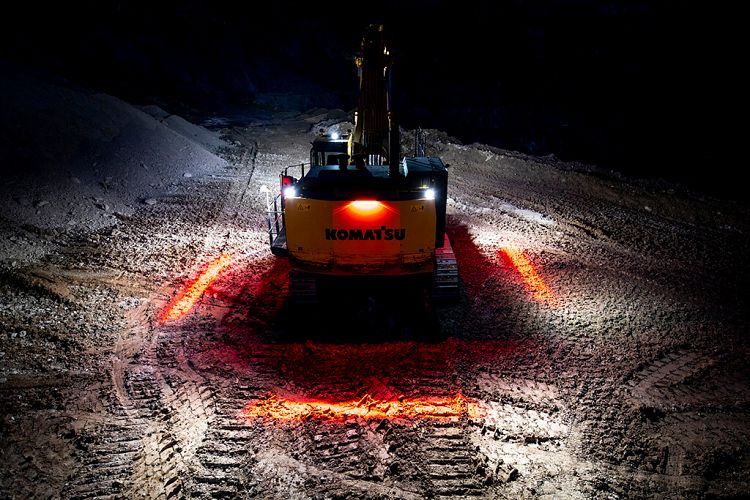

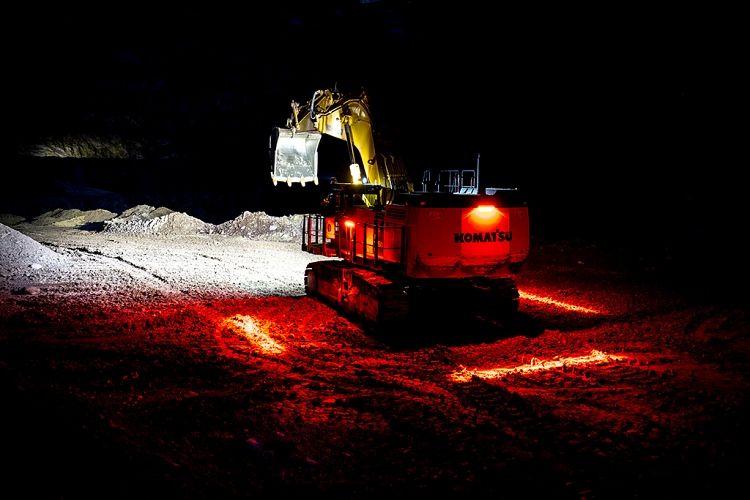

RED STRIPE INDICATES A NO-GO ZONE

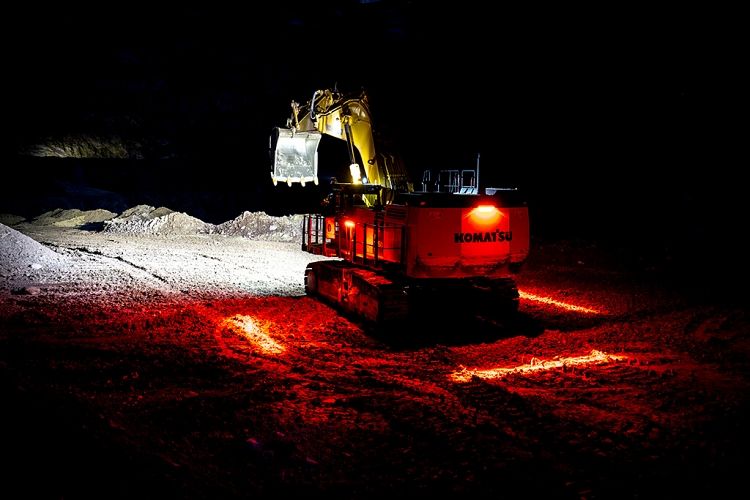

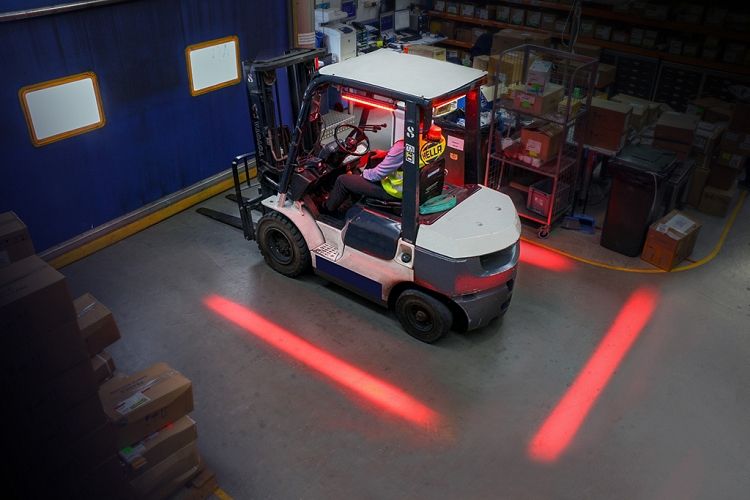

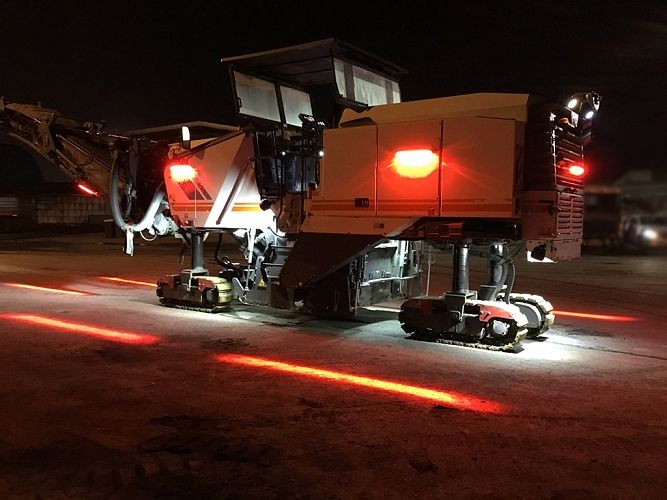

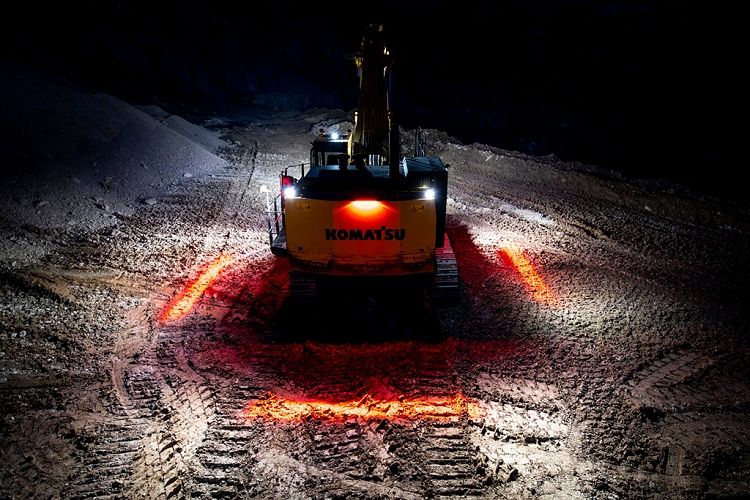

Vehicle lighting plays an important role in protecting employees from the potential dangers of moving machinery. The innovative BL470 Red LED warning lamp from HELLA is fitted with the new VISIOTECH technology. A special lens optic allows the light rays to converge and become so sharply focused that a strip-shaped warning line is projected onto the ground. The powerful red safety strip of light indicates a no-go zone to keep staff and pedestrians at a safe distance. Occupational safety plus operator comfort and convenience are significantly improved meaning accidents can be prevented from the outset.

Providing unmatched corrosion resistance due to an innovative thermally conductive polymer housing and the toughness of a UV, chemical and impact resistant Grilamid® lens, the BL470 lamp is the natural choice when exceptional durability and long-term reliability in demanding environments is needed.

The BL470 Red LED Warning Lamp also features Multivolt™ circuitry making it suitable for 12V or 24V DC systems. Completely sealed and covered by a 5 year warranty for complete peace of mind.

SUITABLE FOR:

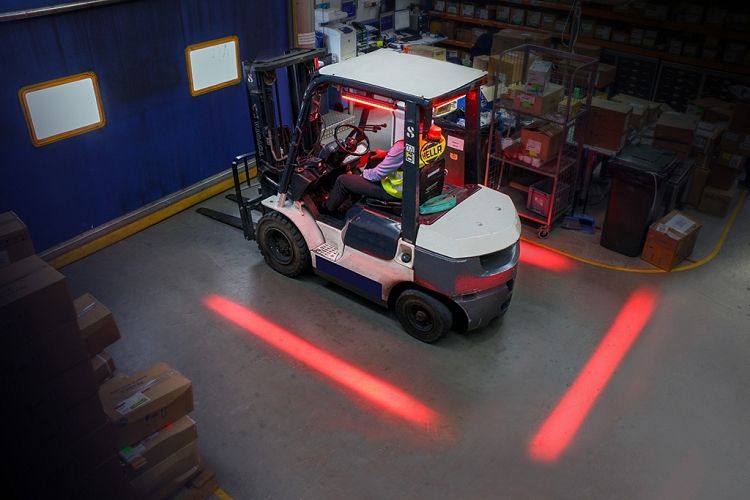

Forklifts, Earth Moving Equipment, Construction, Mining Industry, Trucks, Disabled Person Transports and Emergency Vehicles.

• VISIOTECH projection technology for communication by using light

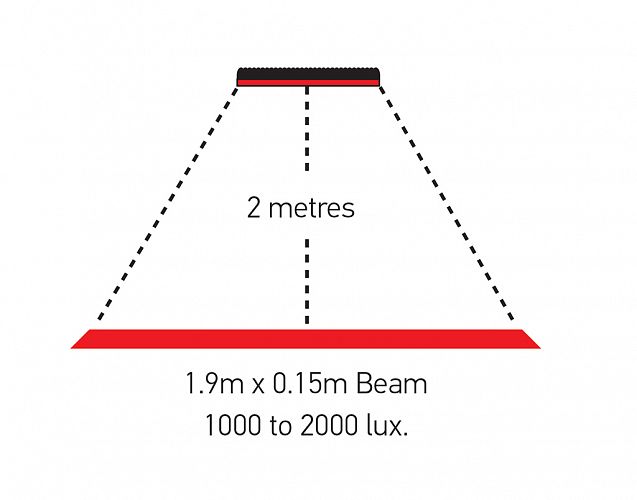

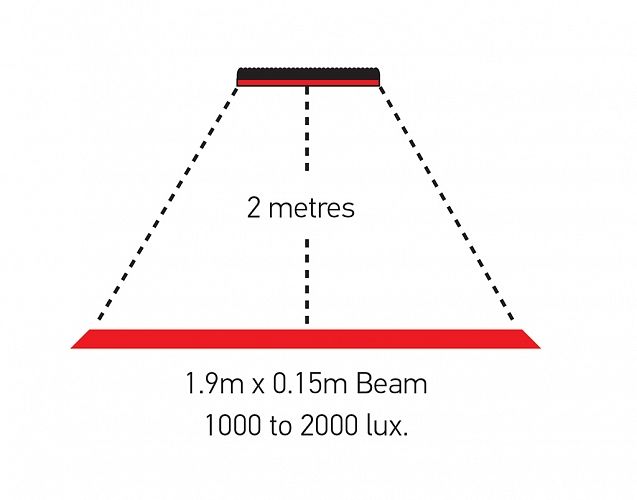

• Projects a red strip-shaped warning line
• Increases safety by indicating danger zone
• Low power consumption of less than 25W
• Fully sealed against dust and moisture
• 5 Year Warranty


To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Corrosion Proof

Benefits include strength and corrosion resistance.

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

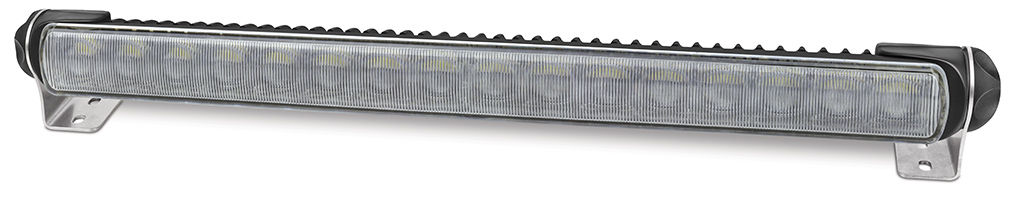

BL470 Red LED Warning Lamp - Red Stripe indicates a No-Go Zone

BL470 Red LED Warning Lamp - Red Stripe indicates a No-Go Zone

2XD 958 130-661

Specifications

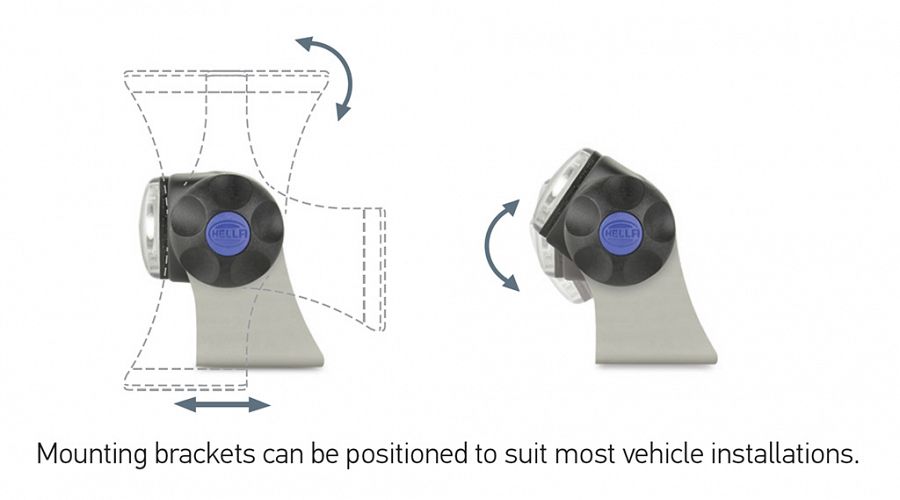

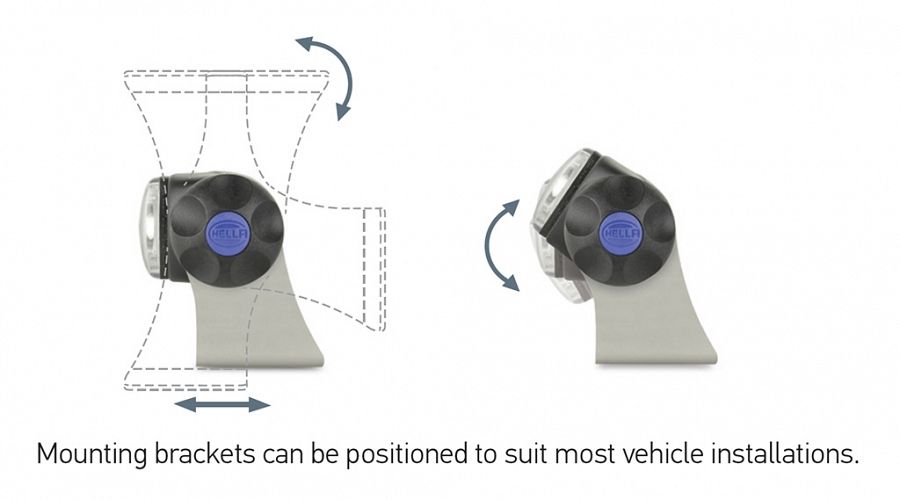

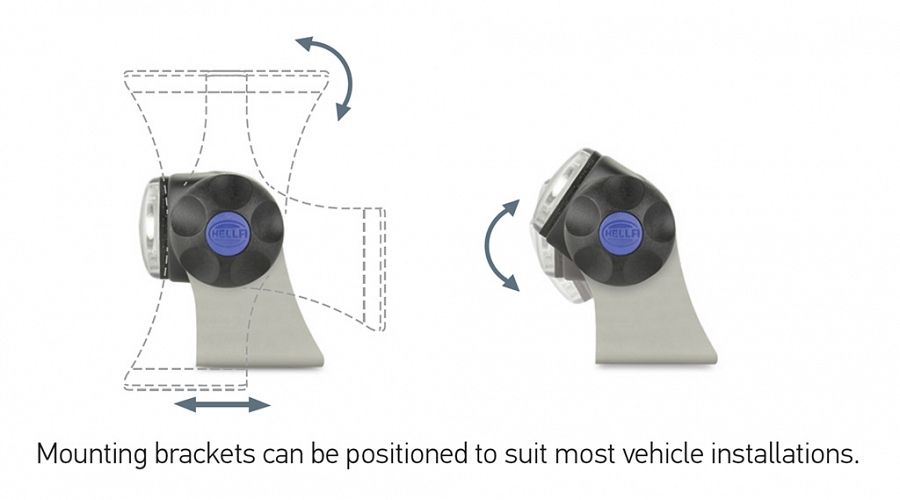

Mounting

Horizontal mounting. Upright or pendant.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

25W

Protection

Reverse polarity and transient spike protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of tinned multi-core cable.

Lens Material

Grilamid®

Accessories

8HG 958 128-811 Double stainless steel mounting feet (one pair)

Compliance

CE

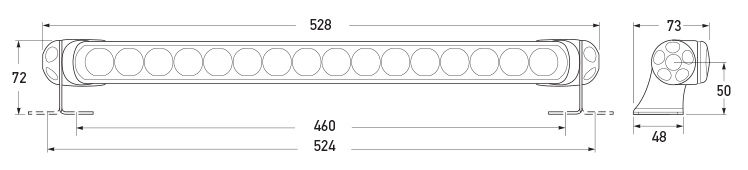

Outline

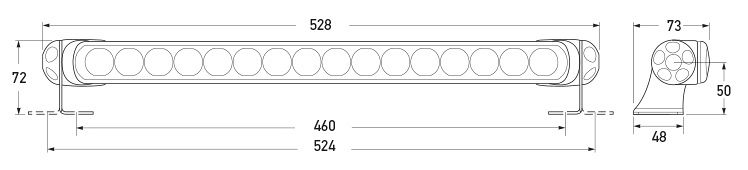

BL470 Red Warning Lamp Dimensions Diagram
BL470 Red Warning Lamp Dimensions Diagram
