HELLA

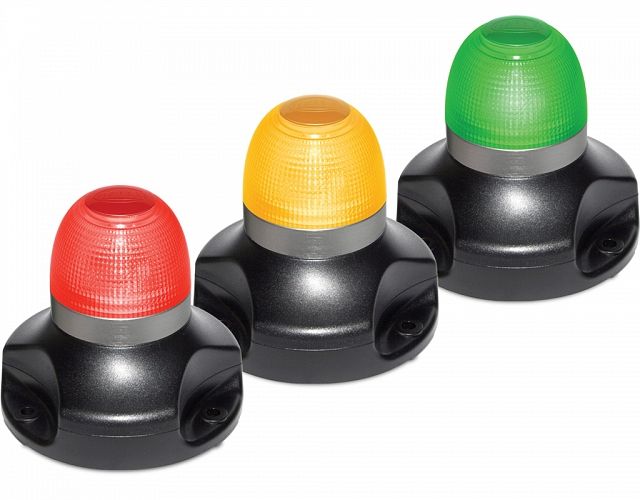

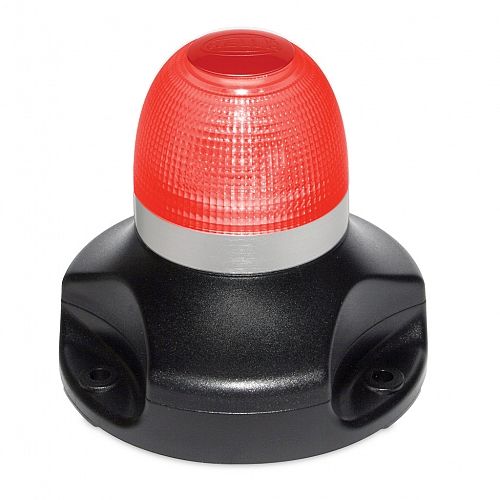

LED 360° Signal Lamp

Multi-purpose LED 360º warning lamp available in four signal colours and white.

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED 360° Signal Lamp - White with Black Housing

LED 360° Signal Lamp - White with Black Housing

2XA 980 910-041

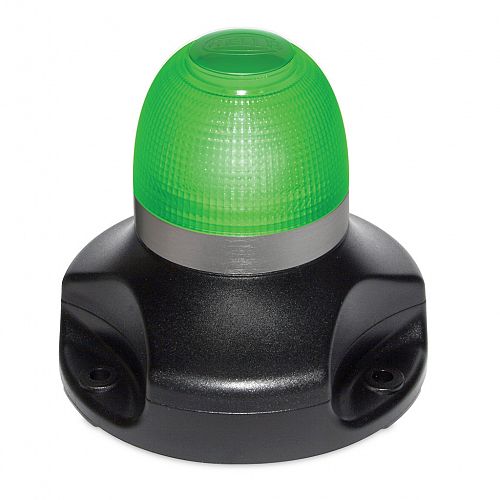

LED 360° Signal Lamp - Green with Black Housing

LED 360° Signal Lamp - Green with Black Housing

2XA 980 910-241

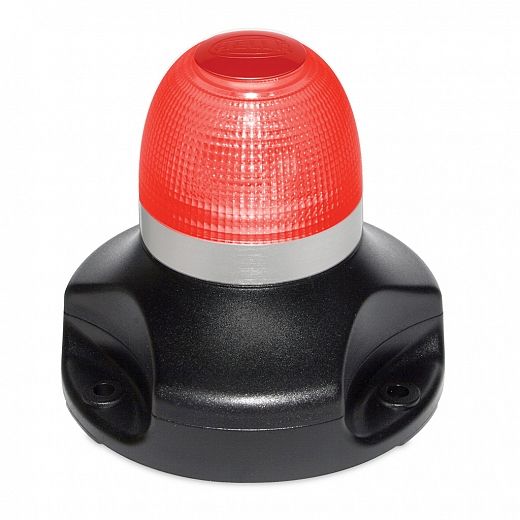

LED 360° Signal Lamp - Red with Black Housing

LED 360° Signal Lamp - Red with Black Housing

2XA 980 910-441

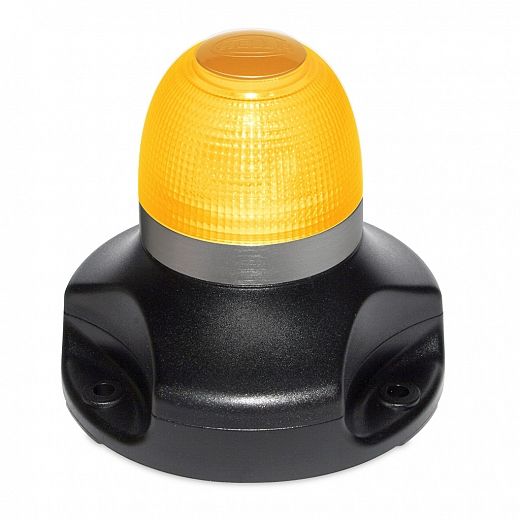

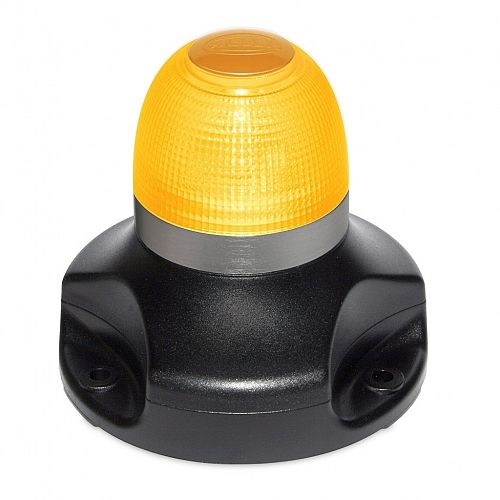

LED 360° Signal Lamp - Amber with Black Housing

LED 360° Signal Lamp - Amber with Black Housing

2XA 980 910-641

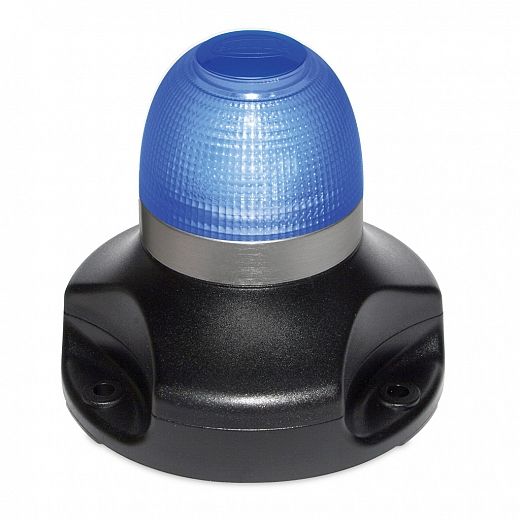

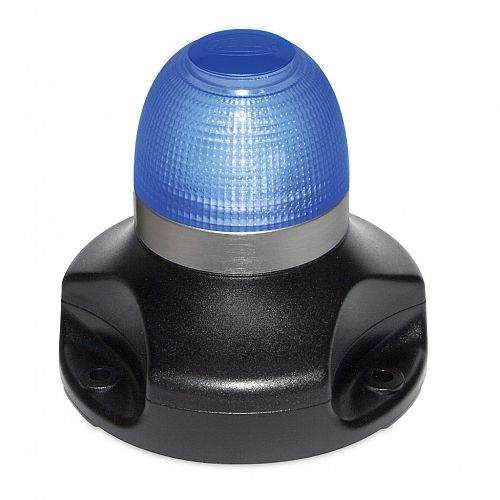

LED 360° Signal Lamp - Blue with Black Housing

LED 360° Signal Lamp - Blue with Black Housing

2XA 980 910-741

Specifications

Mounting

Suitable for upright mounting with three point mount.

Voltage

Multivolt for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

5W continuous

Protection

Reverse polarity, spike and over voltage protection.
IP 67 (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Lens Material

Grilamid®

Approval Markings

e4 10R 04-2914

Note

These lamps are not ECE compliant.

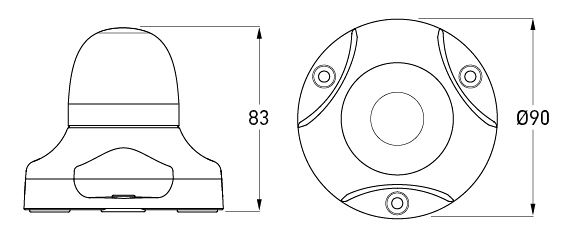

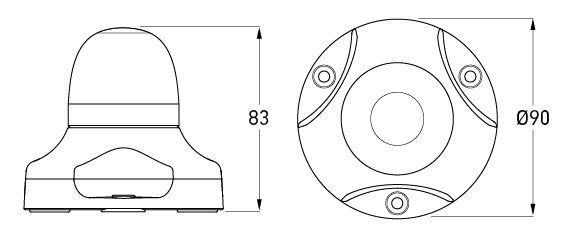

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2XA 980 910-xx Instruction Sheet.pdf 278.33 KB
