HELLA

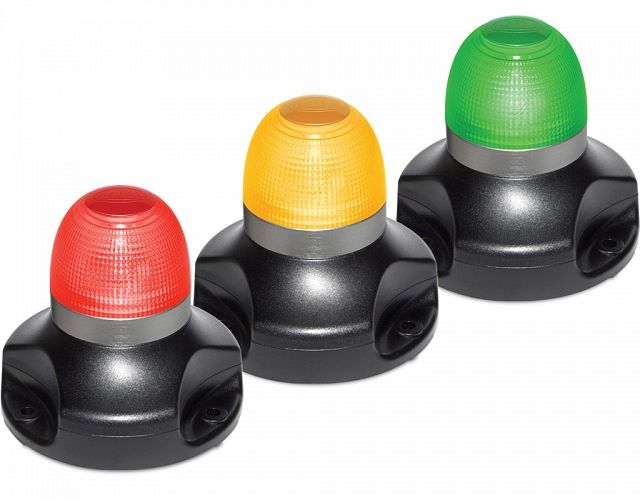

LED 360° Signal Warning Lamp

Multi-purpose LED 360º warning lamps with Grilamid® lens available in four signal colours and white. Optics appear clear until illuminated.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

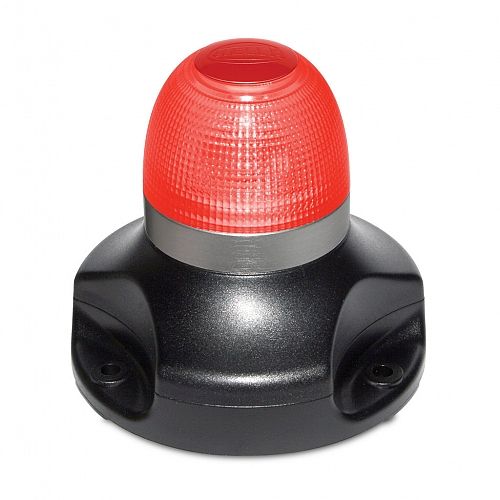

LED 360° Warning Lamp - Red

PART NO: 2XA 980 910-442
Legacy PN: 98091044

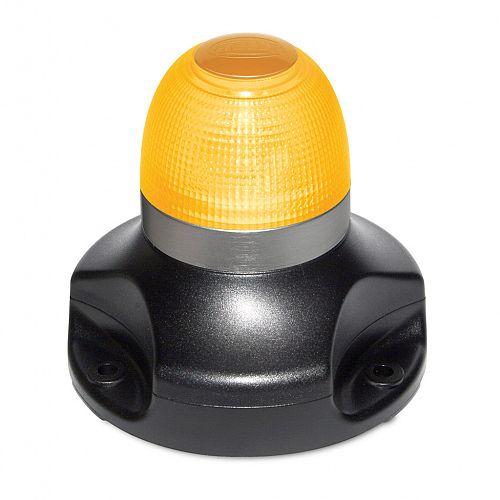

LED 360° Warning Lamp - Amber

PART NO: 2XA 980 910-642
Legacy PN: 98091064

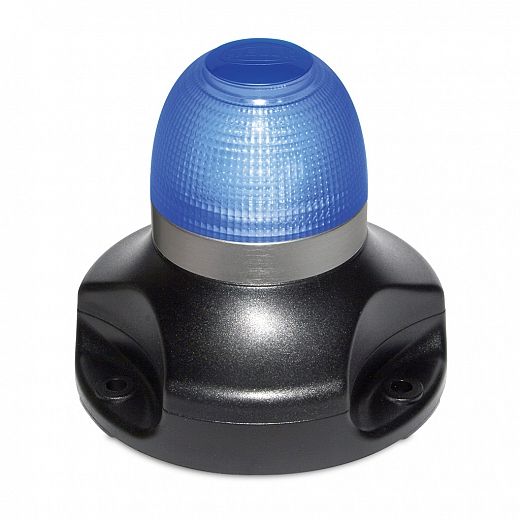

LED 360° Warning Lamp - Blue

PART NO: 2XA 980 910-742
Legacy PN: 98091074

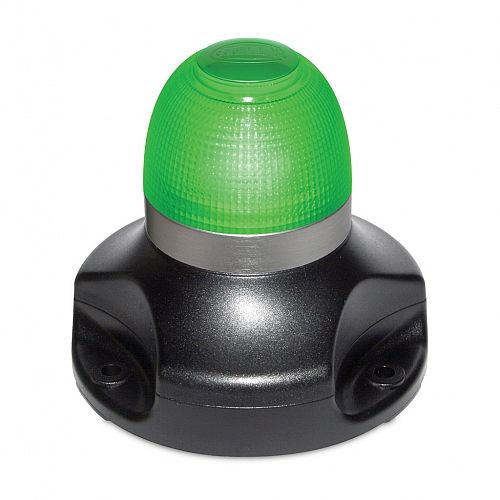

LED 360° Warning Lamp - Green

PART NO: 2XA 980 910-242
Legacy PN: 98091024

LED 360° Warning Lamp - White

PART NO: 2XA 980 910-042
Legacy PN: 98091004

Specifications

Optics

Optic appears clear until illuminated.

Mounting

Upright mounting with three point mount.

Voltage

Multivolt for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

5W

Protection

Reverse polarity and voltage spike protection.
IP 67 (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Lens Material

Grilamid®

Compliance

EMC e4 03 1679

Note

This lamp requires an external flasher unit such as P/N 3040.

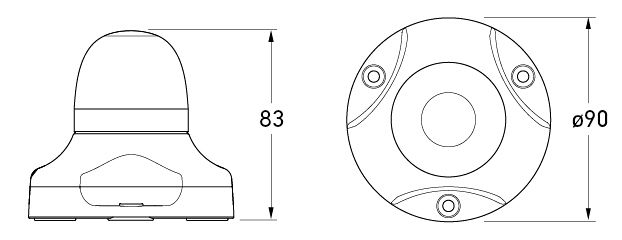

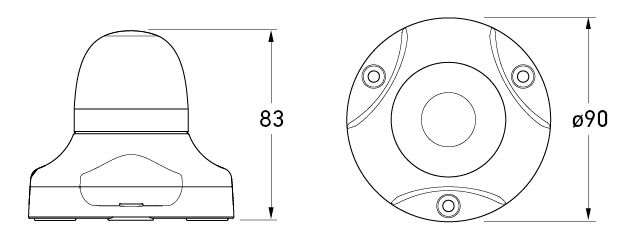

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  980910xx Instruction Sheet.pdf 278.33 KB
