HELLA

Headlamp Assembly - H4 Halogen High/Low Beam

Lamp unit, lens dimensions 352 x 195mm, complete with mounting frame and adjusting mechanisms for vertical and horizontal alignment. Fully enclosed housing with removable rear sealing cap for bulb replacement access. Ideal for truck, bus or body builders.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

12 Volt Bulb Included

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

Headlamp Assembly - H4 Halogen High/Low Beam

PART NO: 1LG 003 434-182
Legacy PN: 1027

Specifications

Mounting

Simple four point mounting.

Bulbs to Suit

  12V 24V
Headlamp: XD1260/55 XD2475/70
Front Position: HL124 HL244

Spare Parts

9.1027.01 Clear lens
9.1027.02 Reflector

Compliance

E1 17016

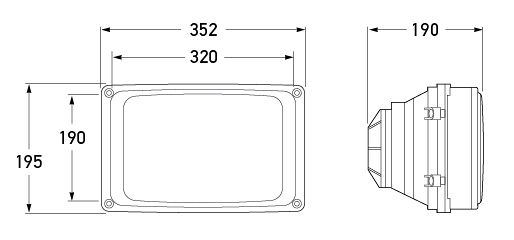

Outline

All dimensions in mm.
All dimensions in mm.
