HELLA

90mm H1 Headlamp

H1 headlamps with die cast aluminium reflector and hardened glass lens.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

24 Volt Bulb Included

Options

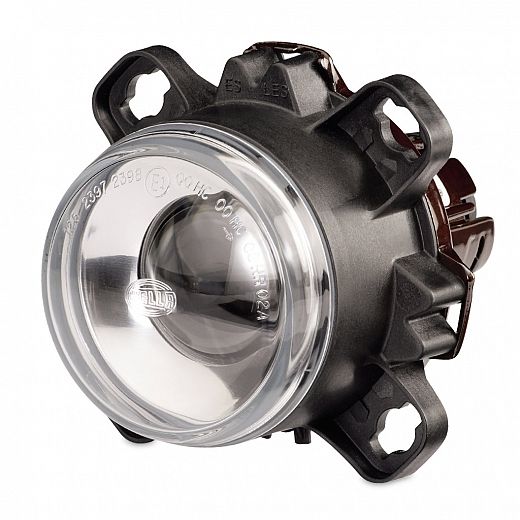

90mm H1 Headlamp - Dipped Beam

90mm H1 Headlamp - Dipped Beam

1029H1-24V

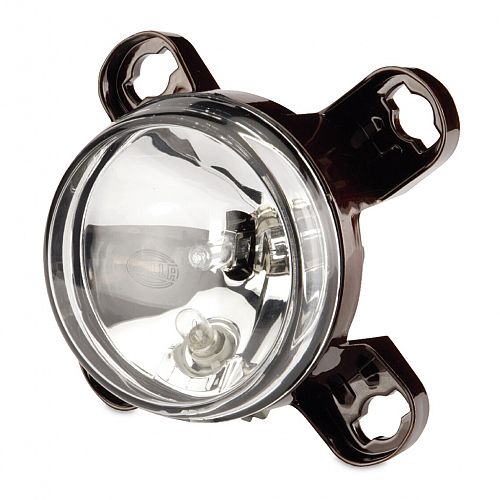

90mm H1 Headlamp - Main Beam

90mm H1 Headlamp - Main Beam

1030H1-24V

Specifications

Bulbs to Suit

  12V 24V
Dipped/Main beam: C1255 C2470
Position (1030H1-24V only): HL124 HL244

Spare Parts

9GH 152 654-007 Rear cap
8JD 156 150-807 Two pole plug with terminals and seals
9.1029.10 Mounting frame

Compliance

E1 2397

Outline

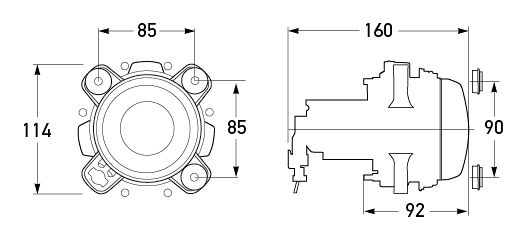

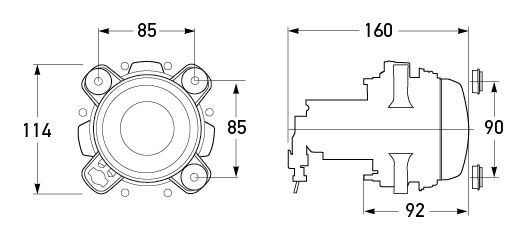

P/N 1029H1-24V (Dipped Beam) - All dimensions in mm.
P/N 1029H1-24V (Dipped Beam) - All dimensions in mm.

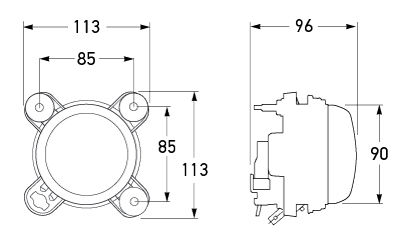

P/N 1030H1-24V (Main Beam) - All dimensions in mm.
P/N 1030H1-24V (Main Beam) - All dimensions in mm.
