HEADLAMP H4 - High/Low Beam and Indicator/Position

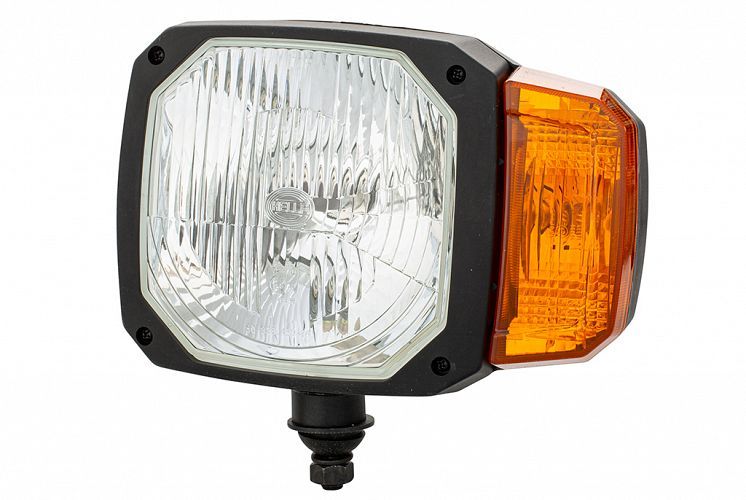

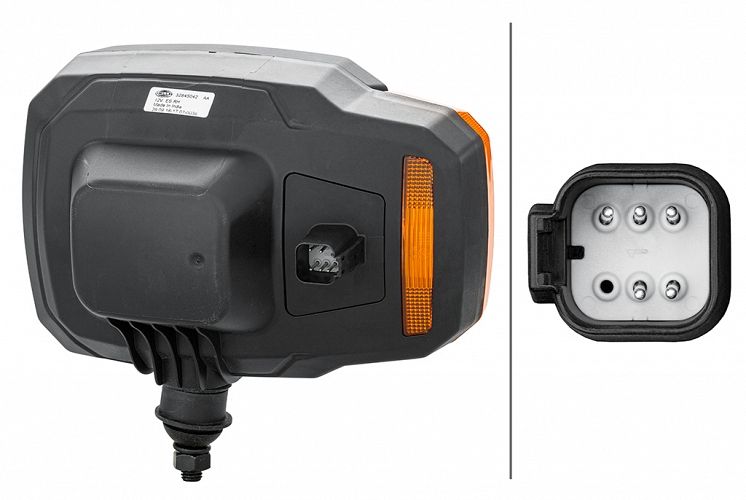

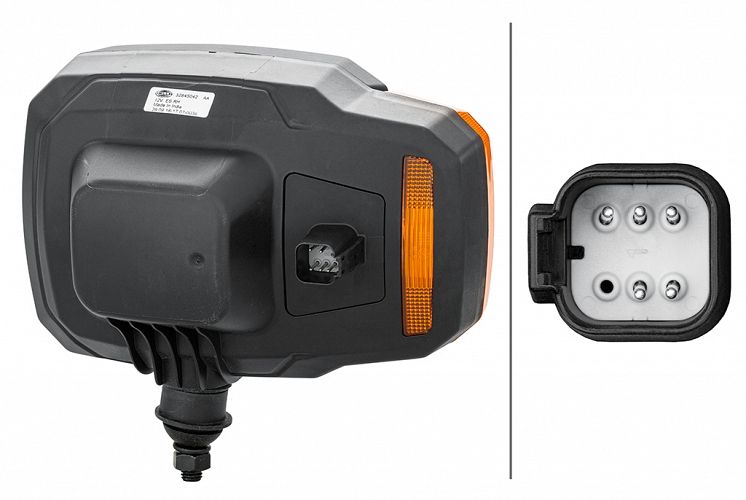

The Headlamp H4 is a robust headlamp in a universal, stylish design. The headlamp is equipped with a die-cast aluminium reflector and a borosilicate lens which provides thermal shock resistance. With its flexible design, upright mounting is possible with a 6-pin DT connector (which is integrated into the housing).

- All in one High/low, indicator and position lamp
- Excellent light performance
- Modern Design
- Universal bolt on headlamp
- Weather proof

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

12 Volt Bulb Included

Options

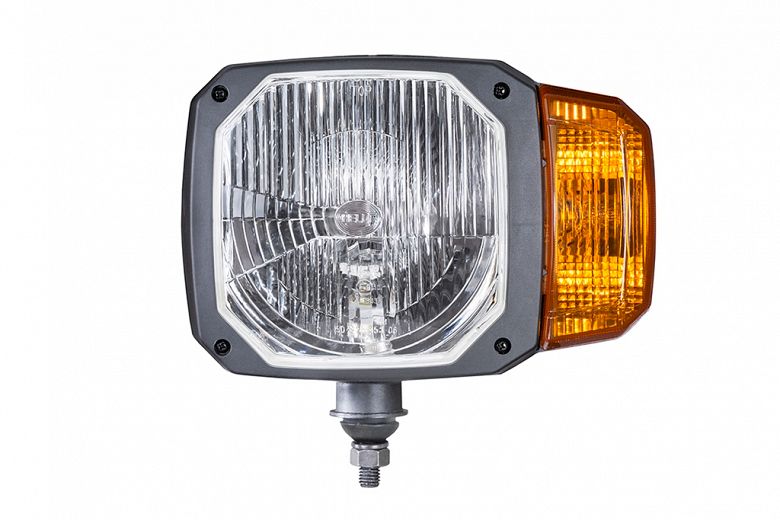

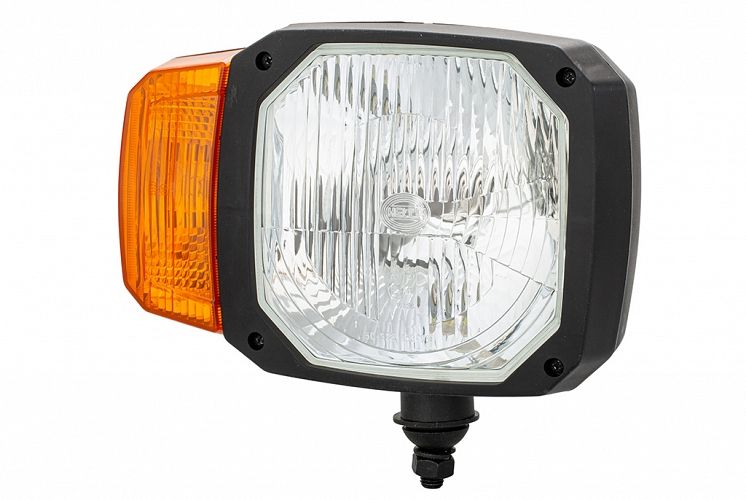

HEADLAMP H4 - High/Low Beam and Indicator/Position - LEFT HAND

HEADLAMP H4 - High/Low Beam and Indicator/Position - LEFT HAND

1LA 328 450-311

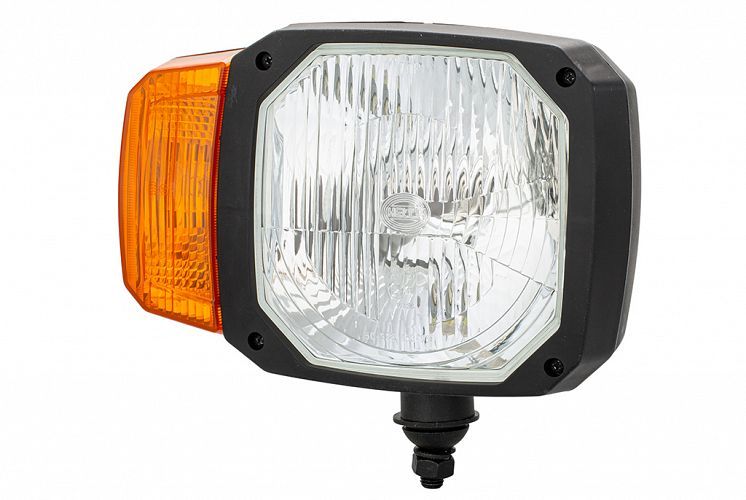

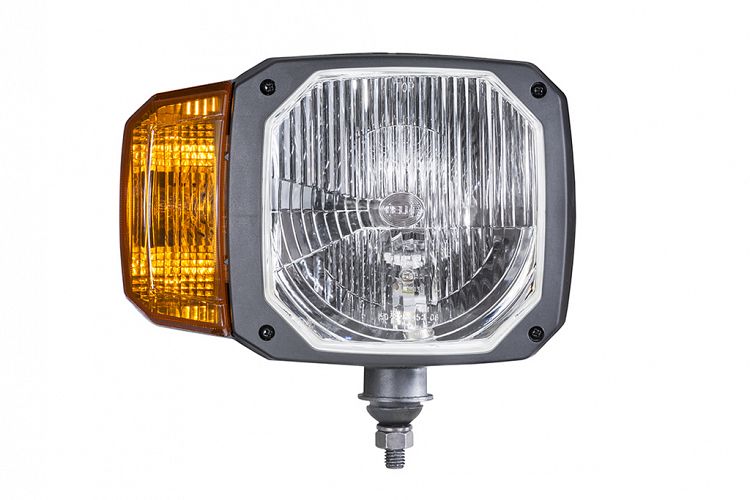

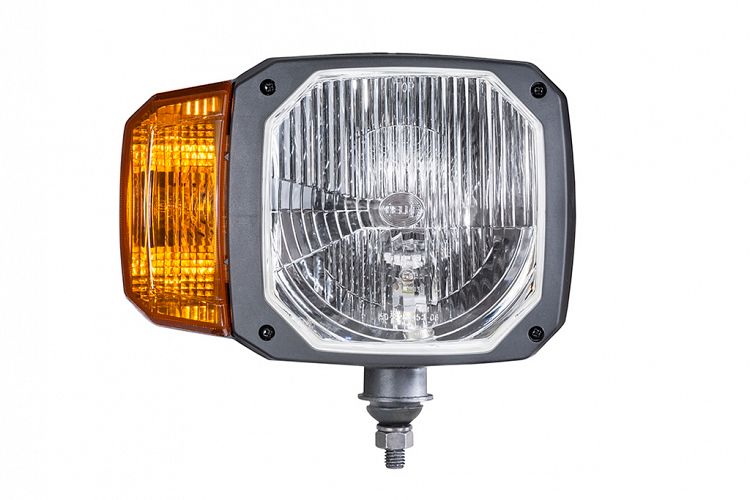

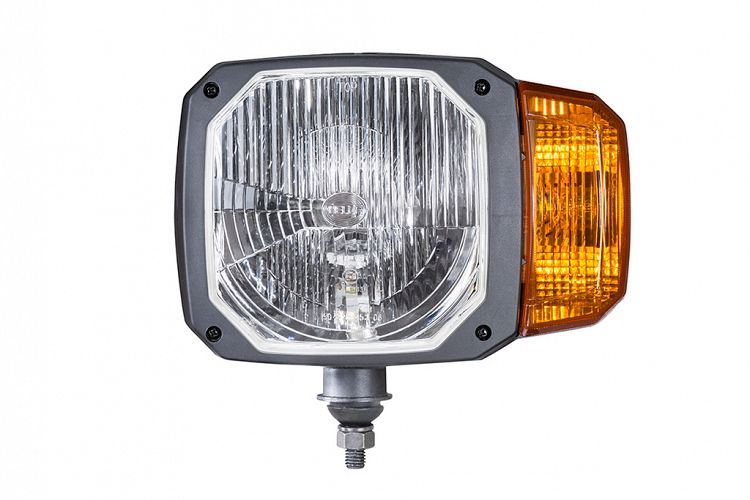

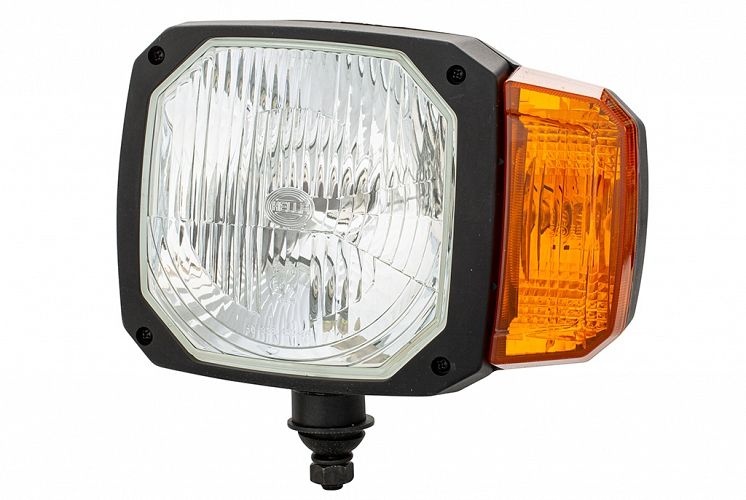

HEADLAMP H4 - High/Low Beam and Indicator/Position - RIGHT HAND

HEADLAMP H4 - High/Low Beam and Indicator/Position - RIGHT HAND

1LA 328 450-321

Specifications

Part Numbers

LEFT HAND 1LA 328 450-311
RIGHT HAND 1LA 328 450-321

Mounting

Single bolt mount, upright.

Bulbs to Suit

  12V 24V
Dipped/Main beam: XD1260/55 XD2475/70
Indicator: R1221 R2421
Position: HL124 HL244

Voltage

12V or 24V systems.

Protection

IP 6K9K           (Protection against dust and high-pressure/steam jet cleaning)

Accessories

4963-P  6 pole DT plug, wedge, 6 contacts and 2 sealing plugs

Compliance

E9  16338/16339 CE

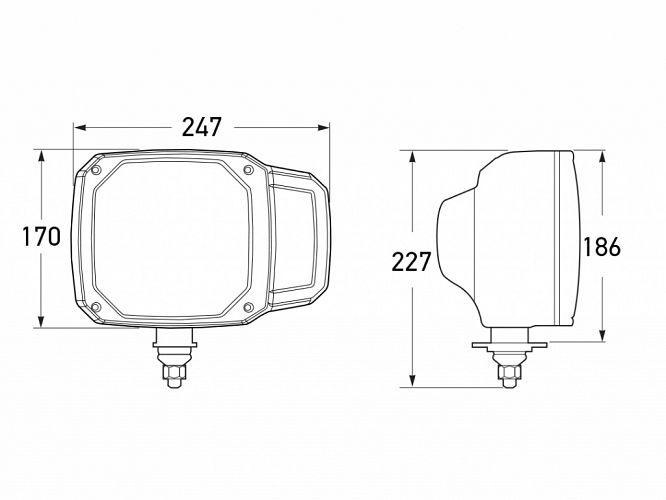

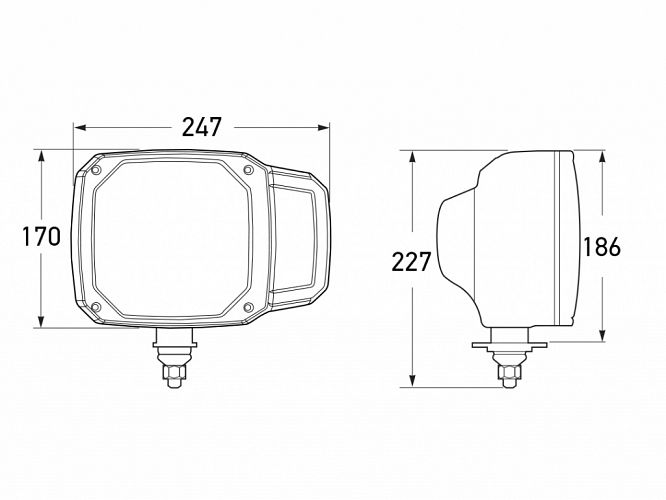

Outline

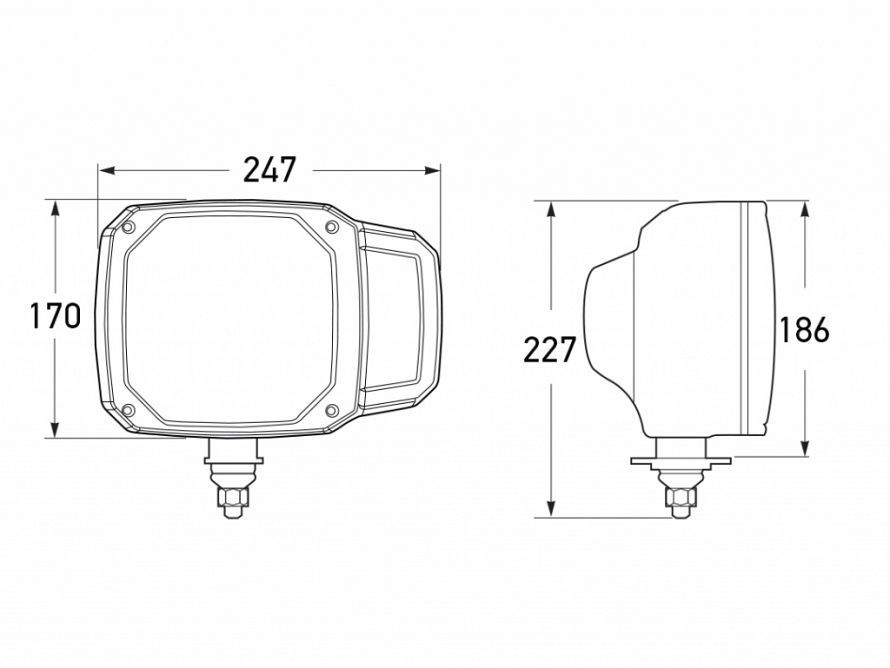

Dimensions in mm.
Dimensions in mm.
