LED Hand Held Spot Lamp

The LED hand held spot lamp only uses 1/3 of the power consumption of the 1520. It has a compact size and light weight, and is comfortable to hold even for long periods.

The LED spot lamp comes with a spiral plug-in cable (which can stretch up to 3.5m) and a DT connector, which allows a custom cable to be fitted to suit your own requirements.

LED hand held spot lamp is supplied with a HELLA carry bag and battery clips to power socket adaptor.

To find a HELLA reseller near you, click here.

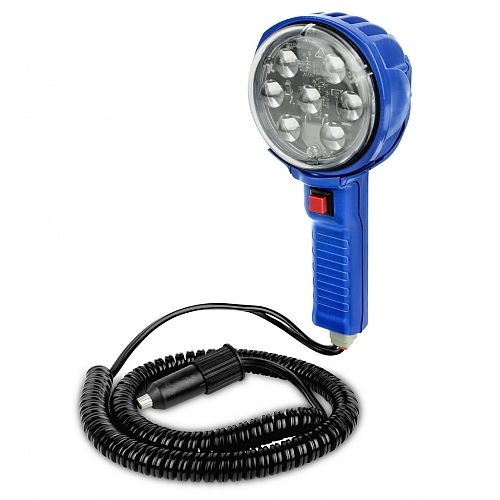

P/N 1520LED (Long Range)
P/N 1521LED (Medium Range)

P/N 1520LED (Long Range) <br> P/N 1521LED (Medium Range)

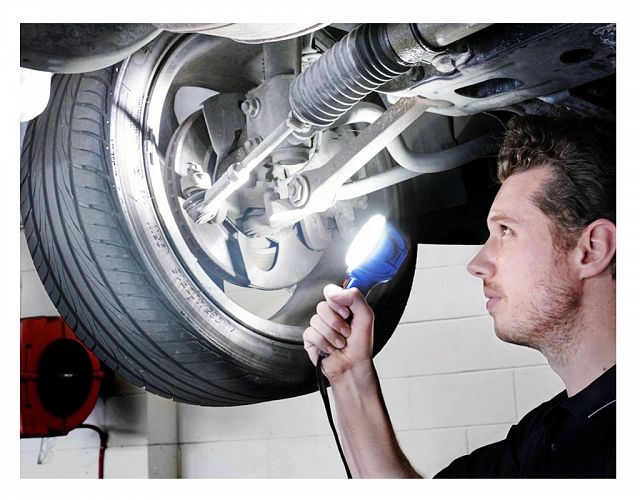

LED Hand Held Spot Lamp - Workshop Application

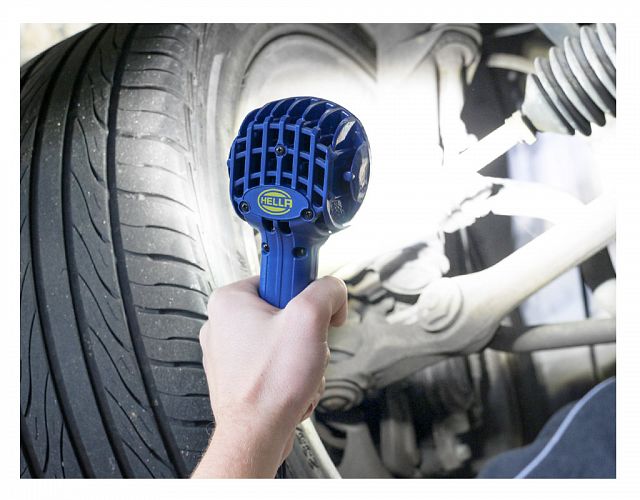

LED Hand Held Spot Lamp - Back View

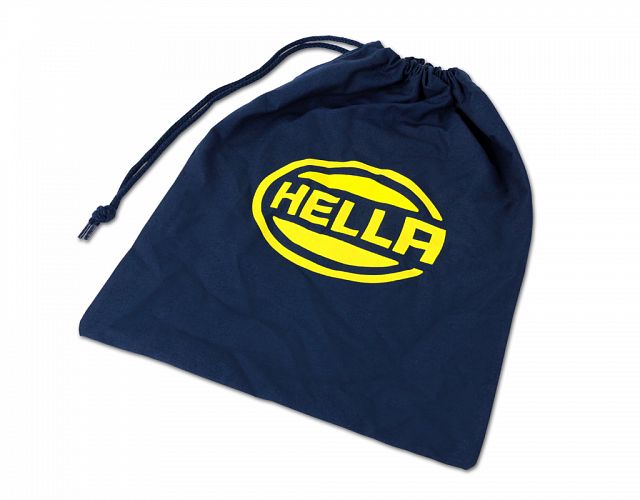

HELLA Carry Bag (Supplied)

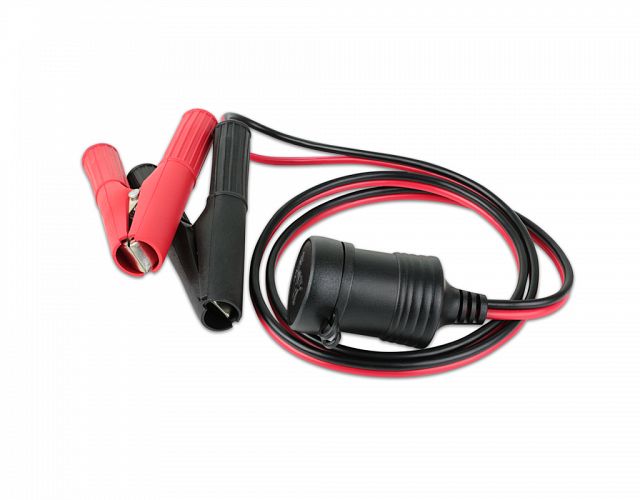

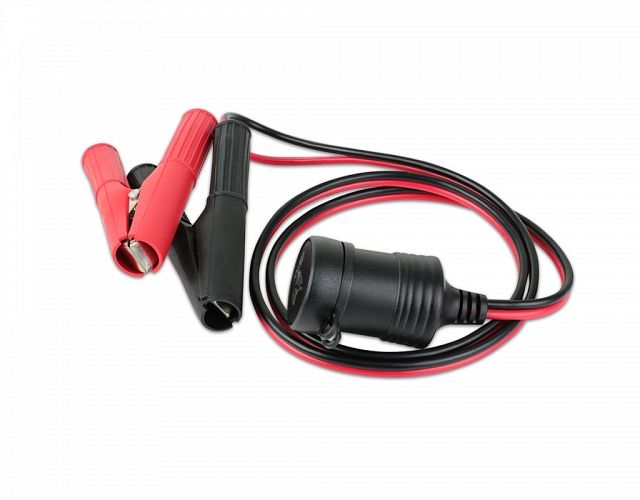

Battery Clips to Power Socket Adaptor. (Supplied)

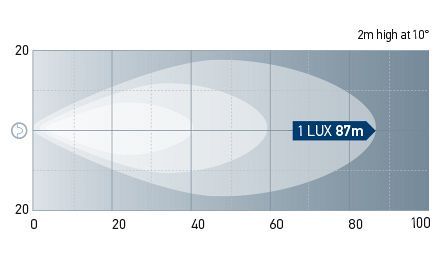

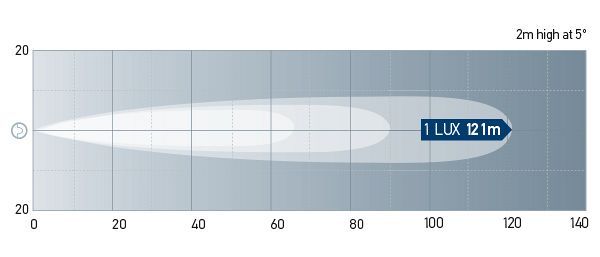

Beam Pattern: 1520LED Long Range.

Beam Pattern: 1521LED Medium Range. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.

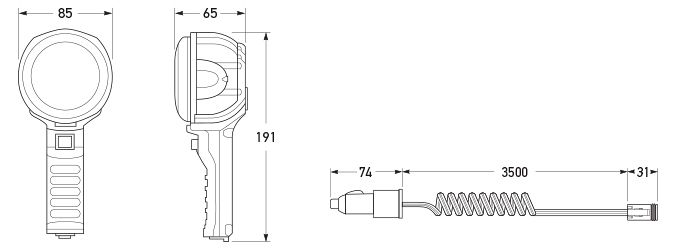

LED hand held spot lamp with cable and plug. All dimensions in mm.

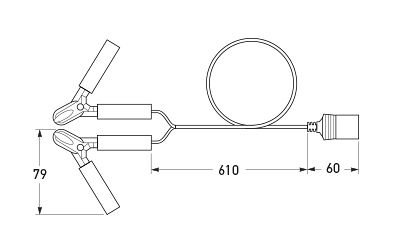

Adaptor. All dimensions in mm.

Rollover/tap the icons below for further details:

LED Technology

12 Volt

Suitable only for 12VDC applications.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

LED Hand Held Spot Lamp - Long Range

PART NO: 2XM 958 372-001
Legacy PN: 1520LED

Add to favourites

LED Hand Held Spot Lamp - Medium Range

PART NO: 2XM 958 373-001
Legacy PN: 1521LED

Add to favourites

Specifications

Voltage	10-16 V DC
Power Consumption	35W
Light Output	1350 lumen
Cable Length	Up to 3.5m
Lens Material	Polycarbonate
Weight	370g (without cord)
Compliance

Outline

LED hand held spot lamp with cable and plug. All dimensions in mm.

Adaptor. All dimensions in mm.

Light Output

Beam Pattern: 1520LED Long Range.

Beam Pattern: 1521LED Medium Range. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
