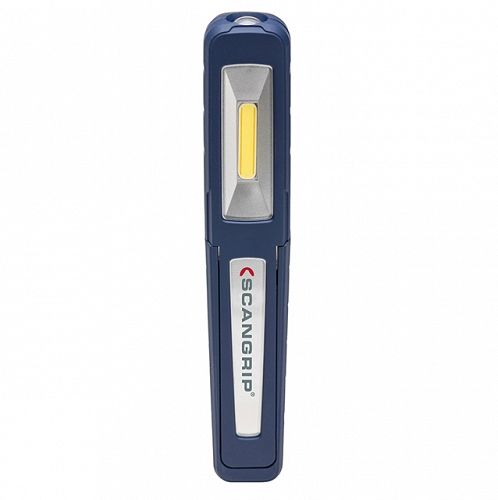

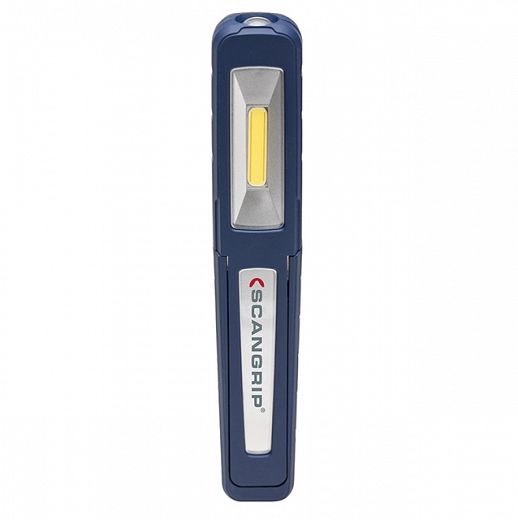

SCANGRIP® Unipen LED Inspection Lamp

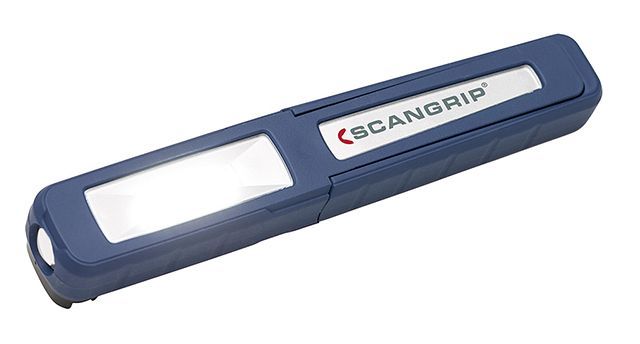

SCANGRIP's popular Unipen mini inspection lamp provides brighter light with completely uniform illumination.

A second high power LED on the end also provides a handy pencil flash light where concentrated light is needed. That is two indispensable torches in one!

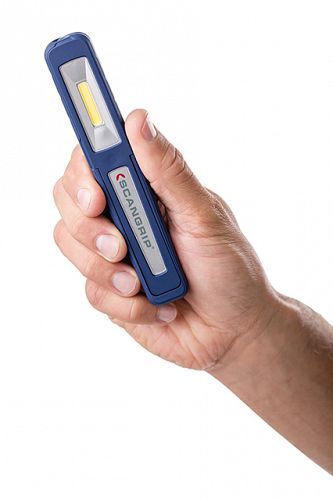

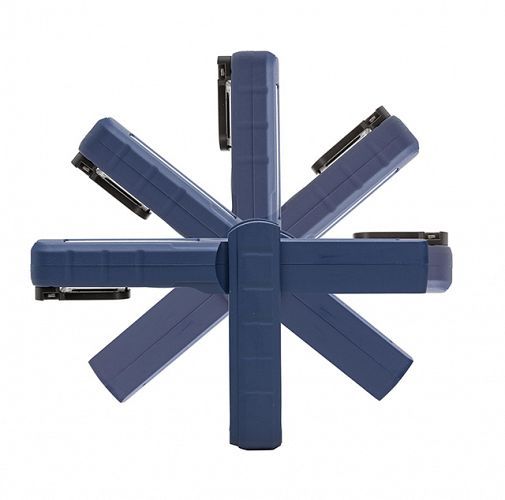

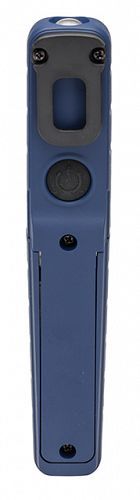

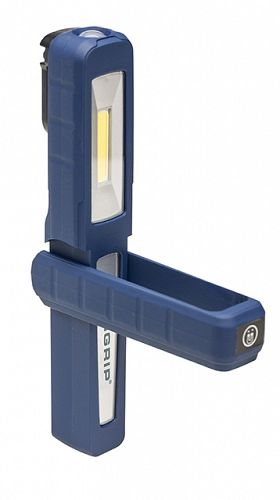

The small and handy shape of the Unipen makes it perfect to always have ‘on hand’. A strong built-in magnet, pocket clip and flexible lamp body means the lamp can be positioned in a variety of settings to free your hands.

The Unipen is charged via a USB-cable.

This lamp replaces 2XM 910 602-011 LED Inspection Lamp - Unipen.

• Two torches in one
• Increased light output

• Strong built-in magnet
• Natural light – colour similar to daylight
• Impact and shock resistant
• Charging via USB

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Battery Powered

Strong Built-in Magnet

Built-in Magnet

Strong Built-in Magnet

2 Year Warranty

Options

SCANGRIP Unipen

PART NO: 035420
Legacy PN: 2XM 530 302-233

Specifications

Light Output

Main: 75/150 lumen for up to 4/2 hours.
Spot (top) 75 lumen for up to 2 hours.

Light Performance

Main: 125/250 lux @ 0.5m
Spot (top) 900 lux @ 0.5m

Temperature Range

-10° to +40°C

Protection

IP 65 (Protection against dust and water jets)

Dimensions

155mm x 27mm x 21mm

Battery

3.7V/750 mAh Li-ion rechargeable.
2.5 hour charging time via USB.

Compliance

CE

Note

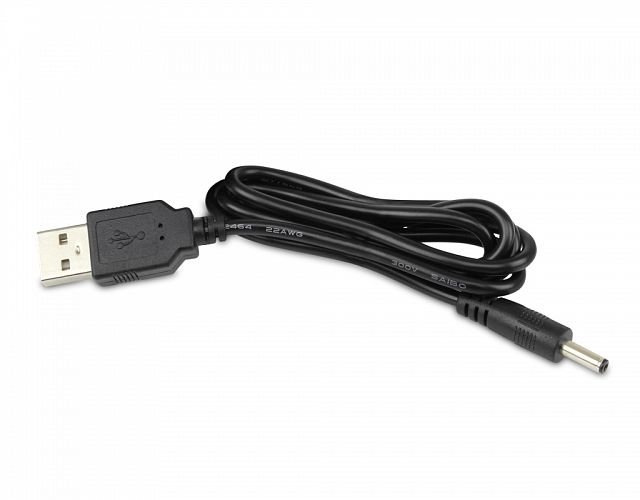

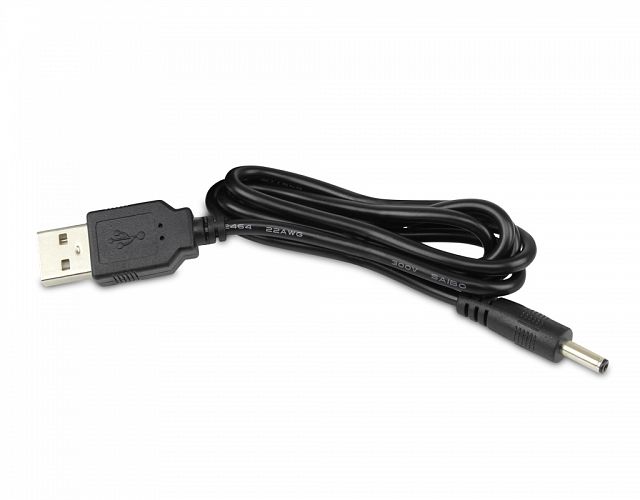

Includes 1m USB cable. Note charger is not included.
