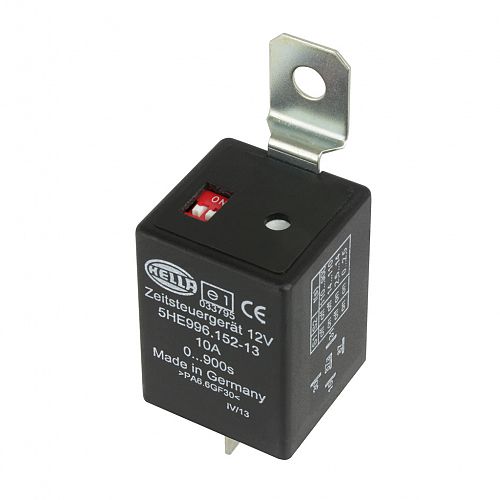

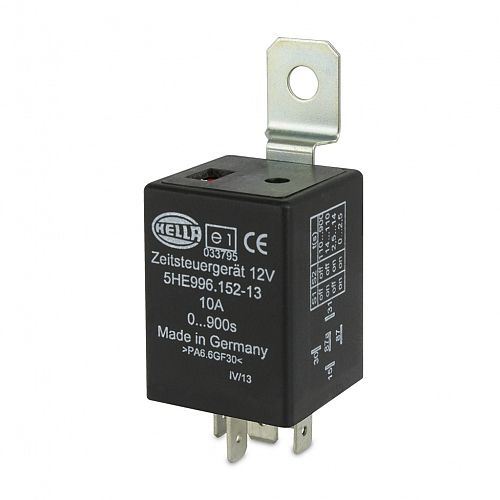

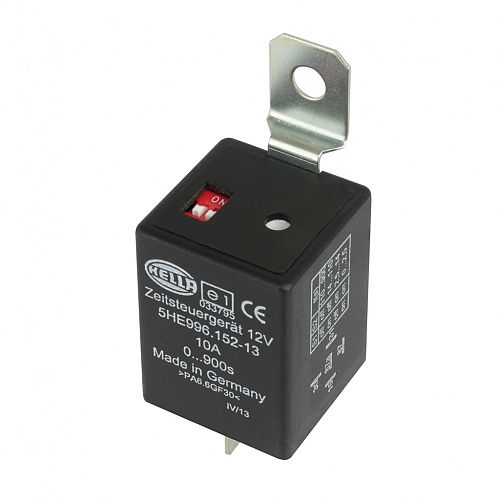

24V 5 Pin Time Control Unit with Drop-out Delay - 20/10A

Relay with manually adjustable drop-out delay function, 0 – 900 seconds.

Trust in our Quality Relays

Production expertise: HELLA produces more than 100 million relays per year. Thanks to optimised production we can offer a competitive price for customers. HELLA relays have an extremely low failure rate.

OEM customers: HELLA develops and produces relays for AGCO, Claas, Daimler AG, Ford, VW, GM, JCB, Opel, Nissan, John Deere, Chrysler and Jaguar/Land Rover among others. We have been working with many customers for decades.

To find a HELLA reseller near you, click here.



Rollover/tap the icons below for further details:

Options

24V 5 Pin Time Control Unit with Drop-out Delay - 20/10A

24V 5 Pin Time Control Unit with Drop-out Delay - 20/10A

3086-24V

Specifications

Voltage

24V

Pins

5 Pin

Function

Change-over

Maximum Load

Contact opened 10A
Contact closed 20A/30min

Bracket

Yes

Protection

IP 50 (Protection against dust)

Note

Relay with manually adjustable drop-out delay function, 0 – 900 seconds.
Applying +ve power to terminal 15 will close the n/o relay contacts.
Disconnecting +ve power from terminal 15 will then activate the timer feature, relay contacts 30 & 87 opening following the pre-adjusted time 0 – 900 seconds.
+ve to terminal 30 is required for timer operation, removing will cancel timer sequence and open contacts 30 & 87.

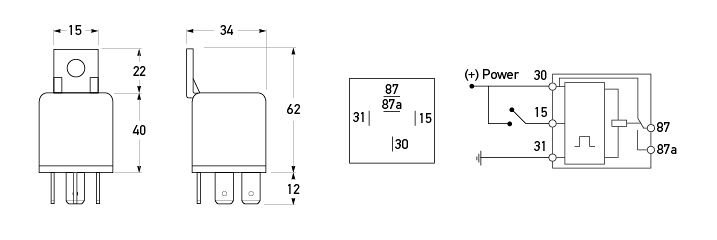

Outline

All dimensions in mm.
All dimensions in mm.

Top
