HELLA

Dual Function Safety DayLights™ Controller

Specially designed dual function controller to turn HELLA Safety DayLights™ into front position lamps at night.

The controller is connected and activated by the headlamp of the vehicle and reduces the current to the Safety DayLights™ thus turning them into road legal* front position lamps.

Only one controller is required for a pair of HELLA Safety DayLights™

*Please note: Legally required spacing of front position lamps and only one pair of front position lamps is legally permitted.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Made in New Zealand

Options

Dual Function Safety DayLights™ Controller - 12 Volt

PART NO: 5DF 980 816-041
Legacy PN: 9563003

Specifications

To Suit

Controller Safety DayLights™
P/N 9.5630.03 P/Ns 1009, 5619, 5630, 5631
P/N 9.5636.03 P/N 5636
P/N 9.5630.04 P/Ns 1009-24V, 5619-24V, 5630-24V, 5631-24V
P/N 9.5636.04 P/N 5636-24V

Wiring Specifications

Terminal Number Connect to
30 Ignition (+)
85 Earth return (-)
86 Front position or headlamps (+)
87A Safety DayLights™ (+)

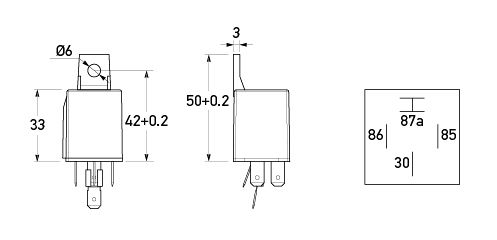

Outline

All dimensions in mm.
All dimensions in mm.
