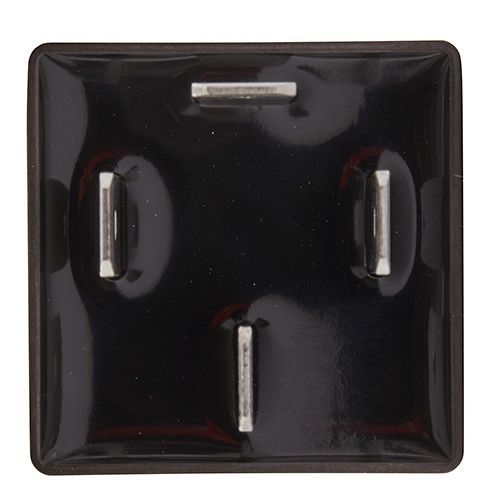

12V 4 Pin Solid State Relay - 22A

Solid-state relays are modern semi‑conductor switches. Satisfies the increasing trend of controlling loads (e.g. fan motors, glow plugs, headlamp and heaters) with power regulation.

 FEATURES
- Suitable for resistive loads, lamp loads and inductive loads.
- Pulse width modulation allows regulation of the power for the loads.
- Maximum switching reliability, particularly suited for switching functions relevant for safety.
- Silent switching, e.g. in passenger compartment.
- Resistant to short-circuit and overload.
- Protection against polarity reversal and earth disconnection.
- Shock and vibration-resistant.
- Water-proof, potted design.
- Protection against overheating.
- Low quiescent current.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

12V 4 Pin Solid State Relay - 22A

12V 4 Pin Solid State Relay - 22A

3063

Specifications

Voltage

12V

Pins

4 Pin

Maximum Load

22A @ 12V

Protection

IP 67 (Protection against dust and temporary water immersion)

Bracket

No

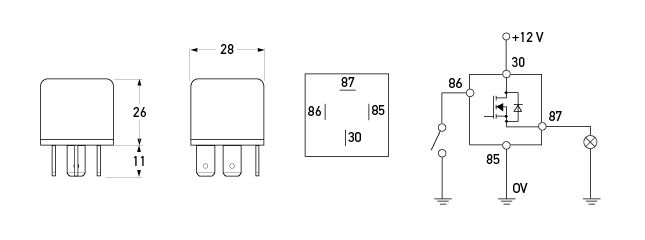

Outline

All dimensions in mm.
All dimensions in mm.
