DuraLED® Reversing Lamp - Horizontal Mount

The now iconic DuraLED® range revolutionised safety of the New Zealand and Australian transport fleets. First conceived and field trialled by HELLA New Zealand in 1998, our radical pursuit to create a range of ‘Fit and Forget’, highly visible LED Marker and Signal Lamps, permanently lowered the cost of ownership for our fleets and made our roads safer.
‘Fit & Forget’ by Design is a HELLA no compromise philosophy and commitment to design for long-term durability and safety. Products that carry the DuraLED® name will outlast the life of the vehicle.
Whilst keeping its design heritage and appearance the DuraLED® range has been continuously upgraded to the latest material and electronic component technology.

Suitable for trucks, buses, caravans and trailers

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

To find a HELLA reseller near you, click here.

    DuraLED® Lifetime Warranty
All HELLA DuraLED® products carry a Lifetime Warranty.
Note: Lifetime means the economic life of the vehicle these products were first installed on.





Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Made in New Zealand

Options

DuraLED<sup>®</sup> Reversing Lamp - Horizontal Mount

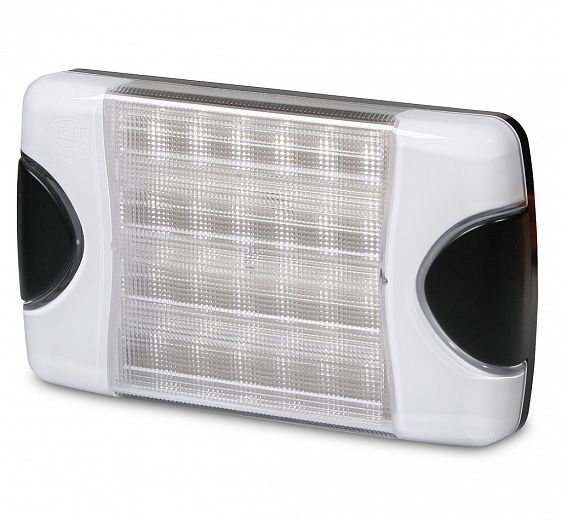

DuraLED® Reversing Lamp - Horizontal Mount

1430-H
DuraLED<sup>®</sup> Reversing Lamp - Horizontal Mount - Blister pack

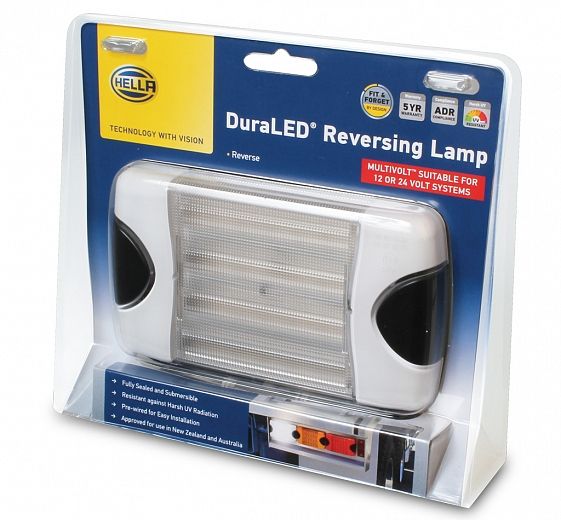

DuraLED® Reversing Lamp - Horizontal Mount - Blister pack

1430-HBL

Specifications

Mounting

Two hole surface mount with mounting bushes supplied.
Suitable for horizontal mounting.

Voltage

Multivolt for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

4W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS).
IP 6K6 (Protection against dust and high pressure water jets)
IP 6K7 (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Compliance

ADR 1/00 E24 5850 ECE R23/00

Notes

Reversing lamps are not designed for continuous operation.

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  1430-H 1430-V - Instruction Sheet.pdf 305.44 KB
